Drive Belt: Service and Repair

REMOVAL

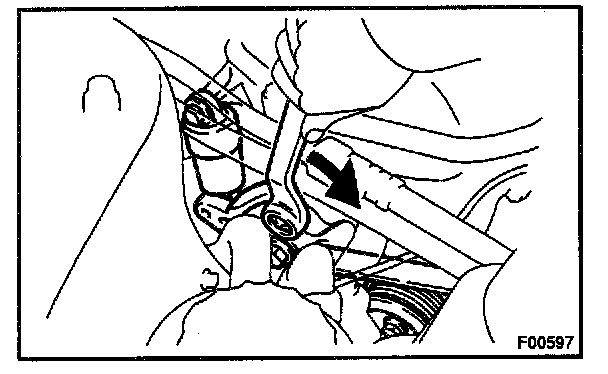

REMOVE DRIVE BELT
Loosen the drive belt tension by turning the drive belt tensioner clockwise, and remove the drive belt.

INSTALLATION

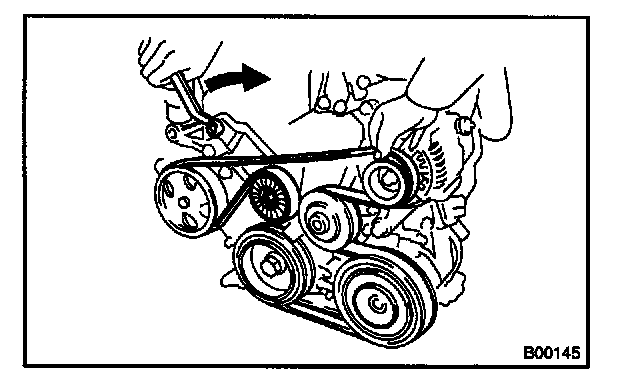

1. INSTALL DRIVE BELT
Turning the drive belt tensioner clockwise, and install the drive belt.

2. CHECK DRIVE BELT INSTALLING CONDITION
