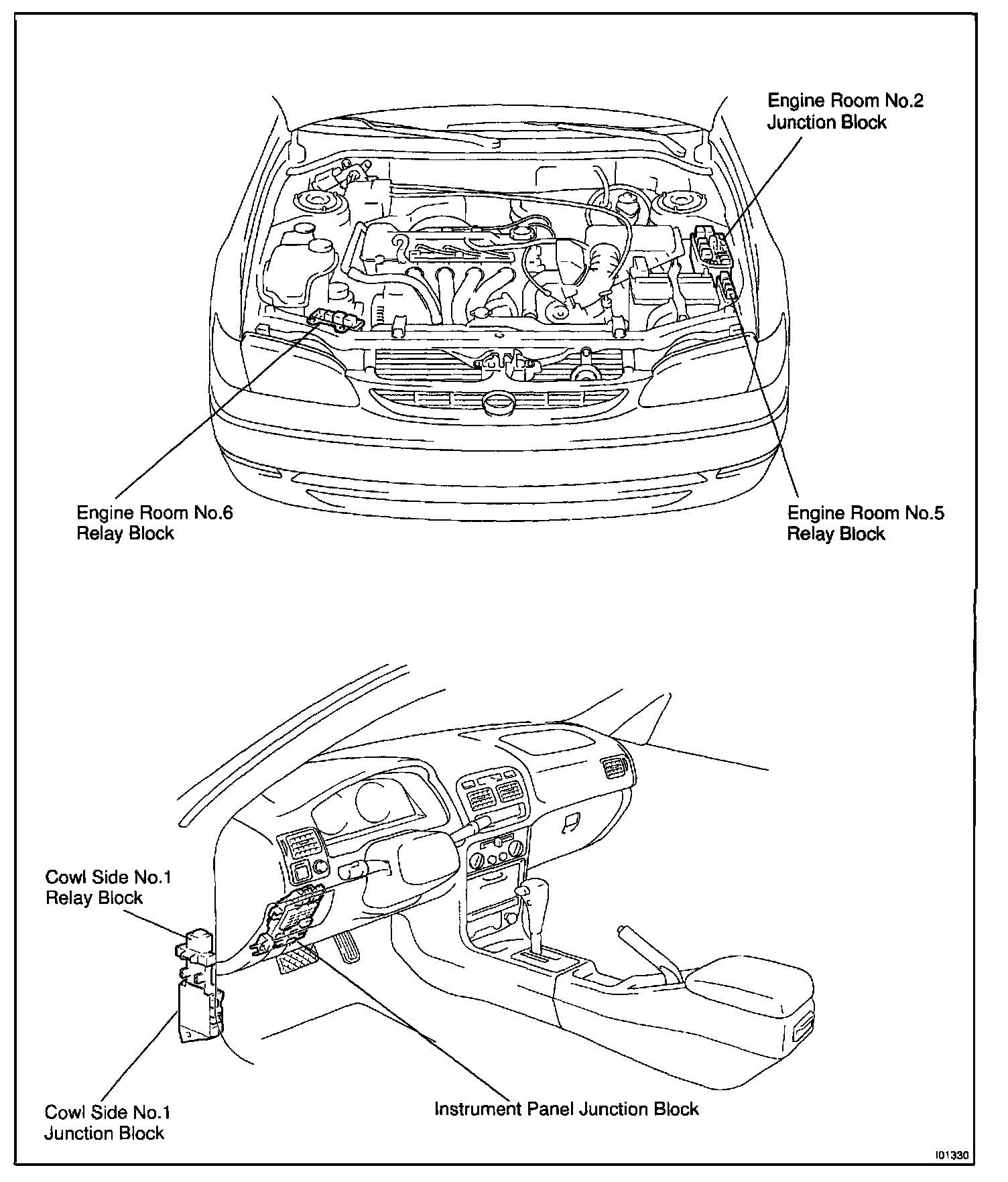

Component Locations

Power Source:

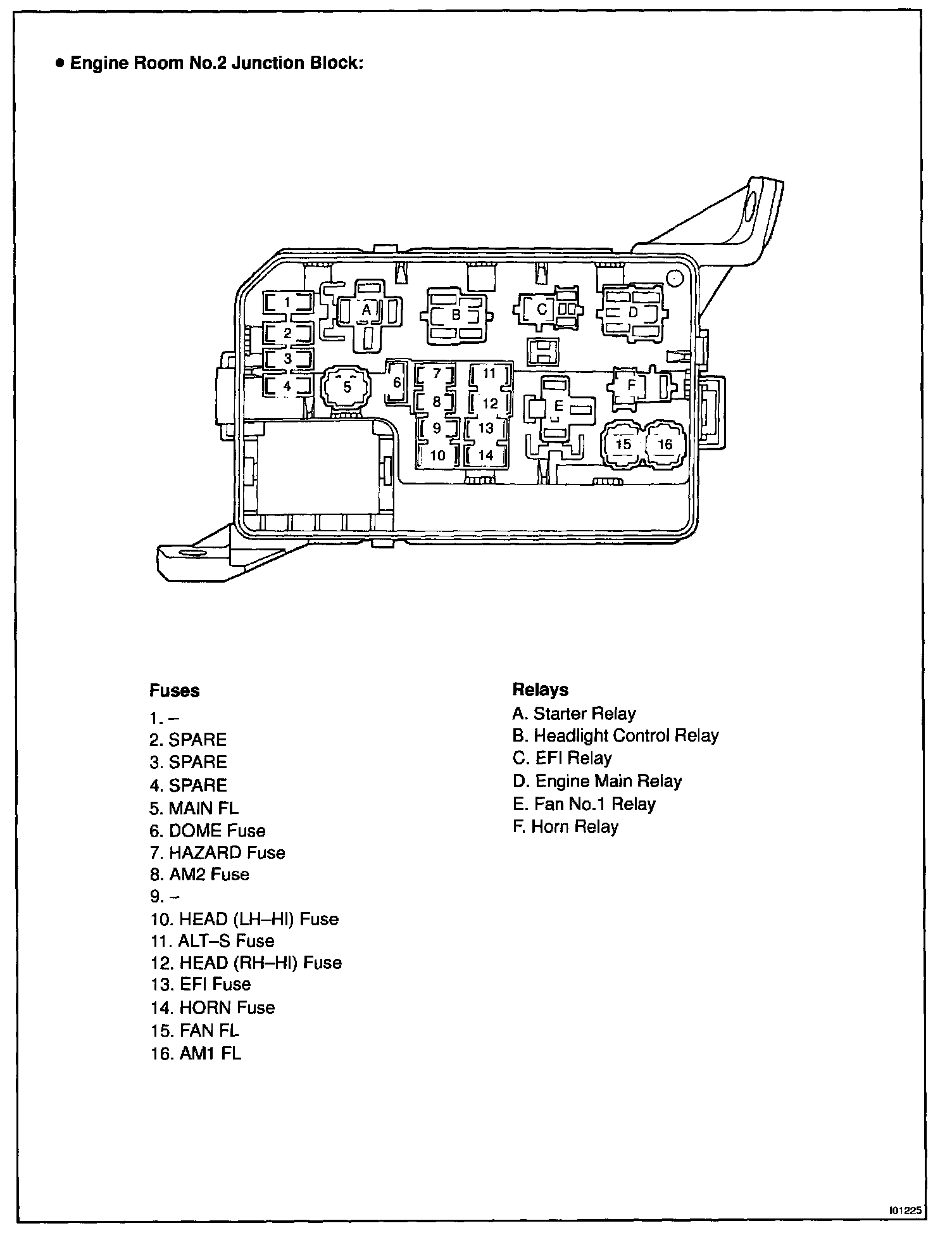

Engine Room No. 2 Junction Block:



Engine Room No. 5 Junction Block:

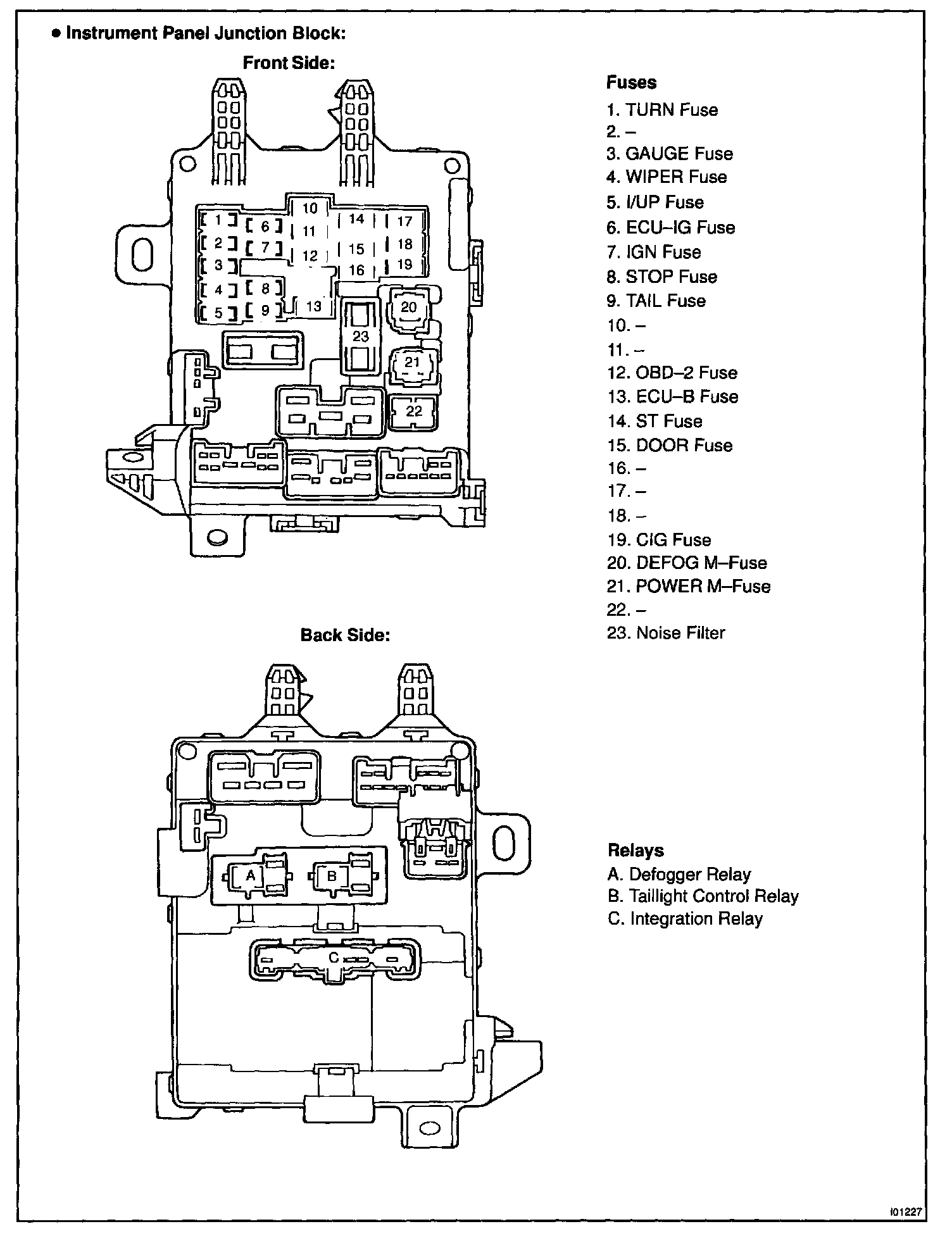

Instrument Panel Junction Block:



Cowl Side No. 1 Junction Block:
