Exterior Moulding / Trim
>>
System Diagram
System Diagram

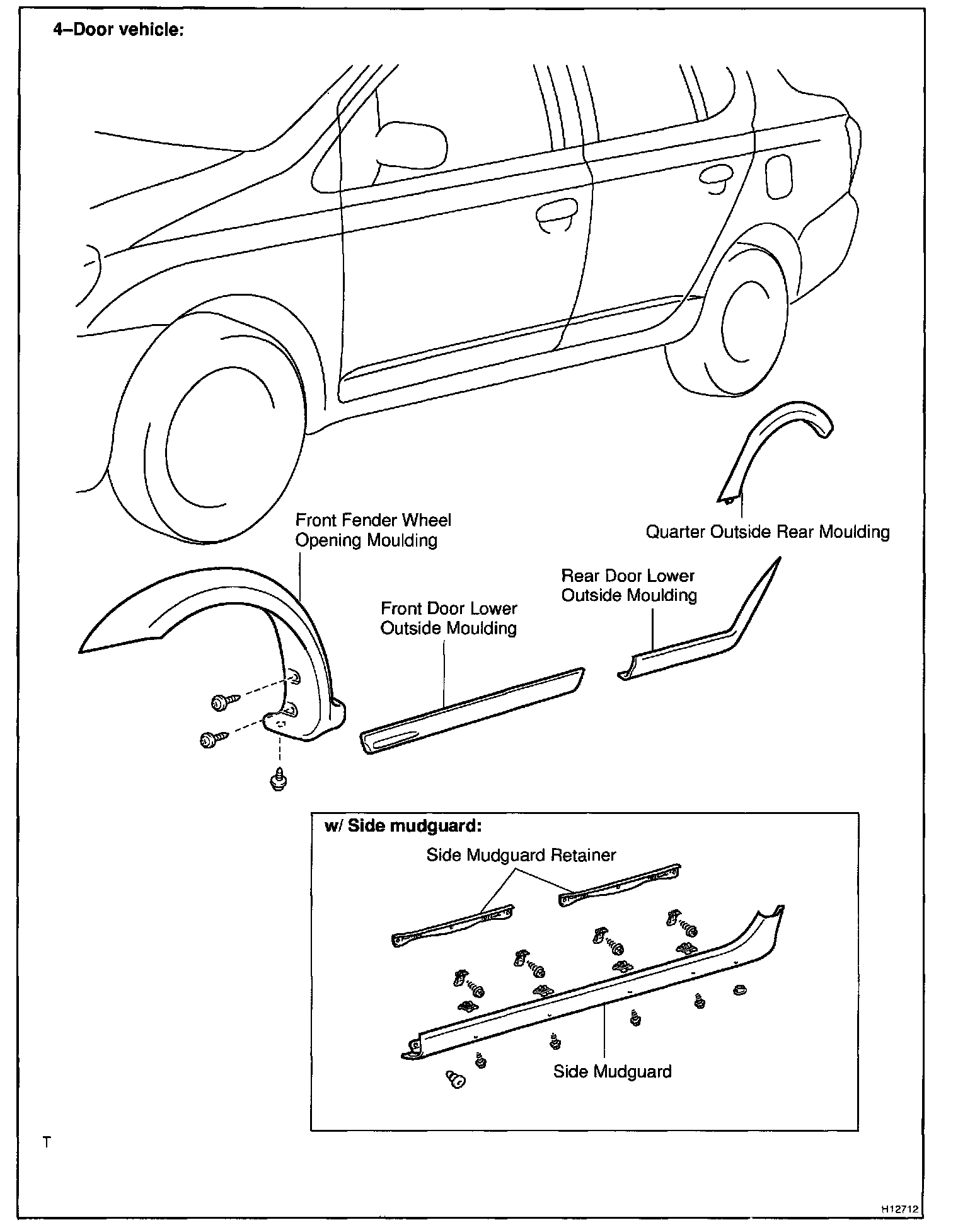

Body Outside Moulding:

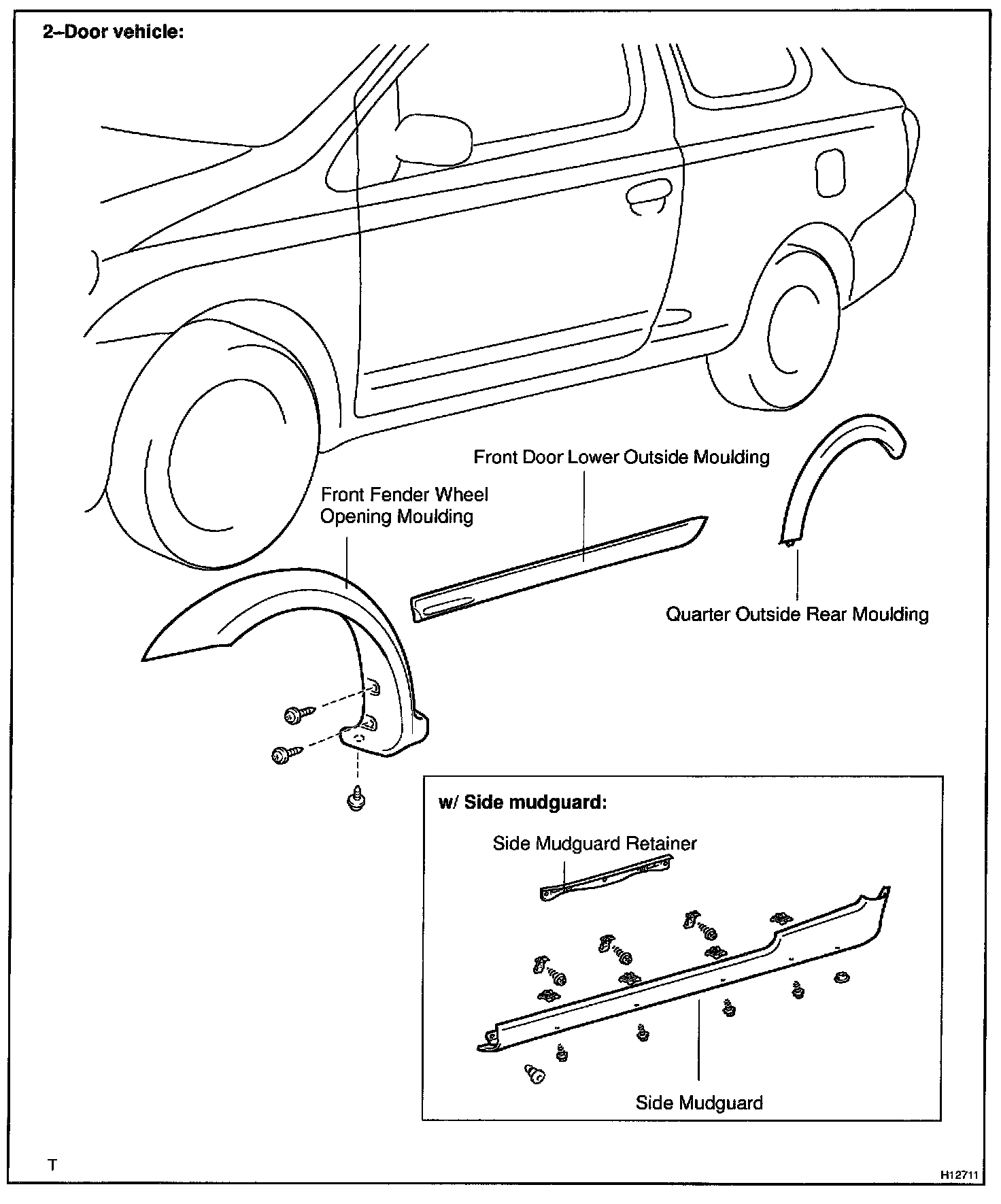

Body Outside Moulding:
