Throttle Body (M/T)

ON-VEHICLE INSPECTION

INSPECT THROTTLE POSITION SENSOR

a. Disconnect the sensor connector.

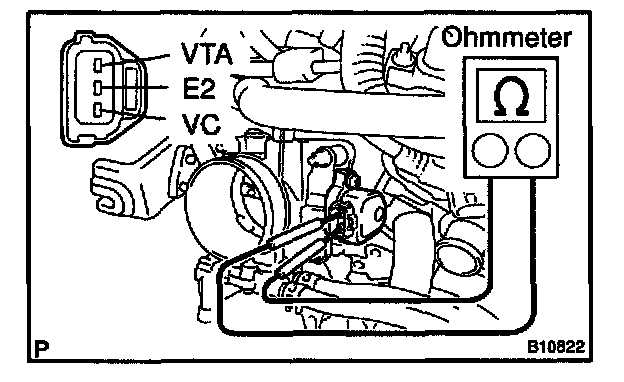

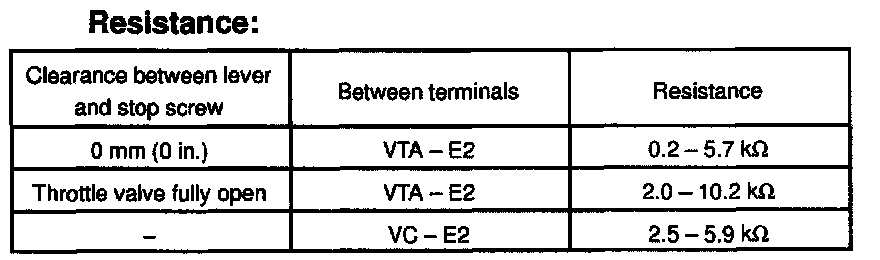

b. Using an ohmmeter, measure the resistance between the terminals.
c. Reconnect the sensor connector.
