Component Inspection
INSPECTION

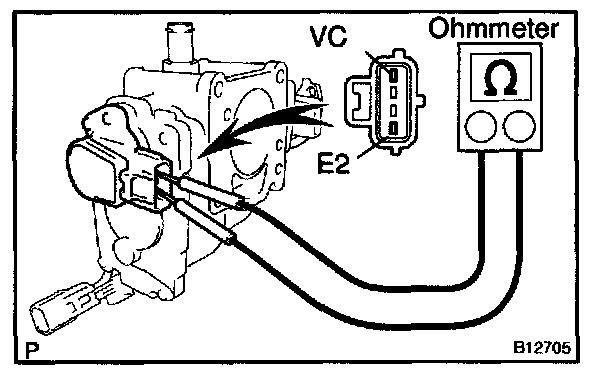

INSPECT THROTTLE POSITION SENSOR
Using an ohmmeter, measure the resistance between terminals VC and E2.
Resistance: 12 - 3.2 kohms at 20 °C (68 °F)
If the resistance is not as specified, replace the sensor.
INSPECT THROTTLE POSITION SENSOR
Using an ohmmeter, measure the resistance between terminals VC and E2.
Resistance: 12 - 3.2 kohms at 20 °C (68 °F)
If the resistance is not as specified, replace the sensor.
