Component Locations

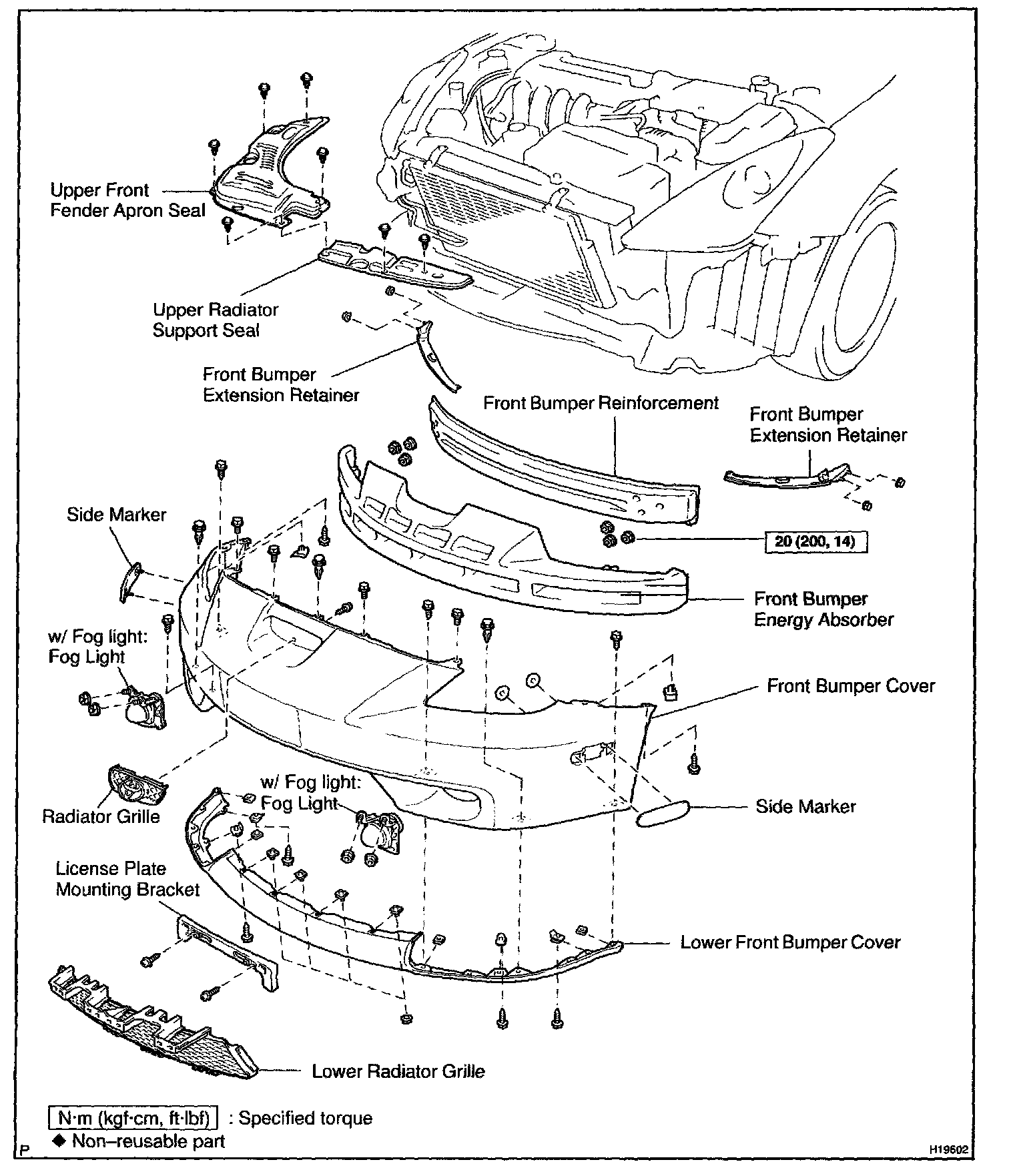

Front Bumper:

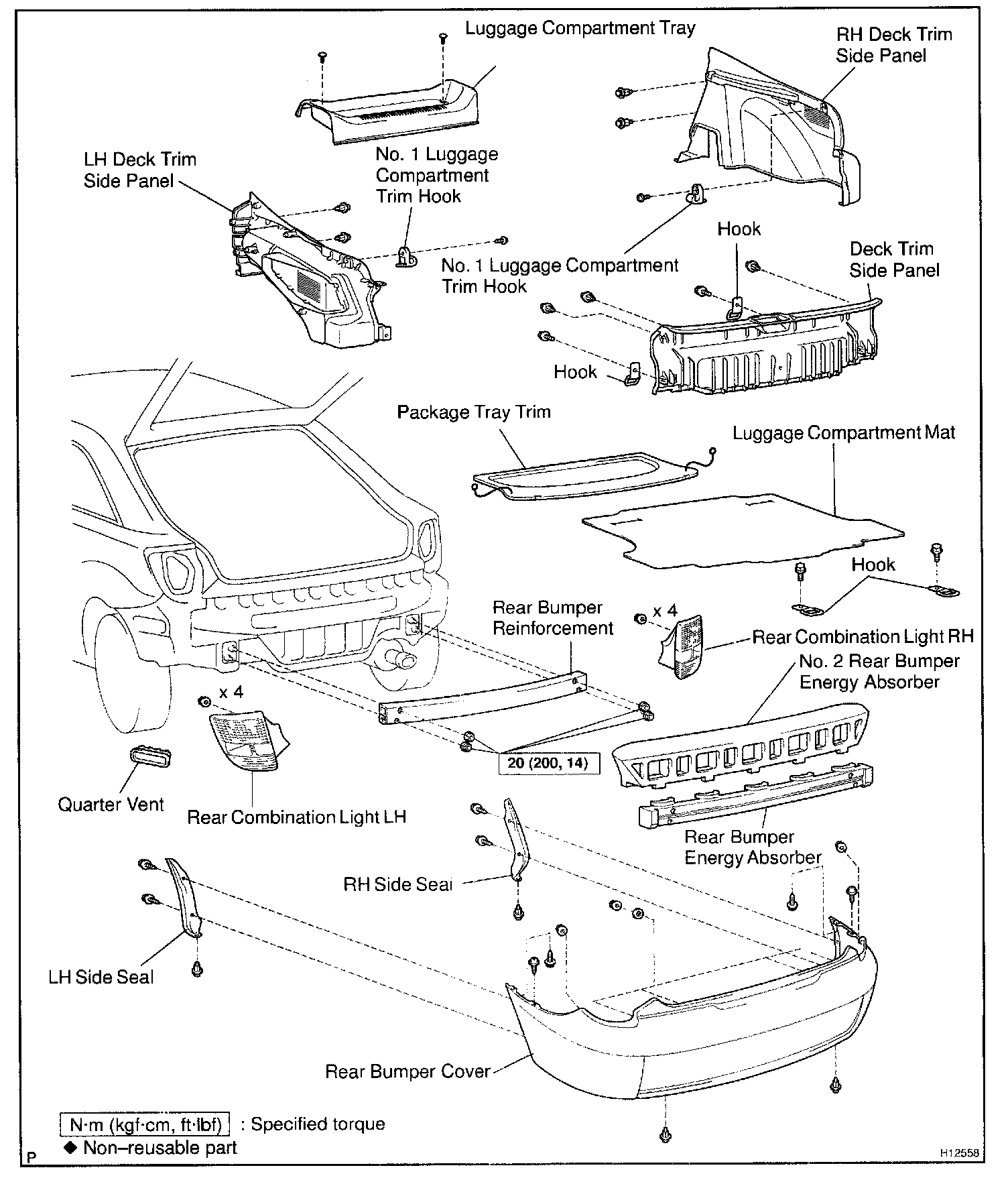

Rear Bumper:

Headlight:

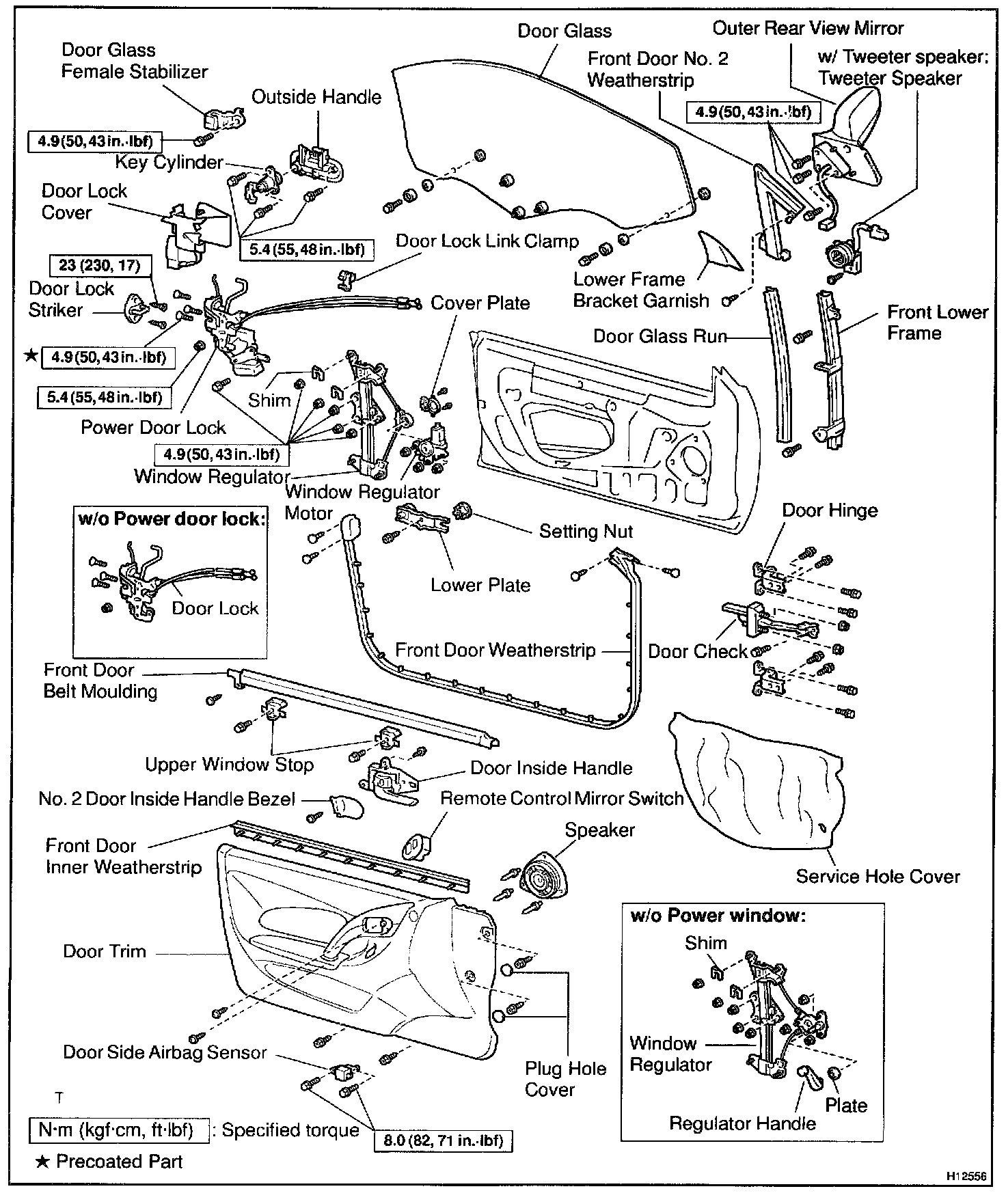

Front Door:

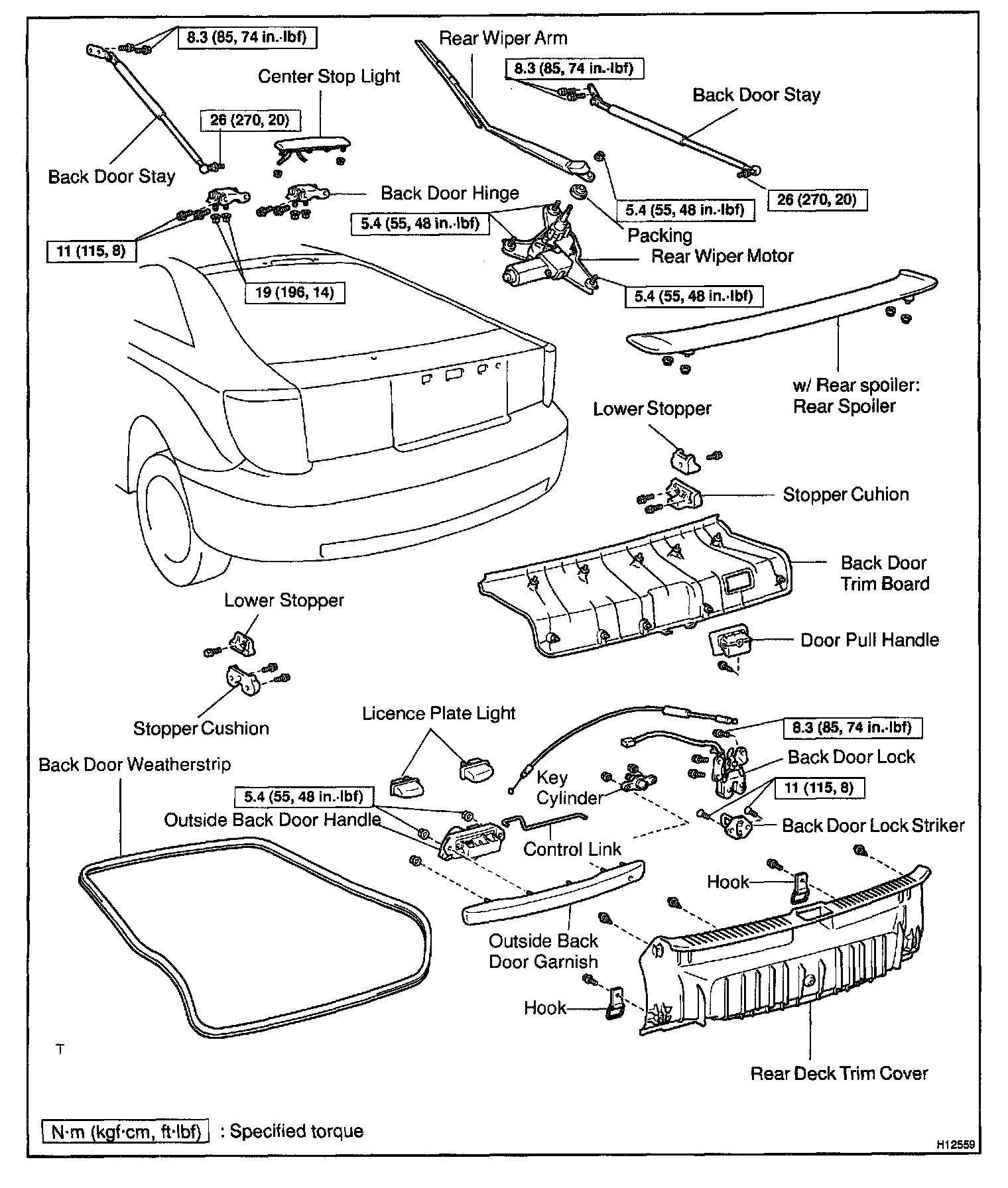

Back Door:

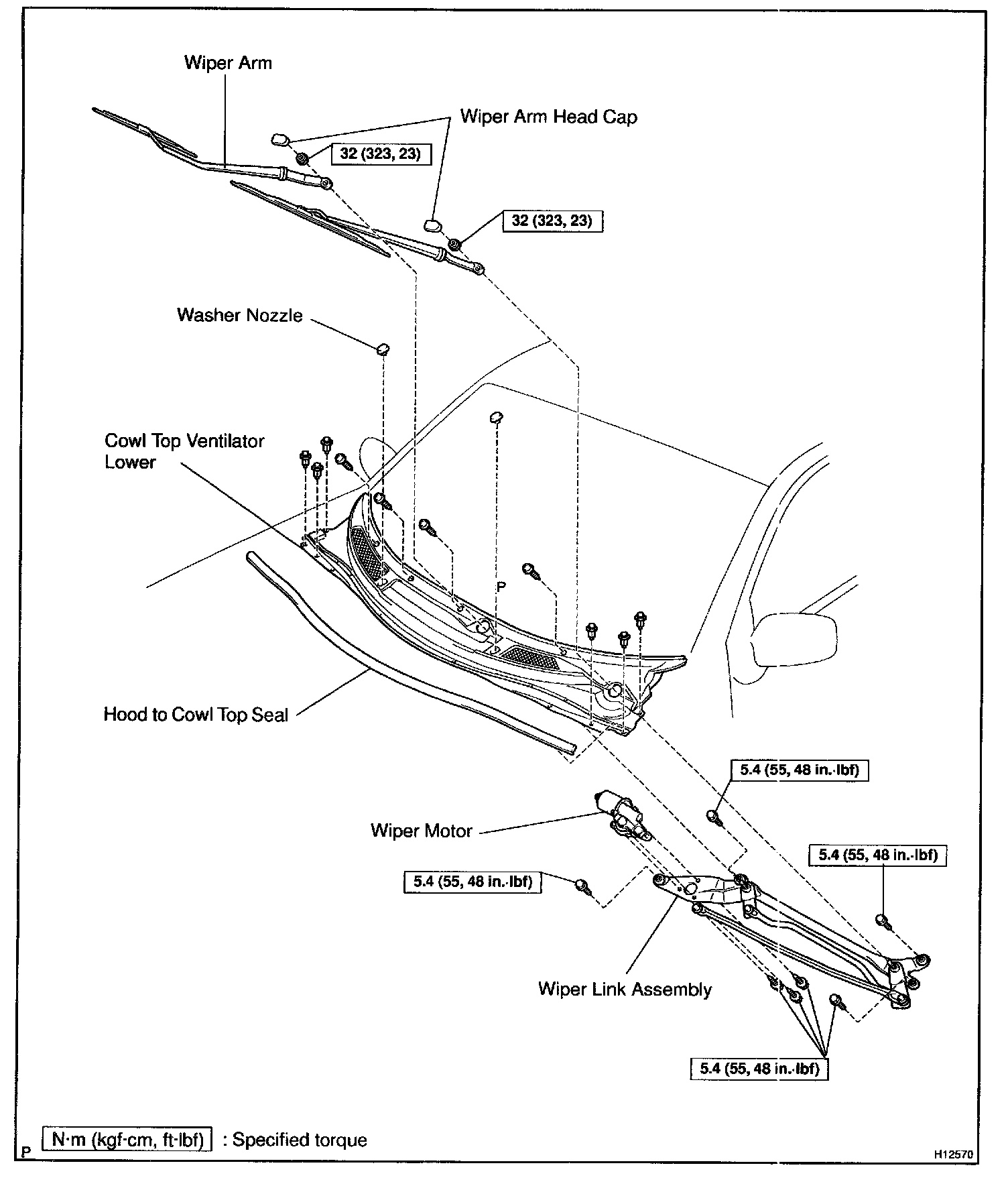

Front Wiper And Washer:

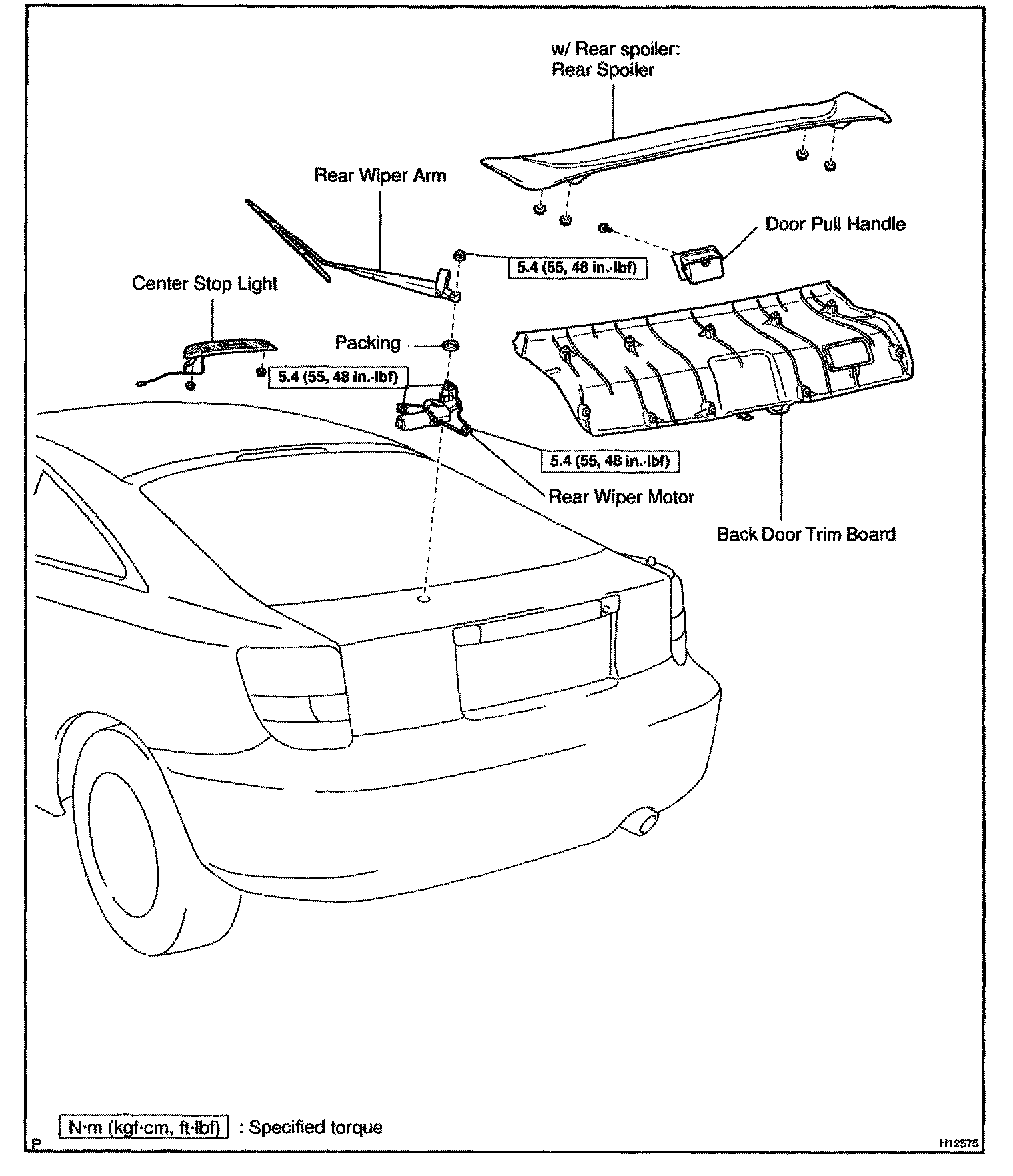

Rear Wiper And Washer:

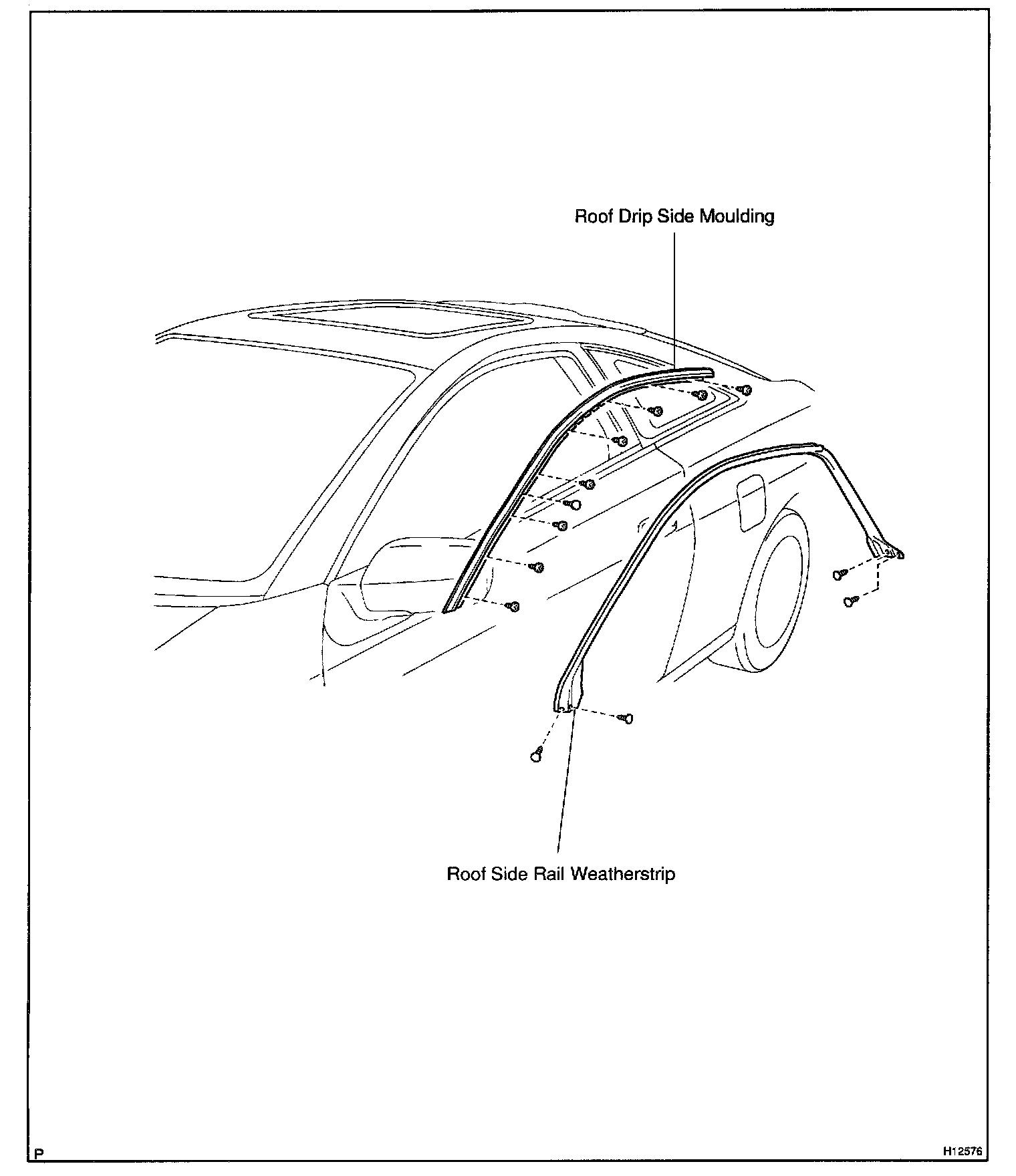

Roof Drip Side Moulding:

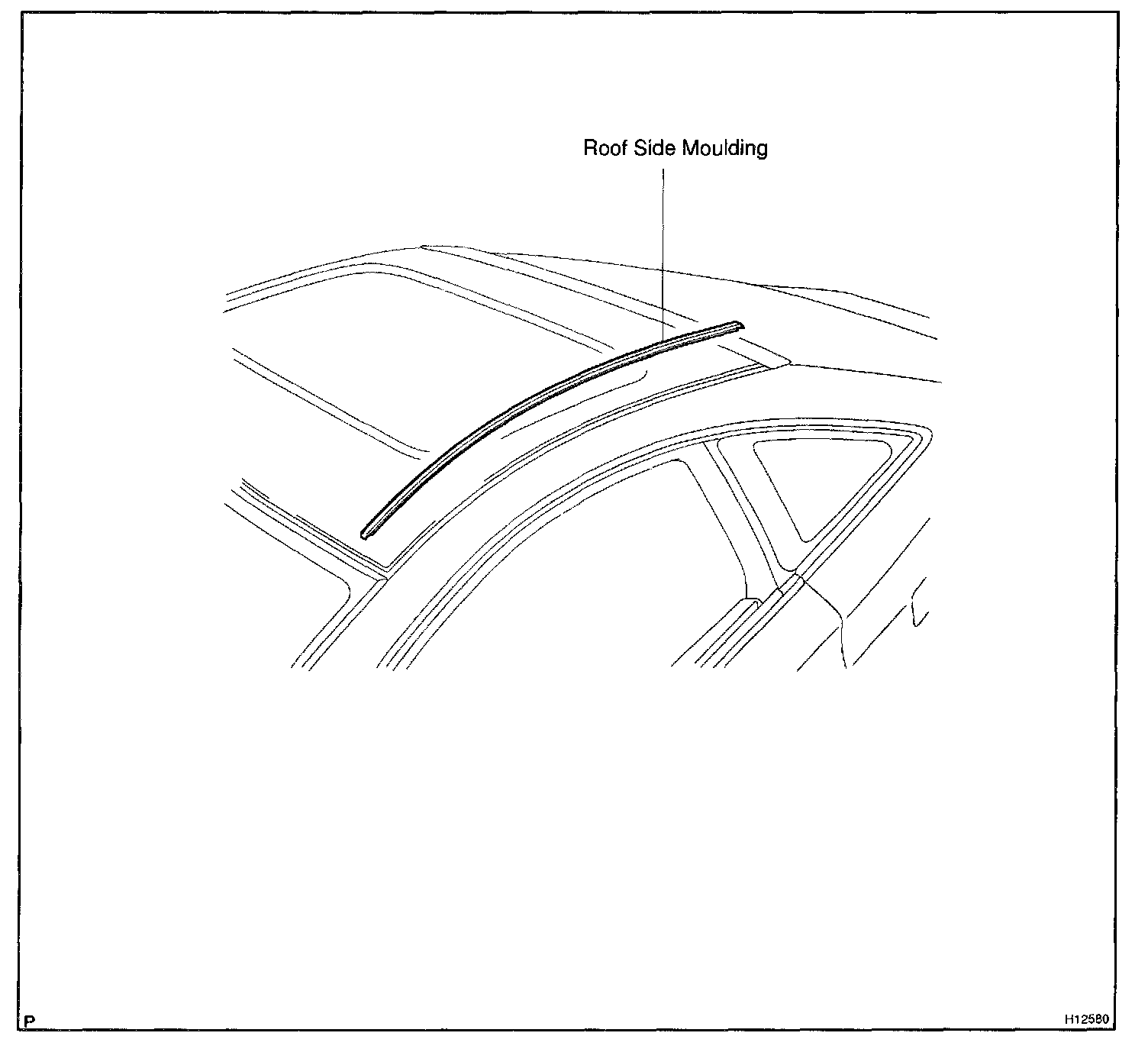

Roof Side Moulding:

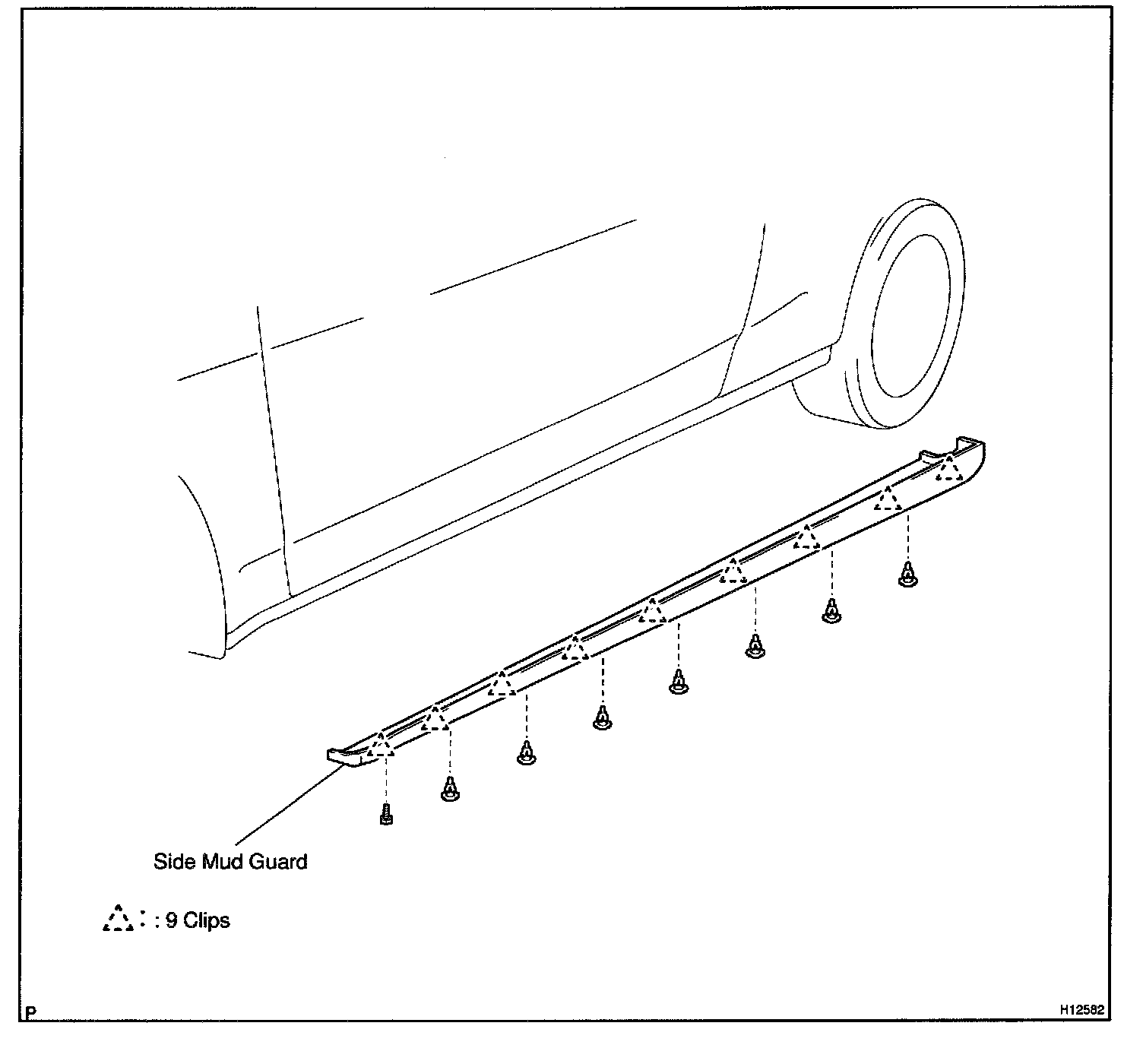

Side Mud Guard:

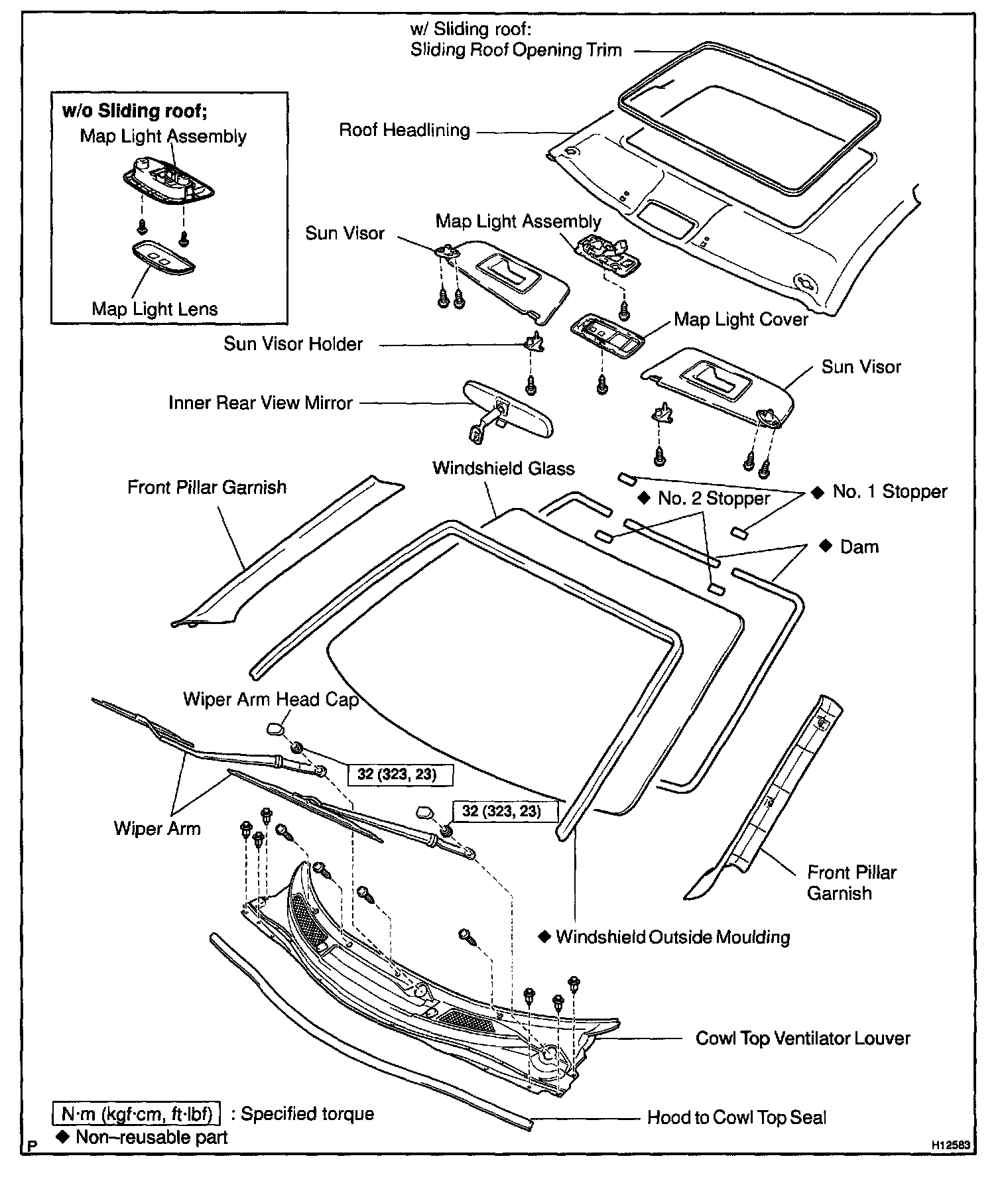

Windshield:

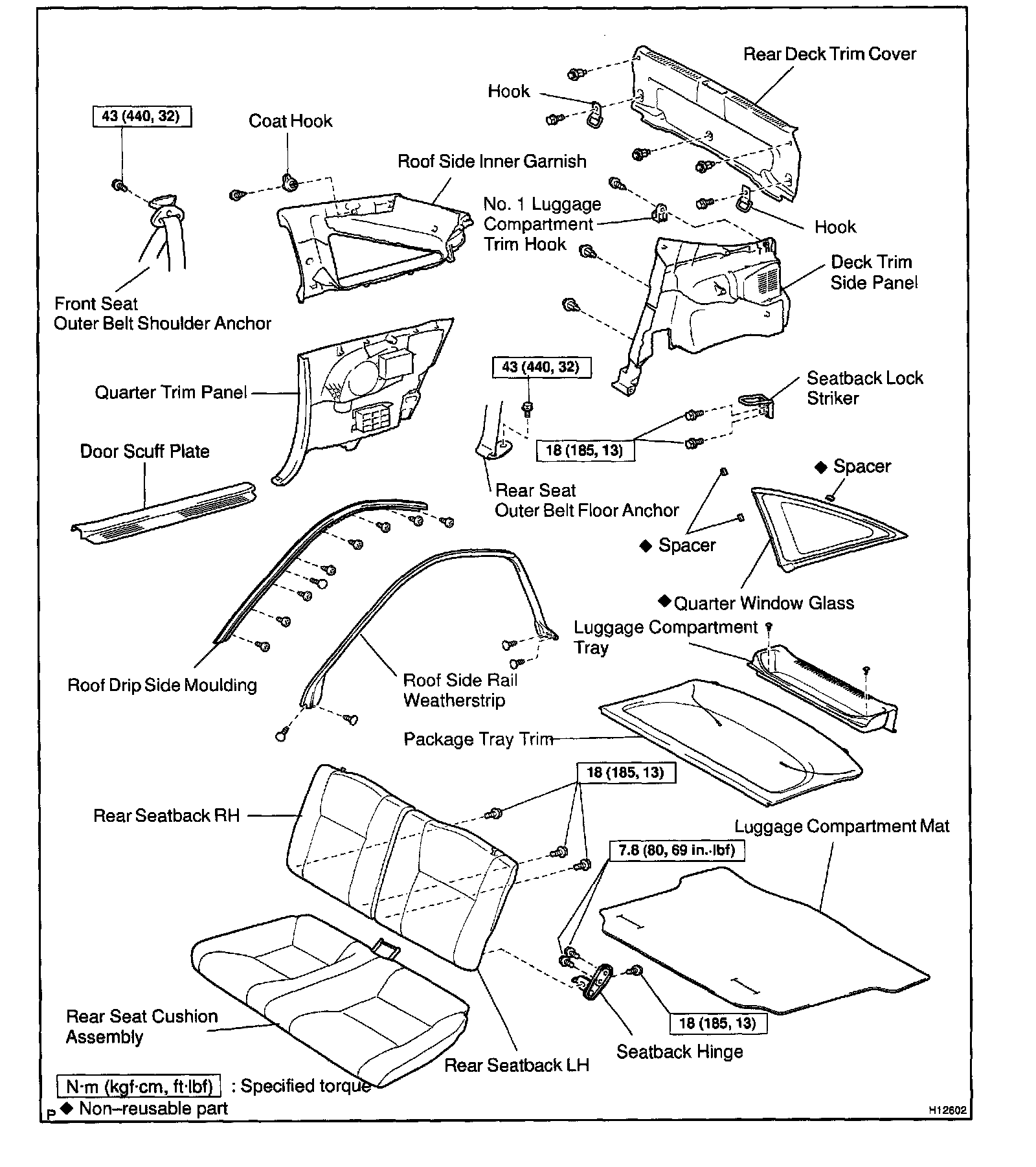

Quarter Window Glass:

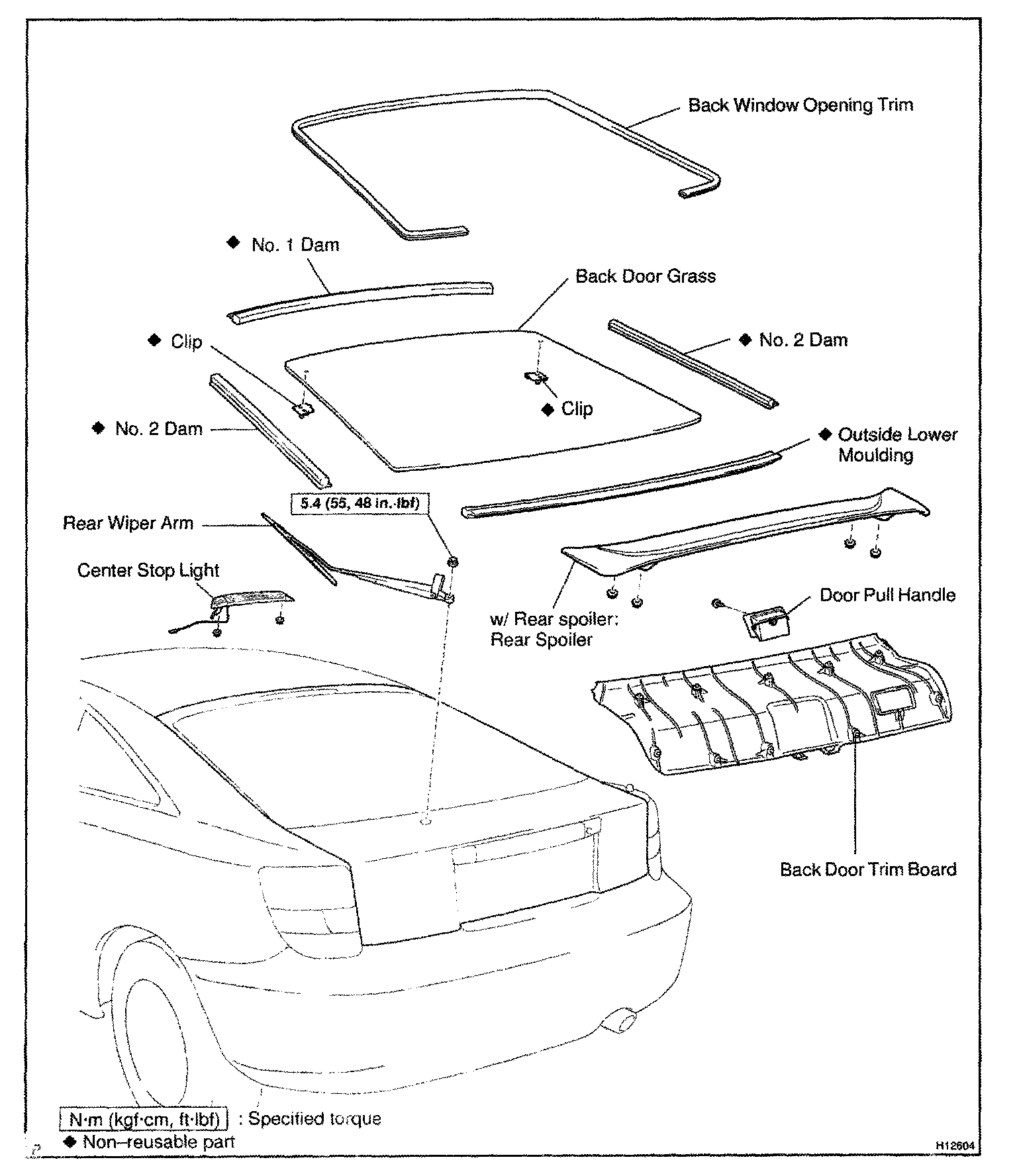

Back Door Glass:

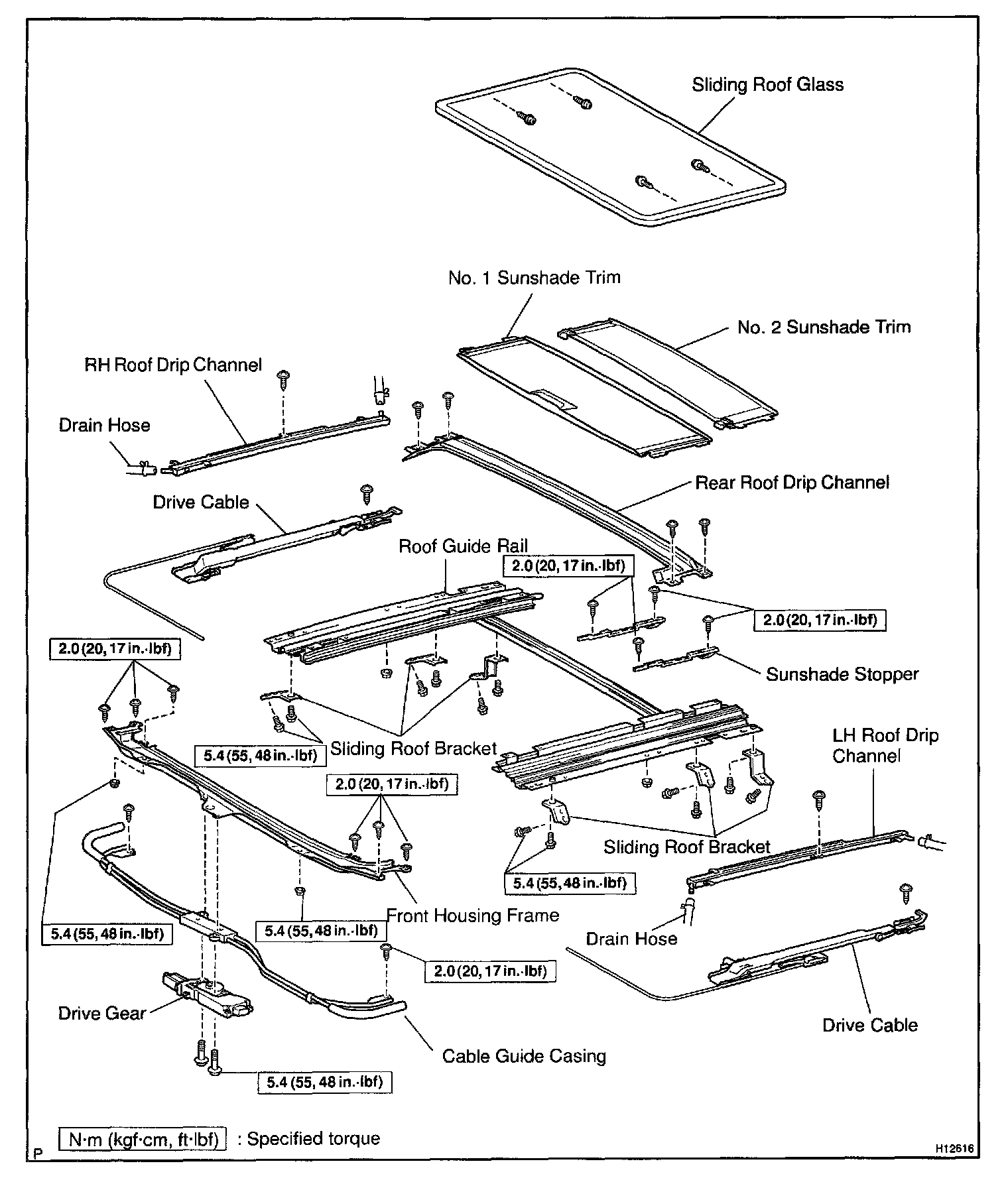

Sliding Roof:

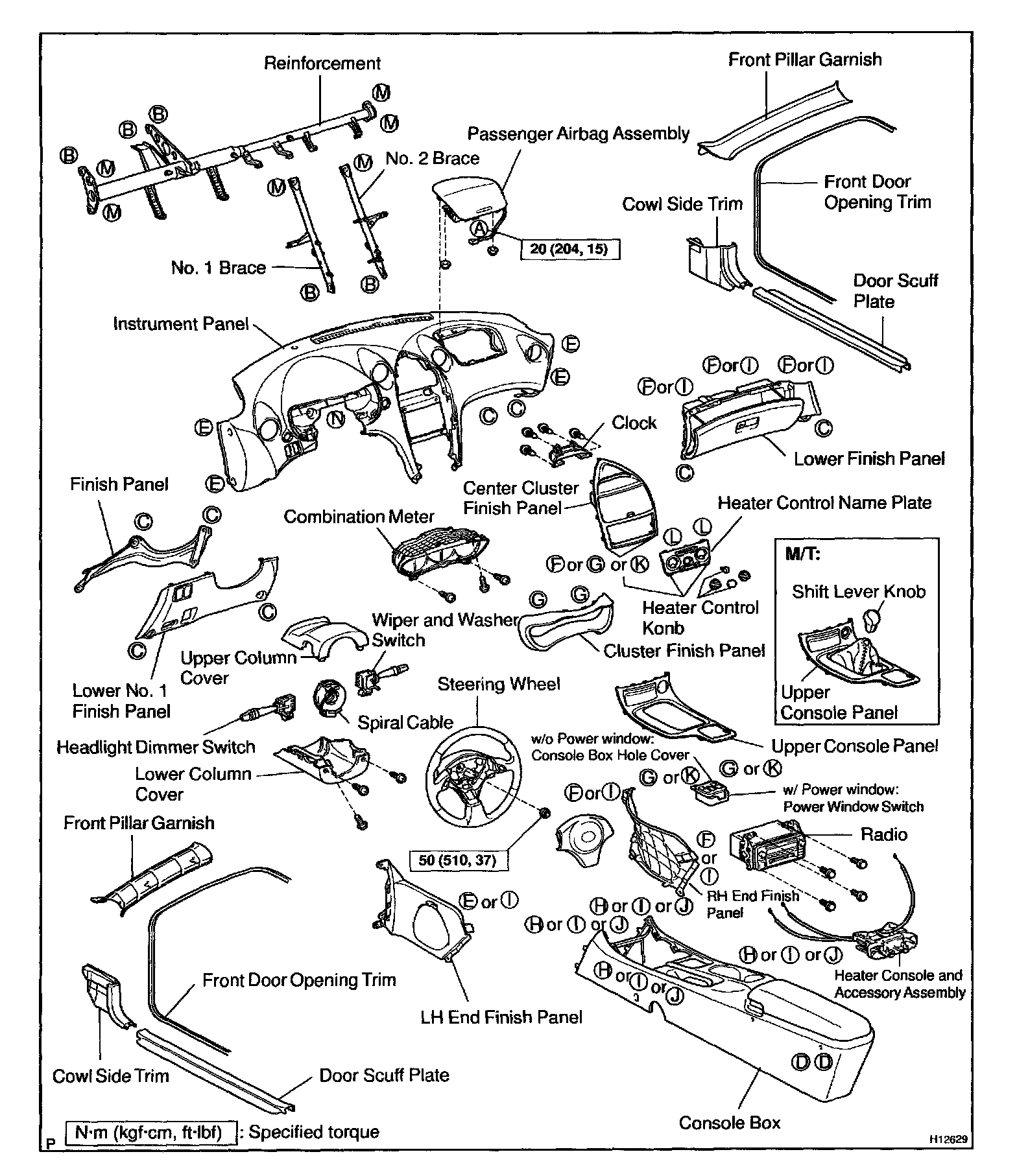

Instrument Panel Part 1:

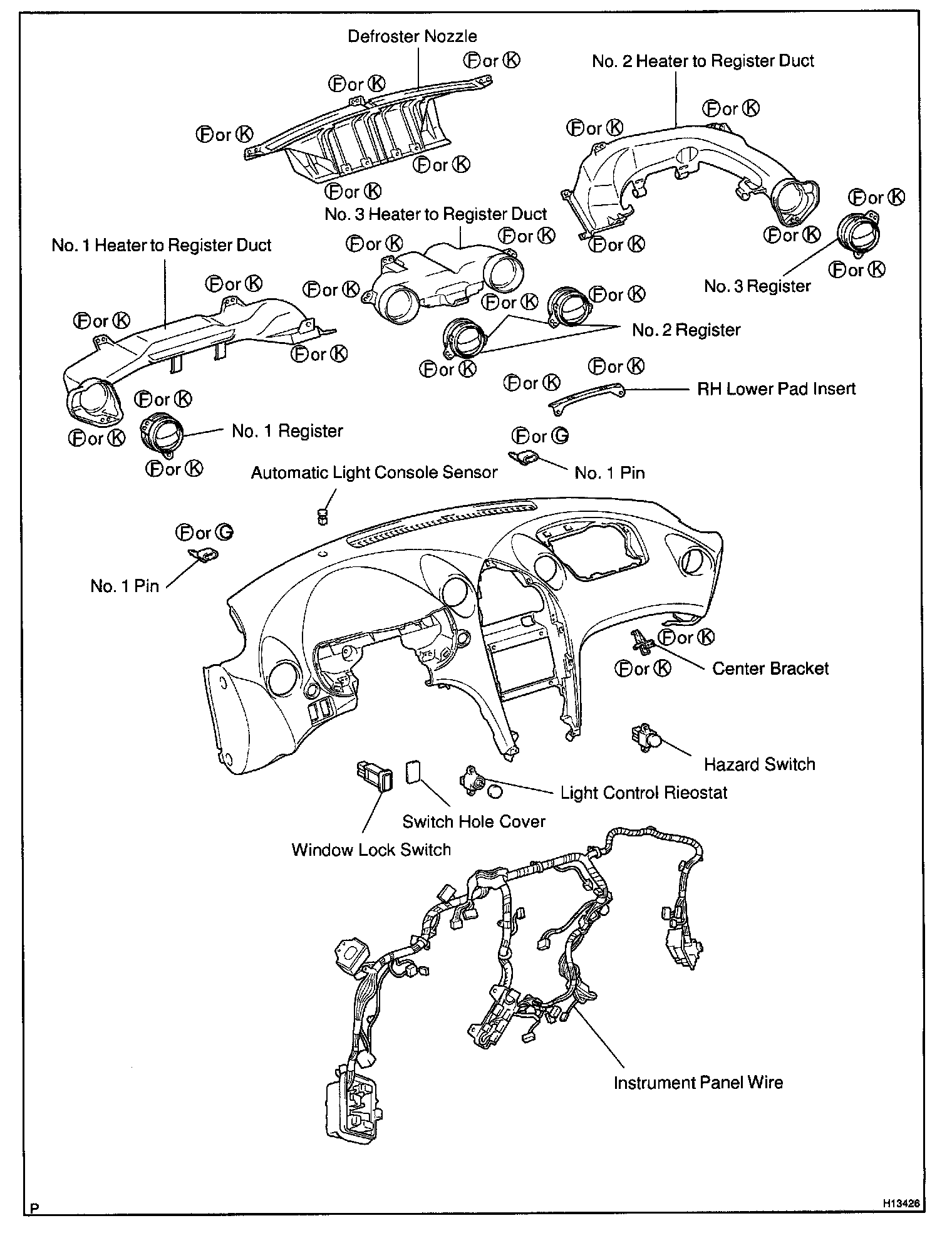

Instrument Panel Part 2:

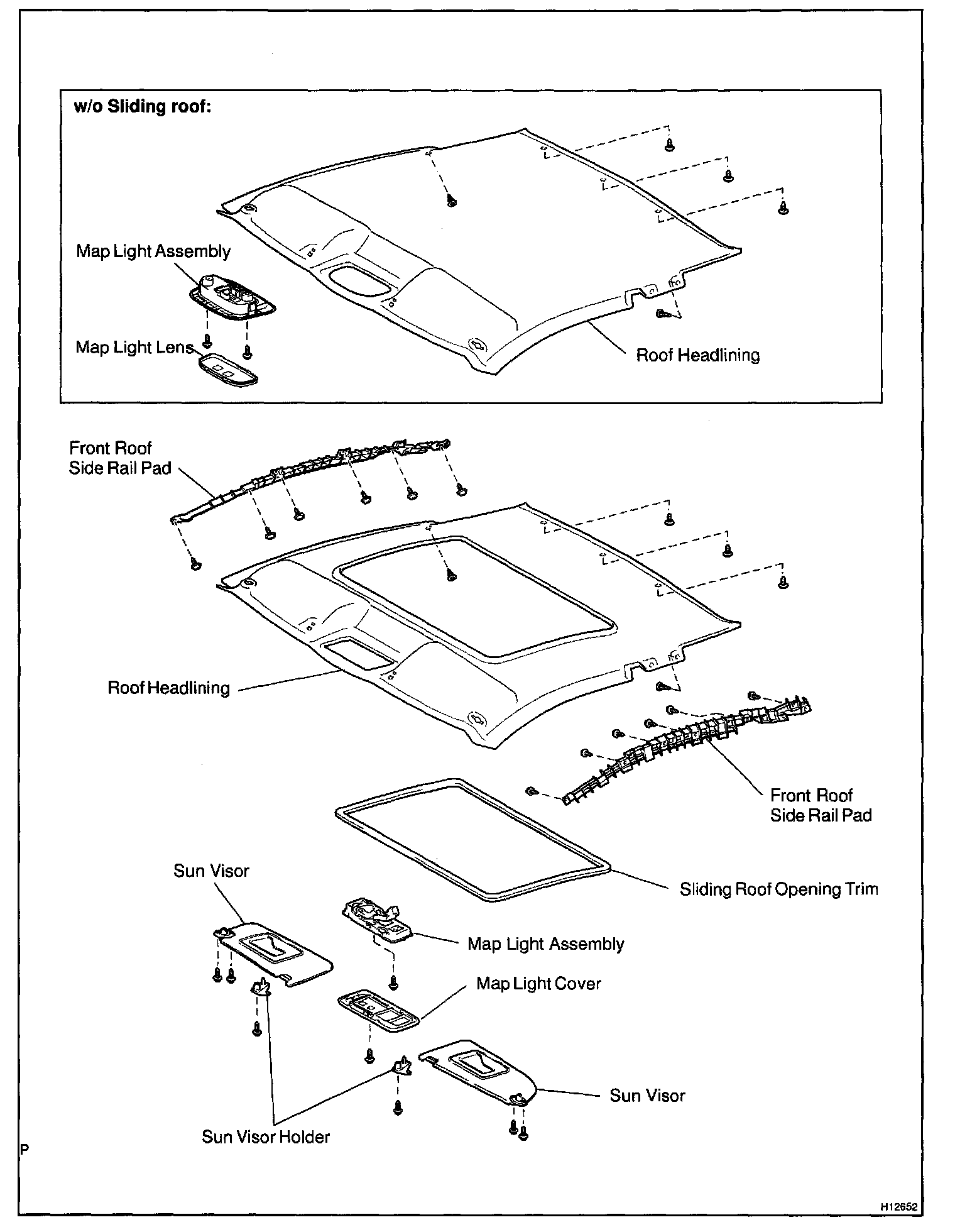

Roof Headlining Part 1:

Roof Headlining Part 2:

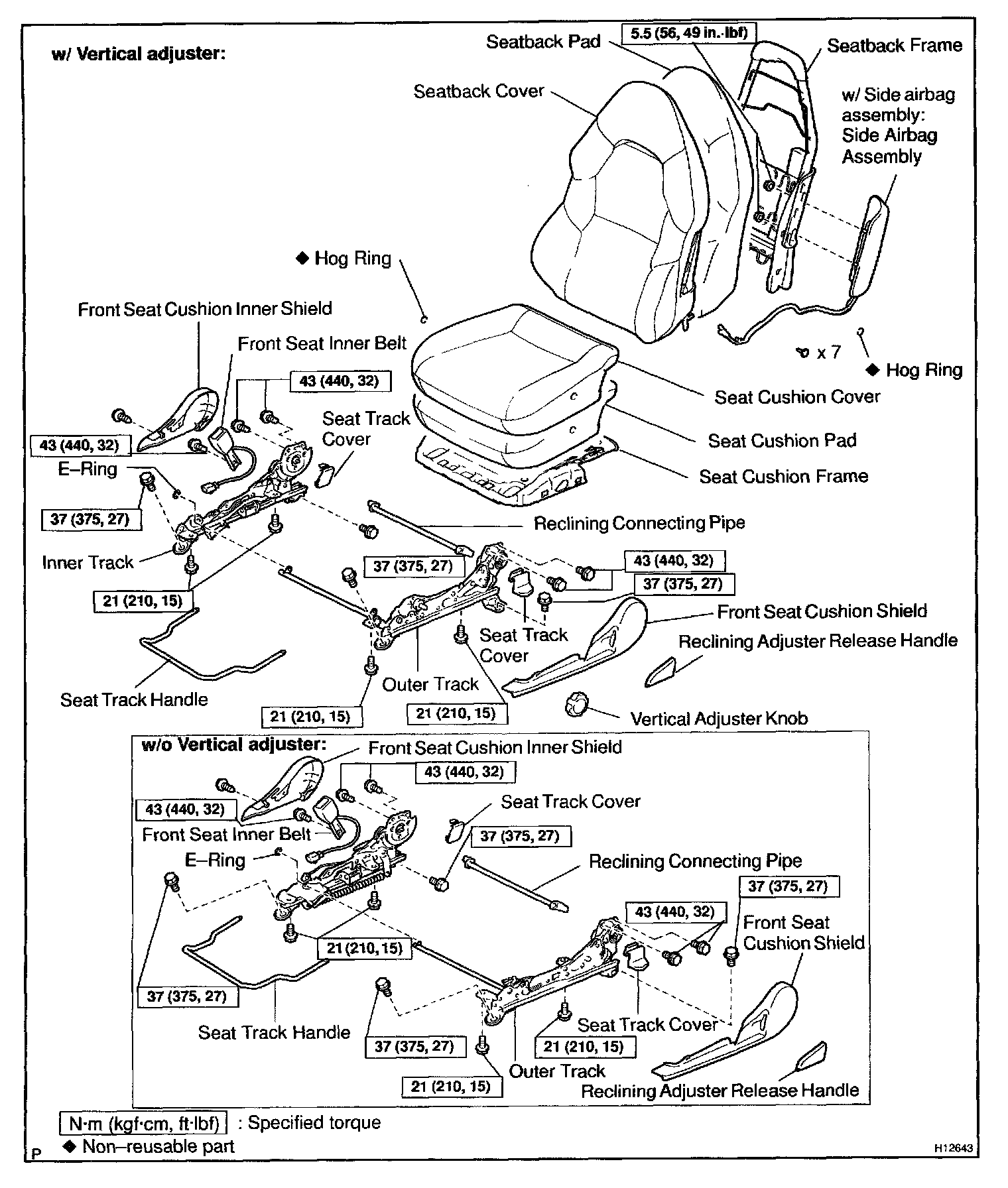

Front Seat:

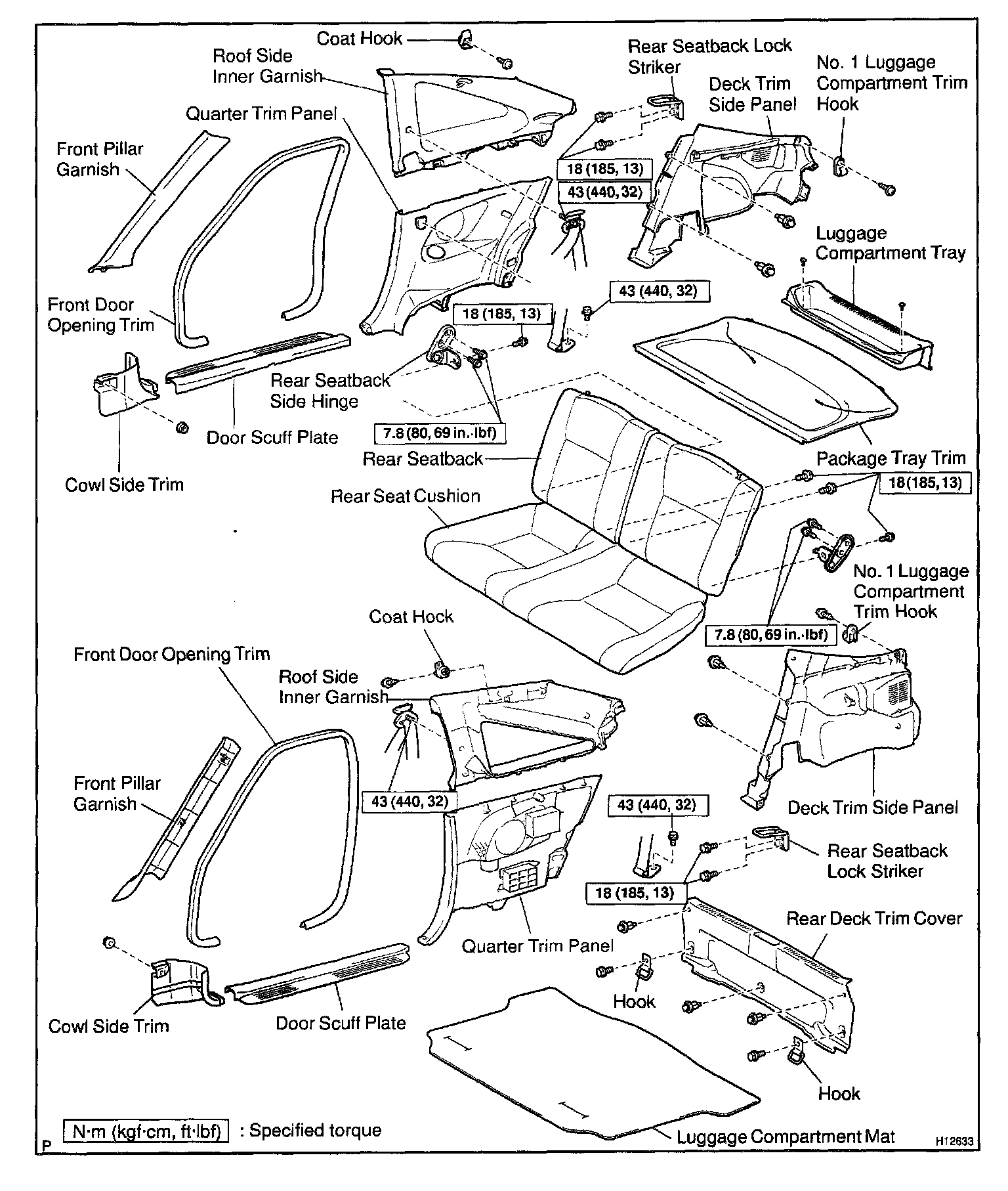

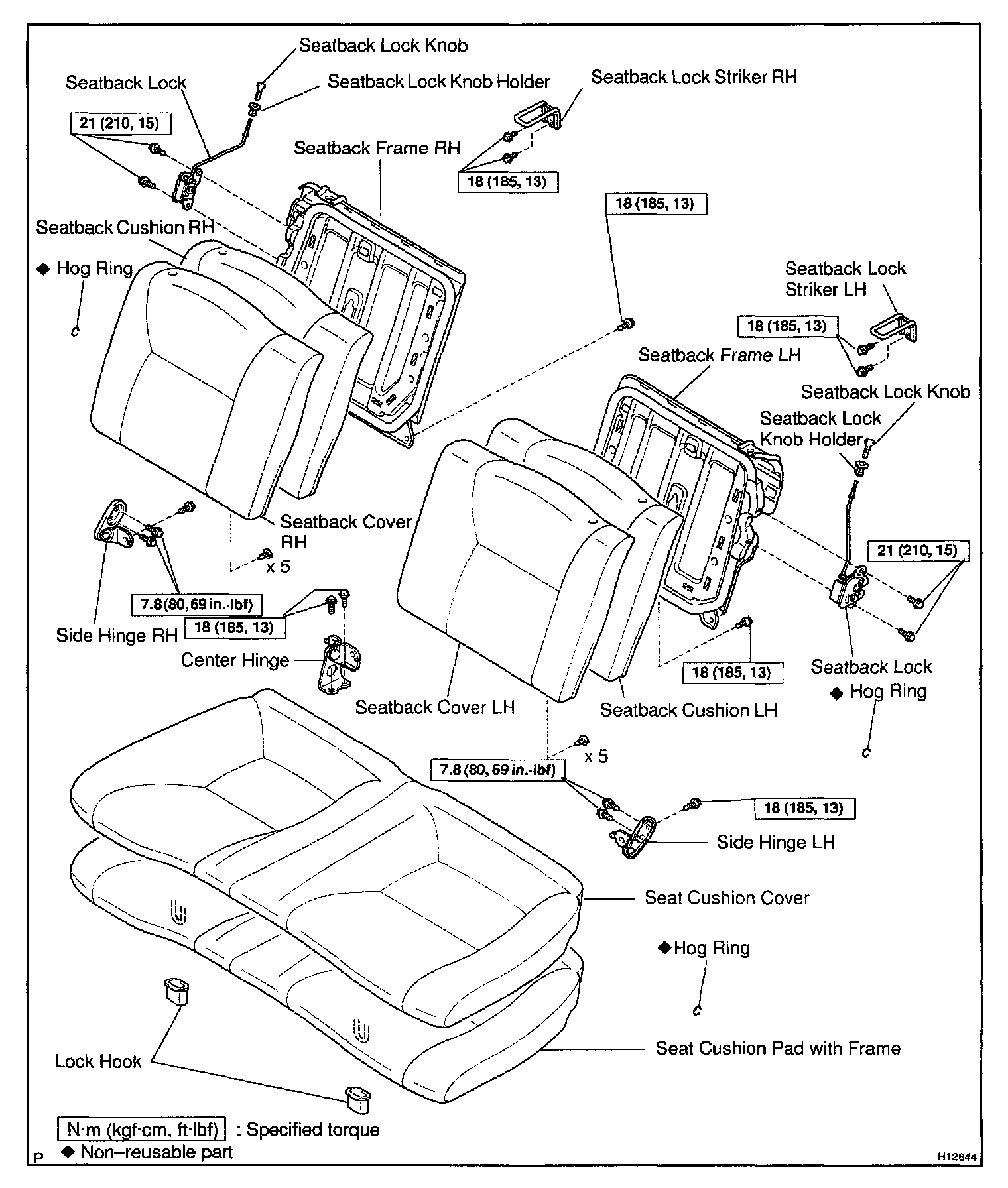

Rear Seat:

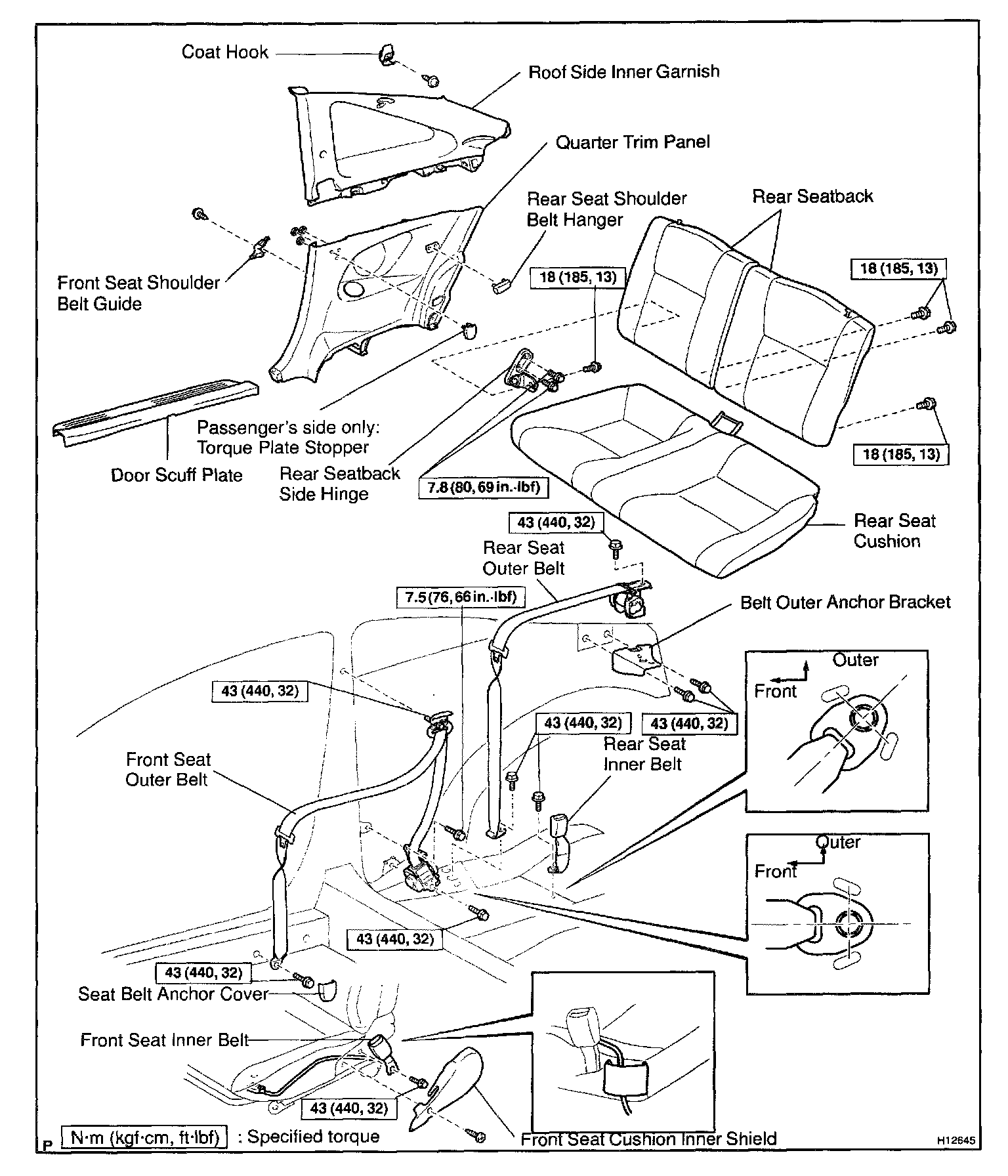

Seat Belt:
