Component Locations

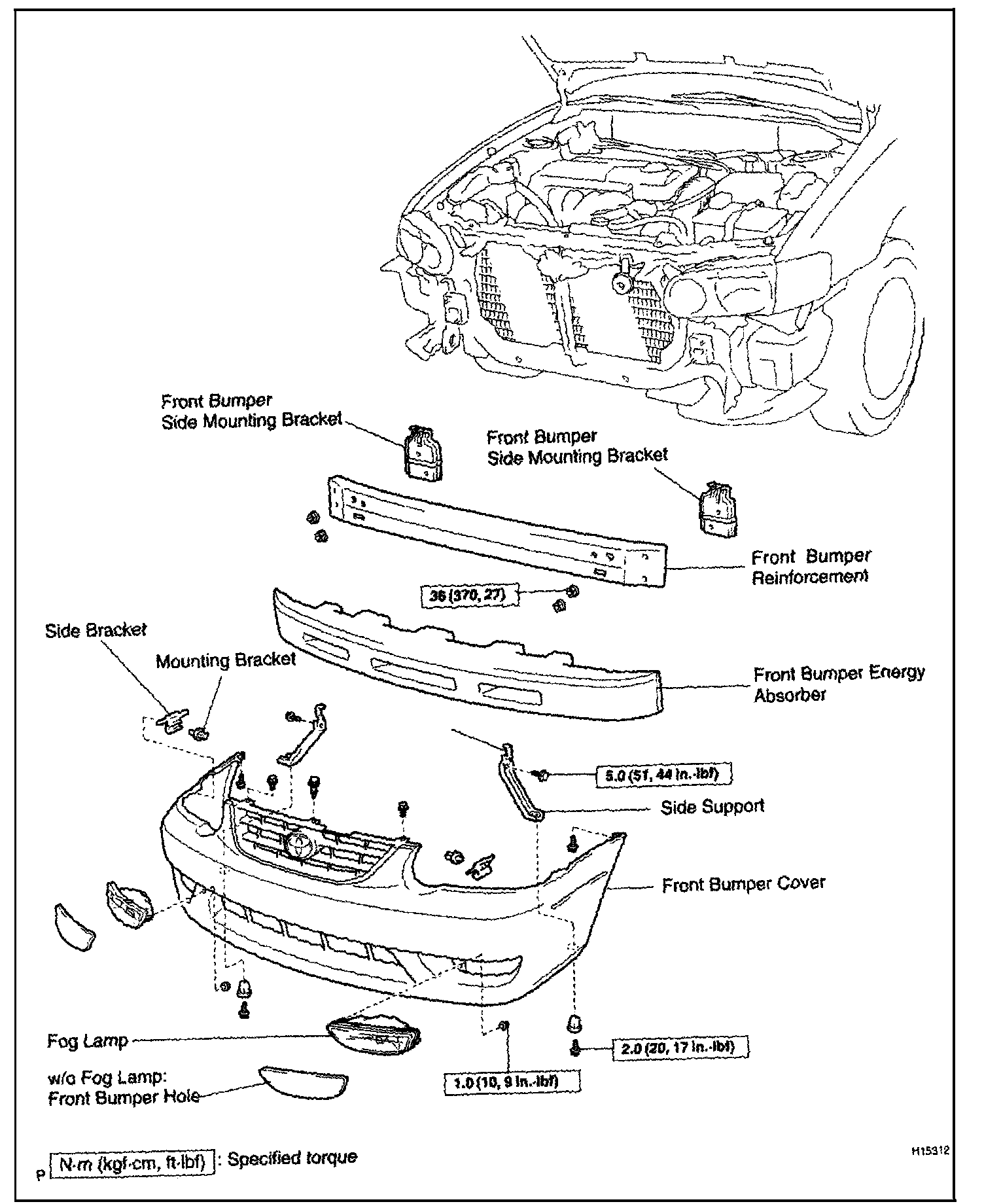

Front Bumper:

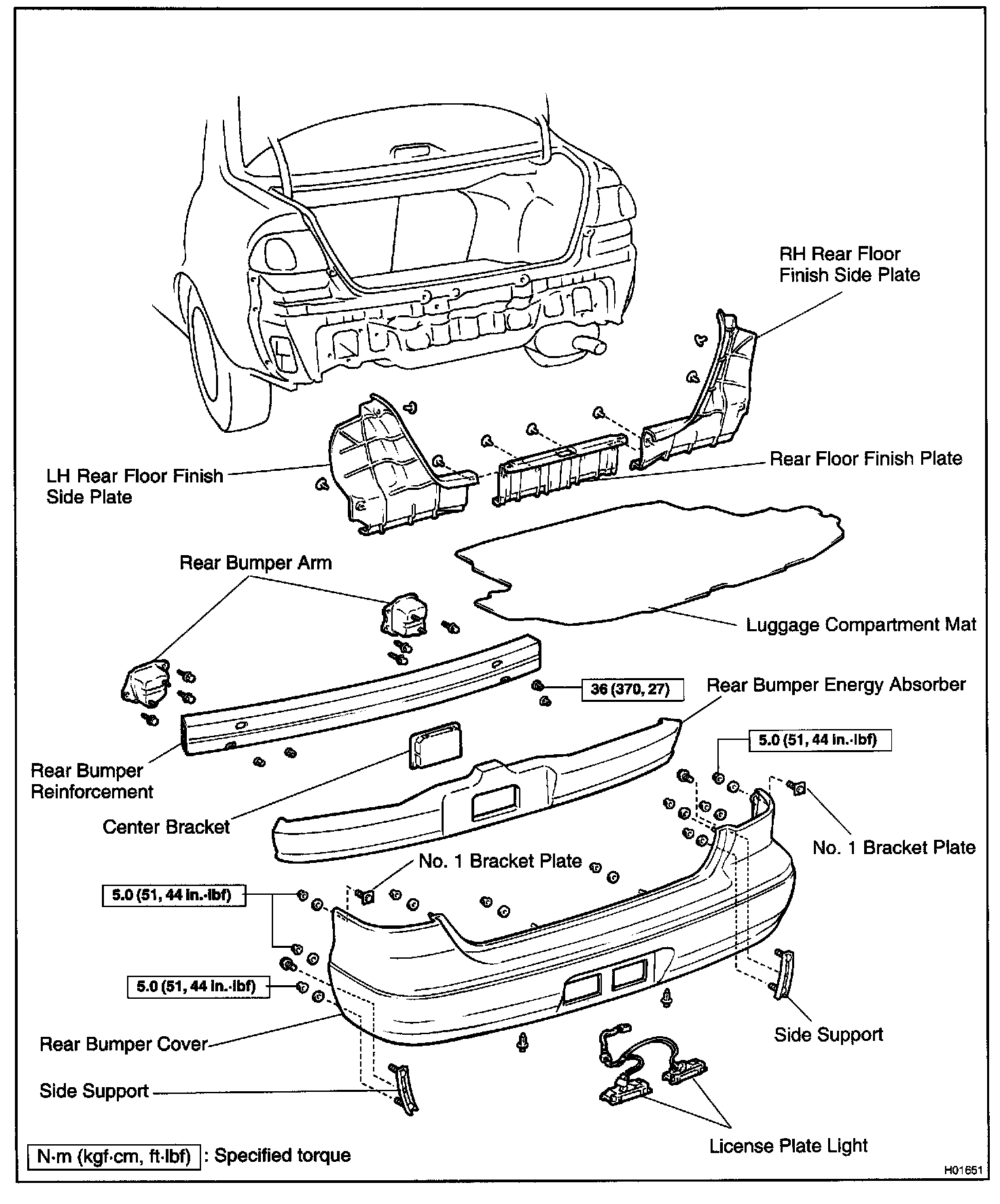

Rear Bumper:

Headlight:

Front Door:

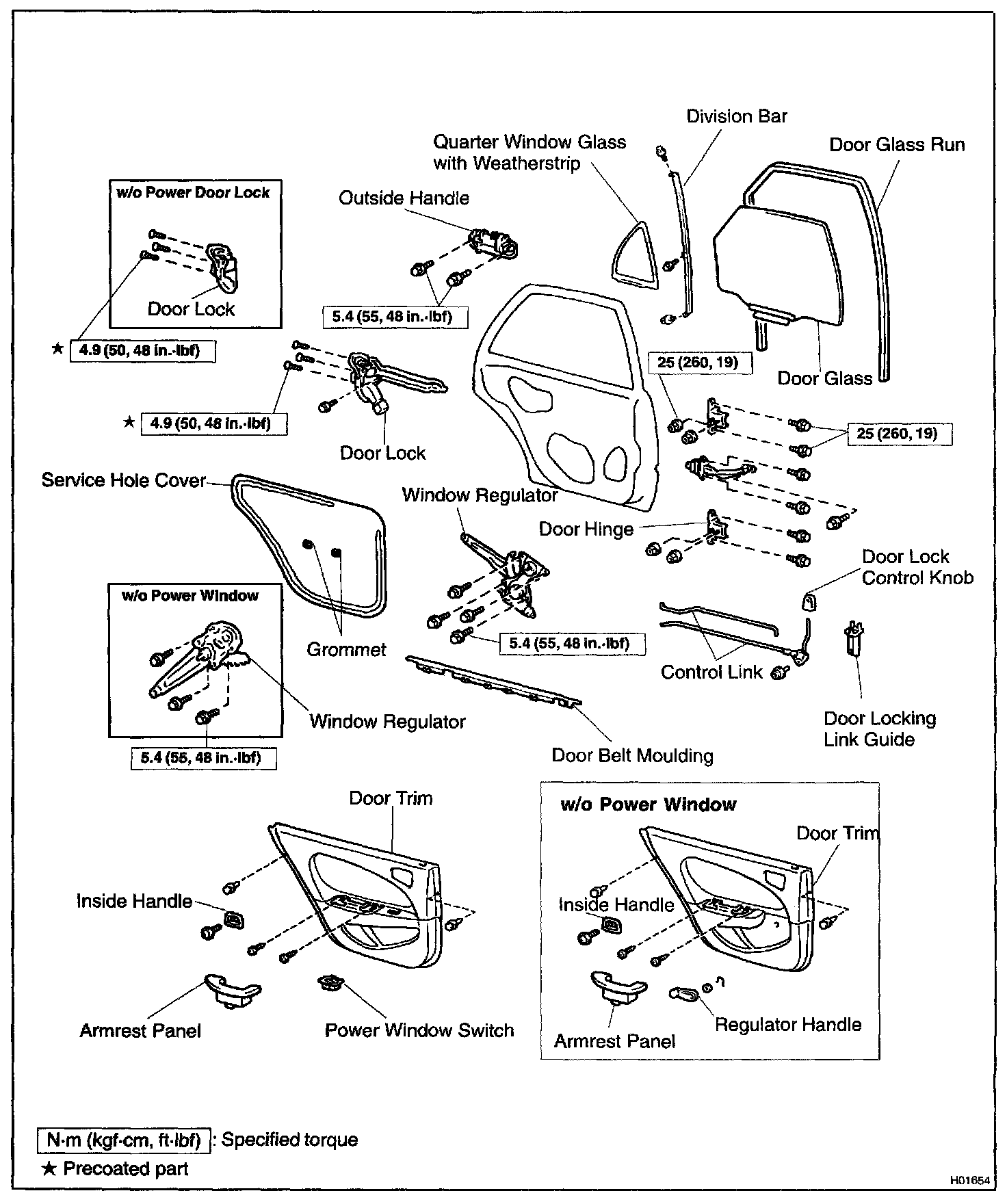

Rear Door:

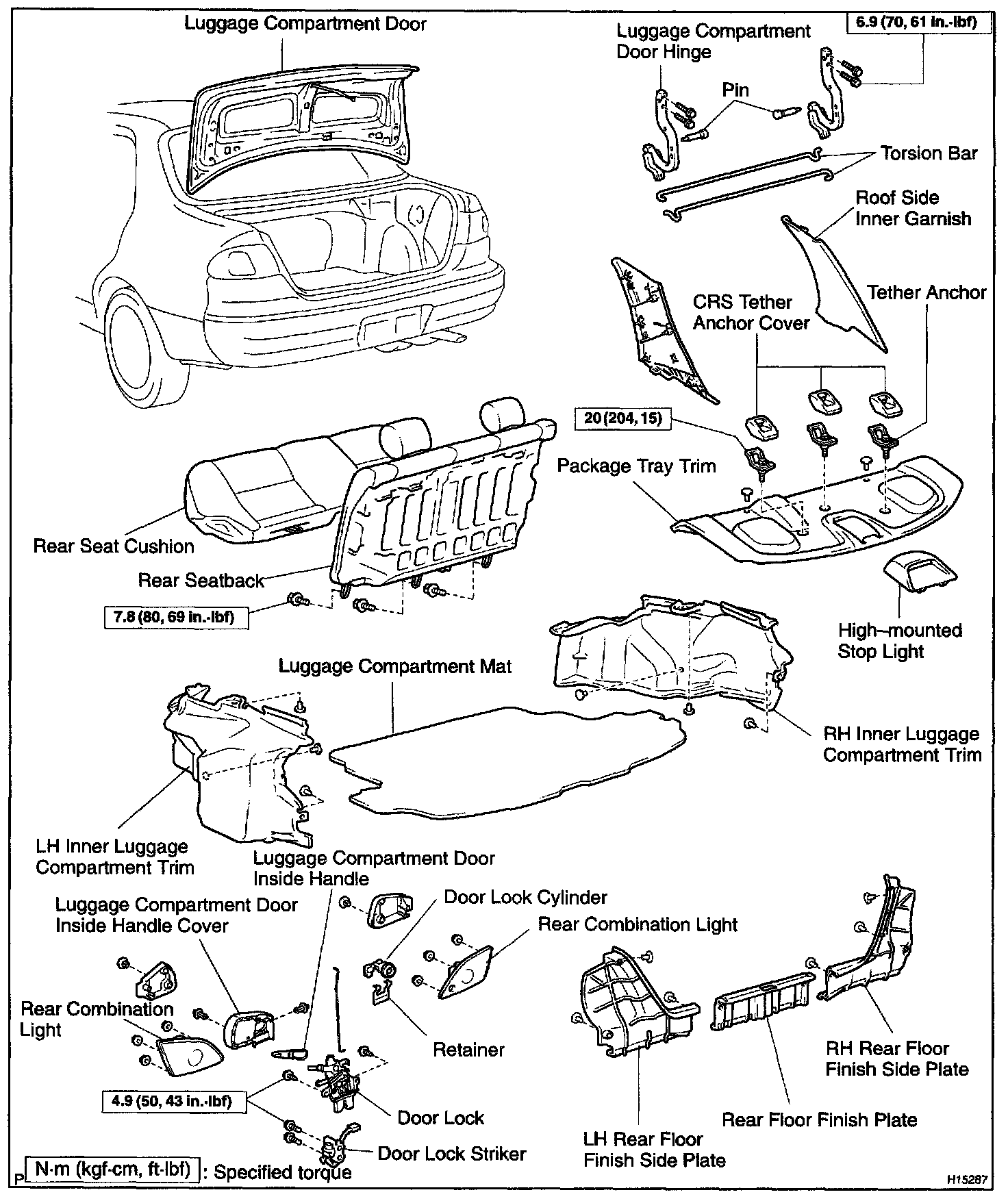

Luggage Compartment Door And Hinge:

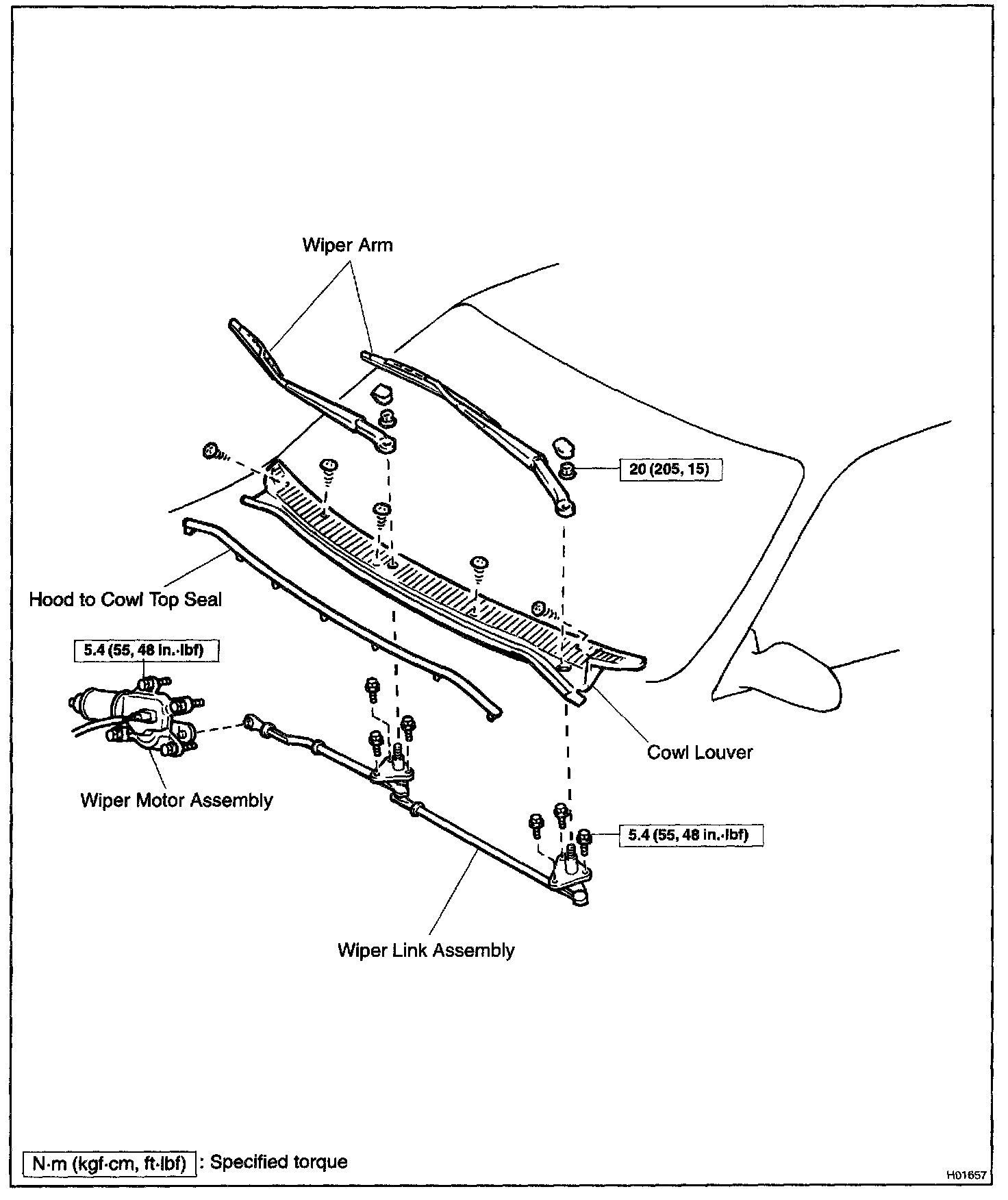

Front Wiper And Washer:

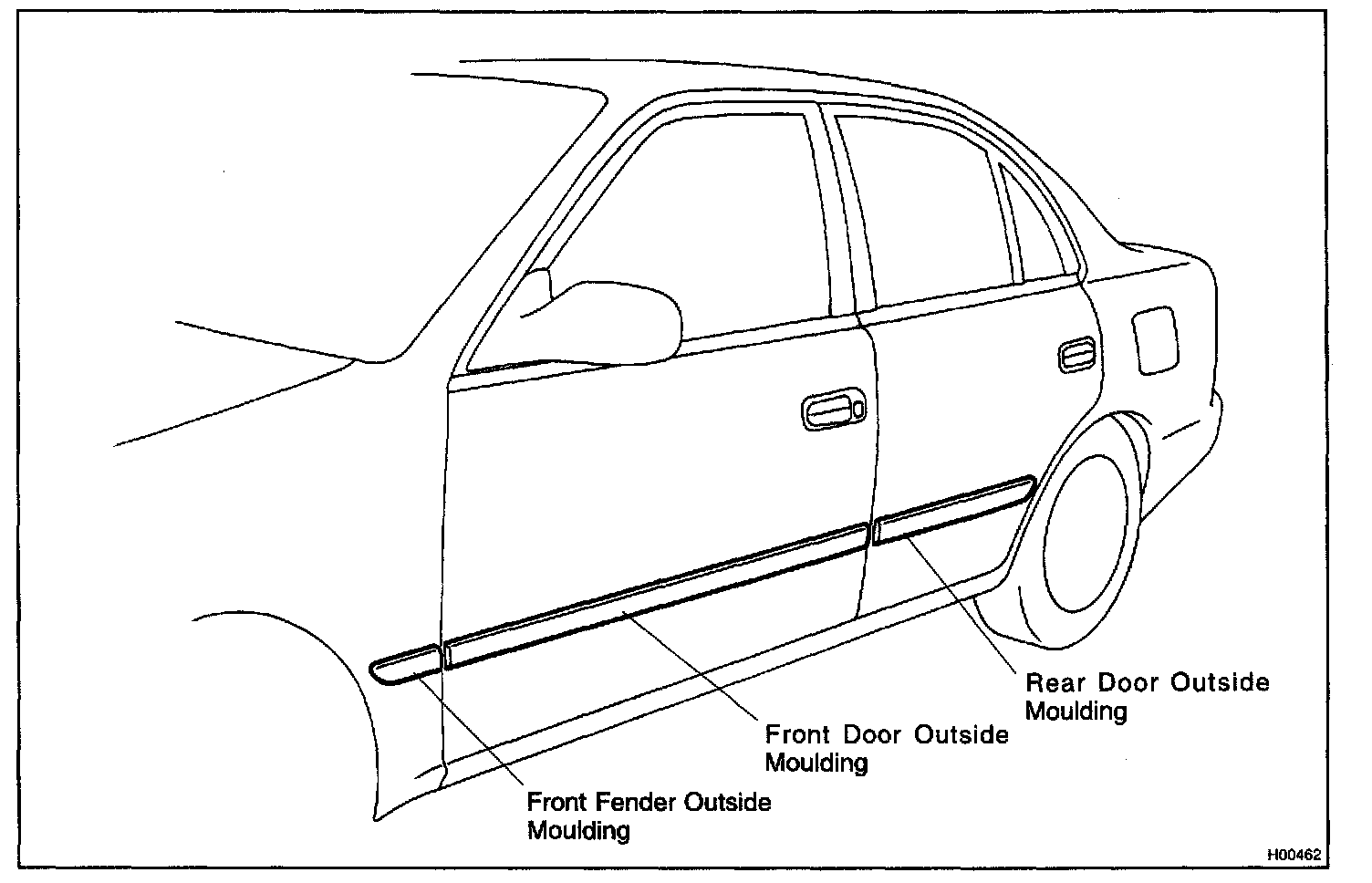

Body Outside Moulding:

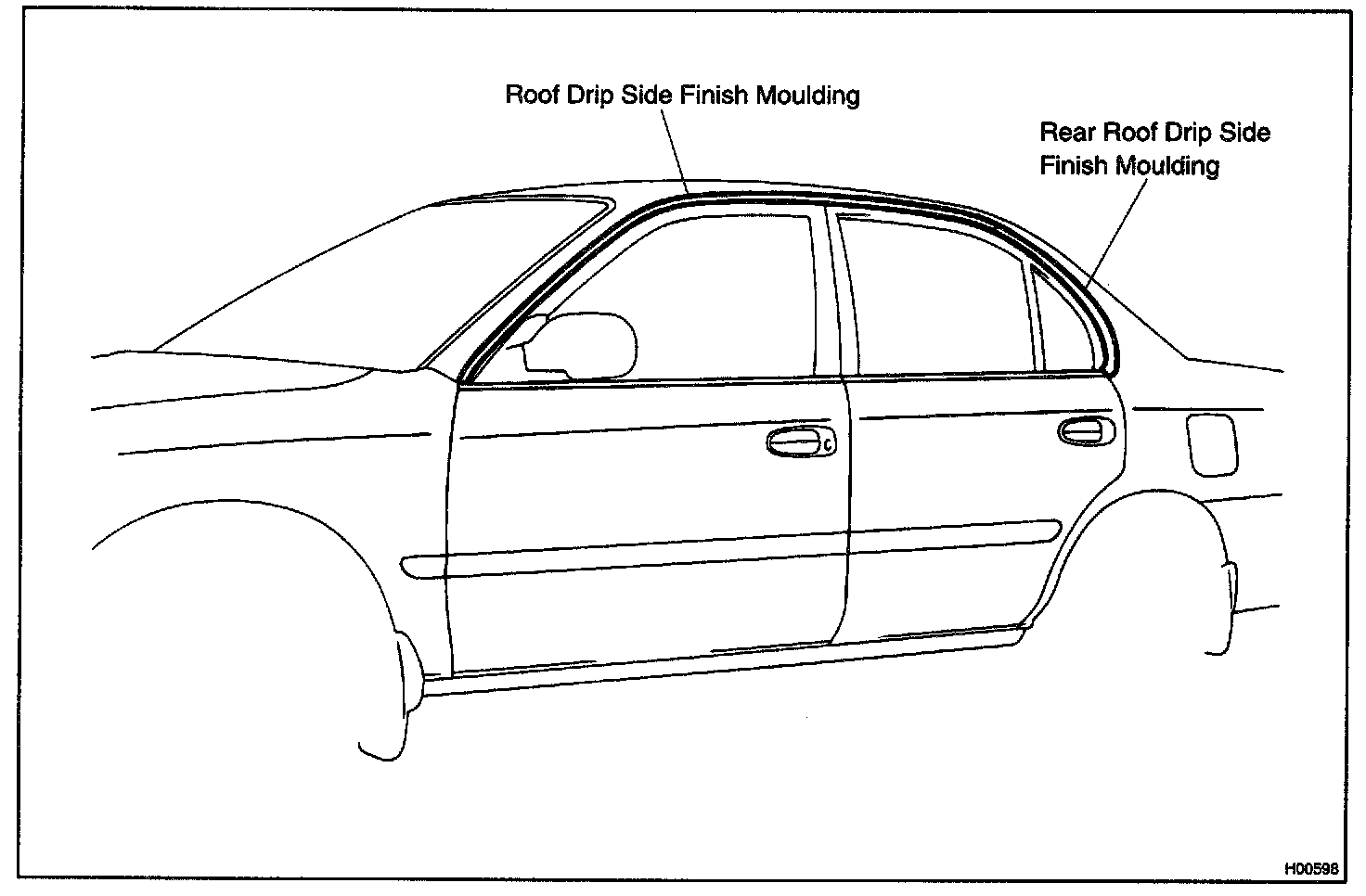

Roof Drip Side Finish Moulding:

Rocker Panel Moulding:

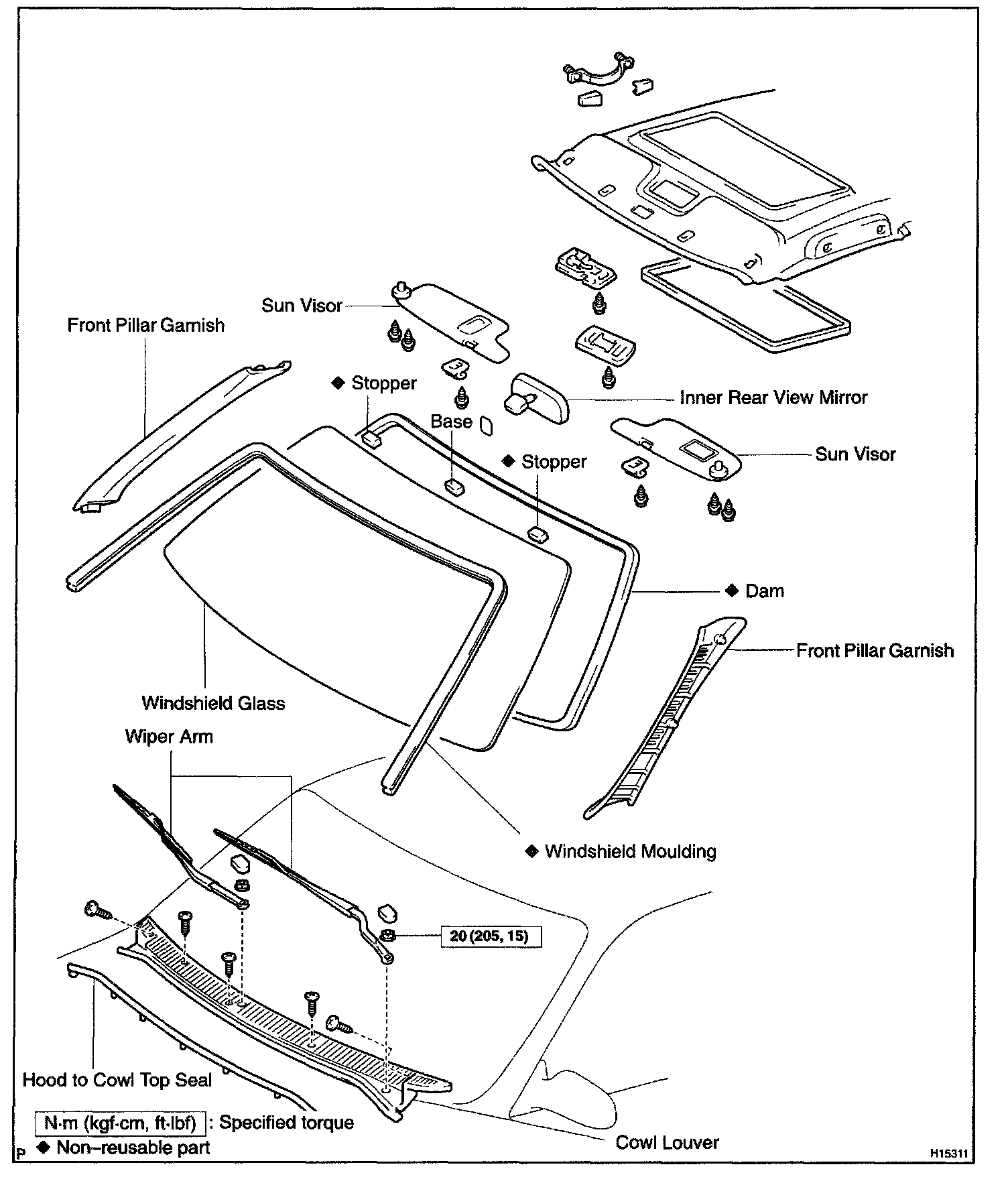

Windshield:

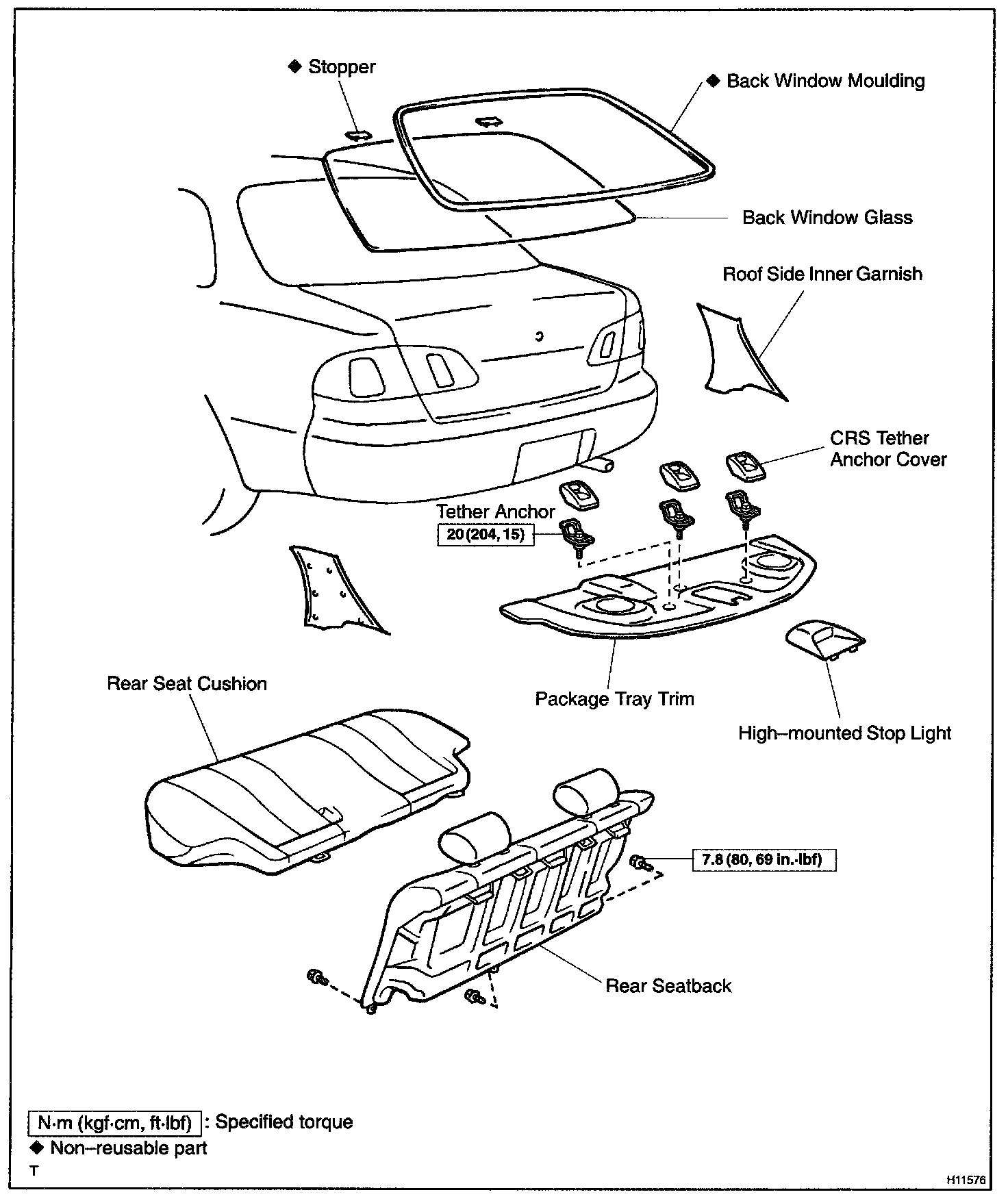

Back Window Glass:

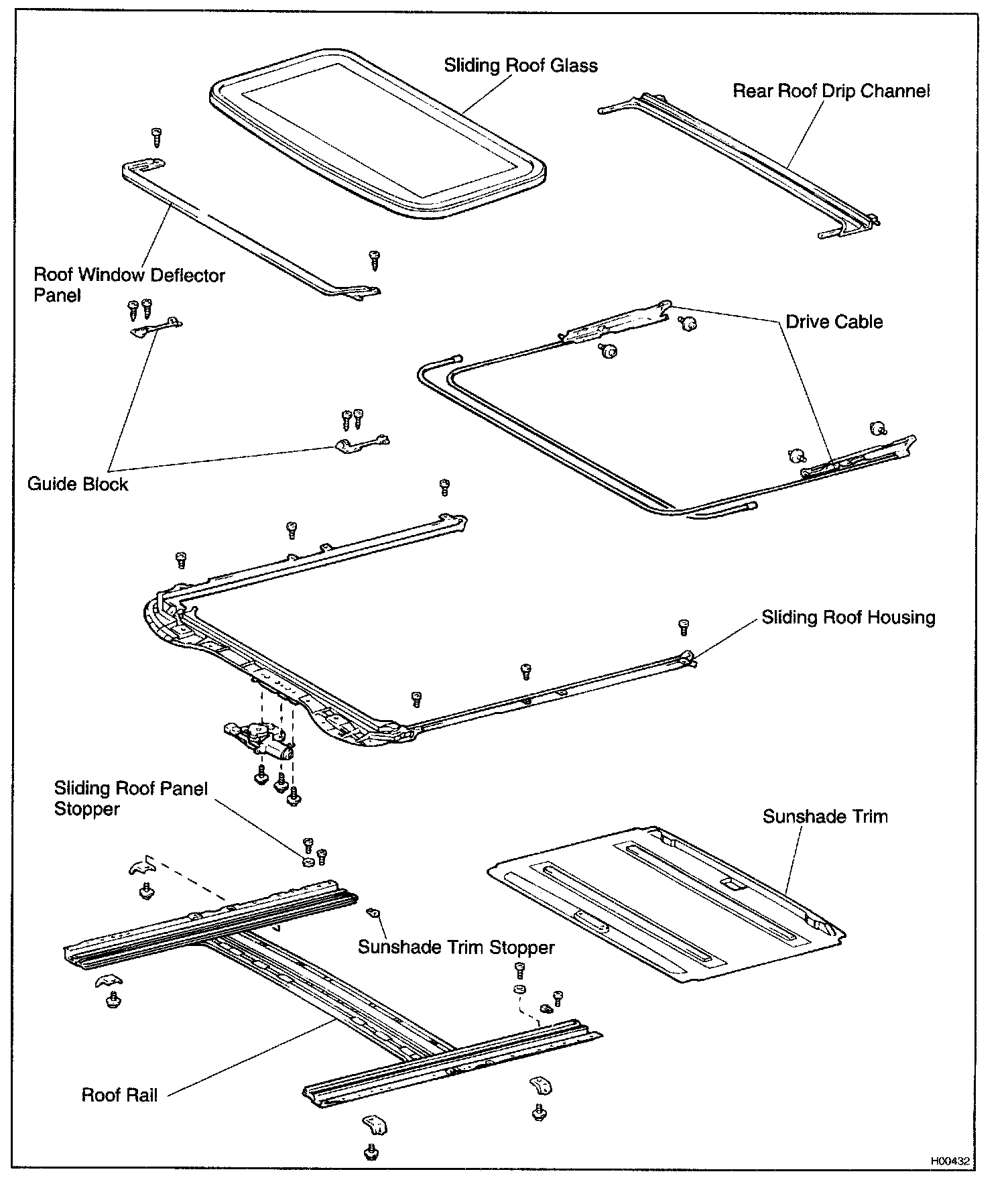

Sliding Roof:

Instrument Panel (Part 1):

Instrument Panle (Part 2):

Screw Sizes And Shapes:

Roof Headlining:

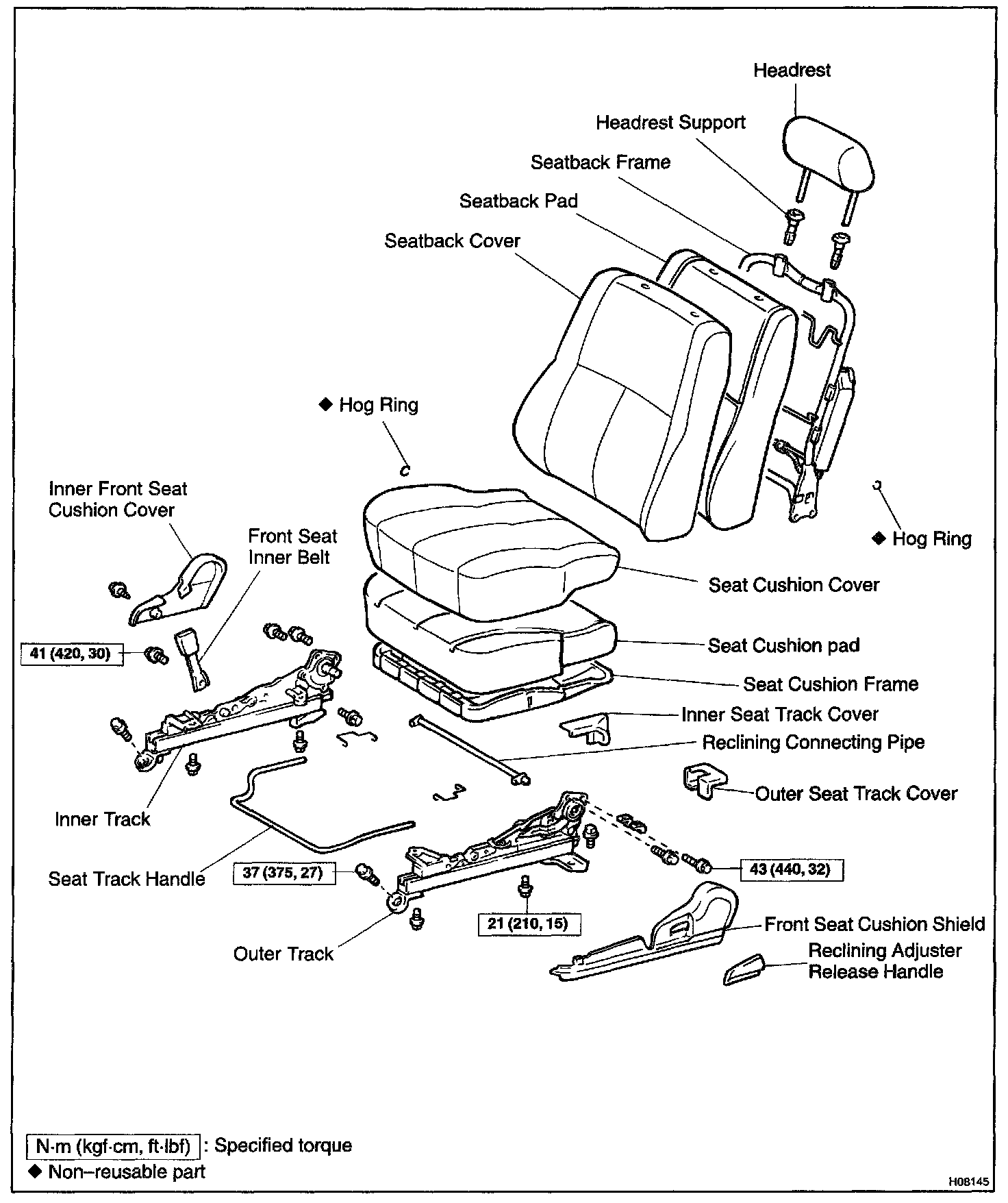

Front Seat:

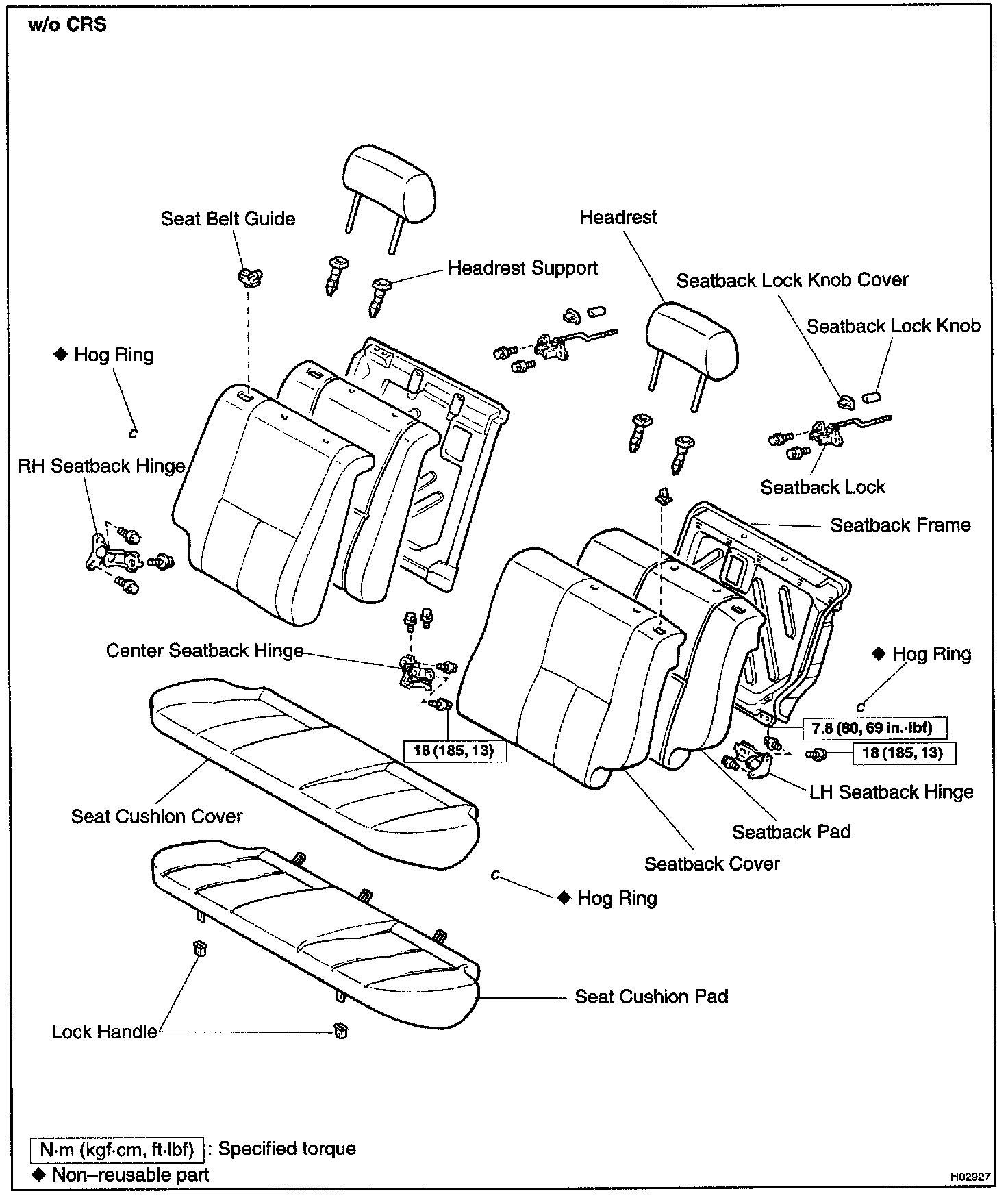

Rear Seat (Split Type) - W/o CRS:

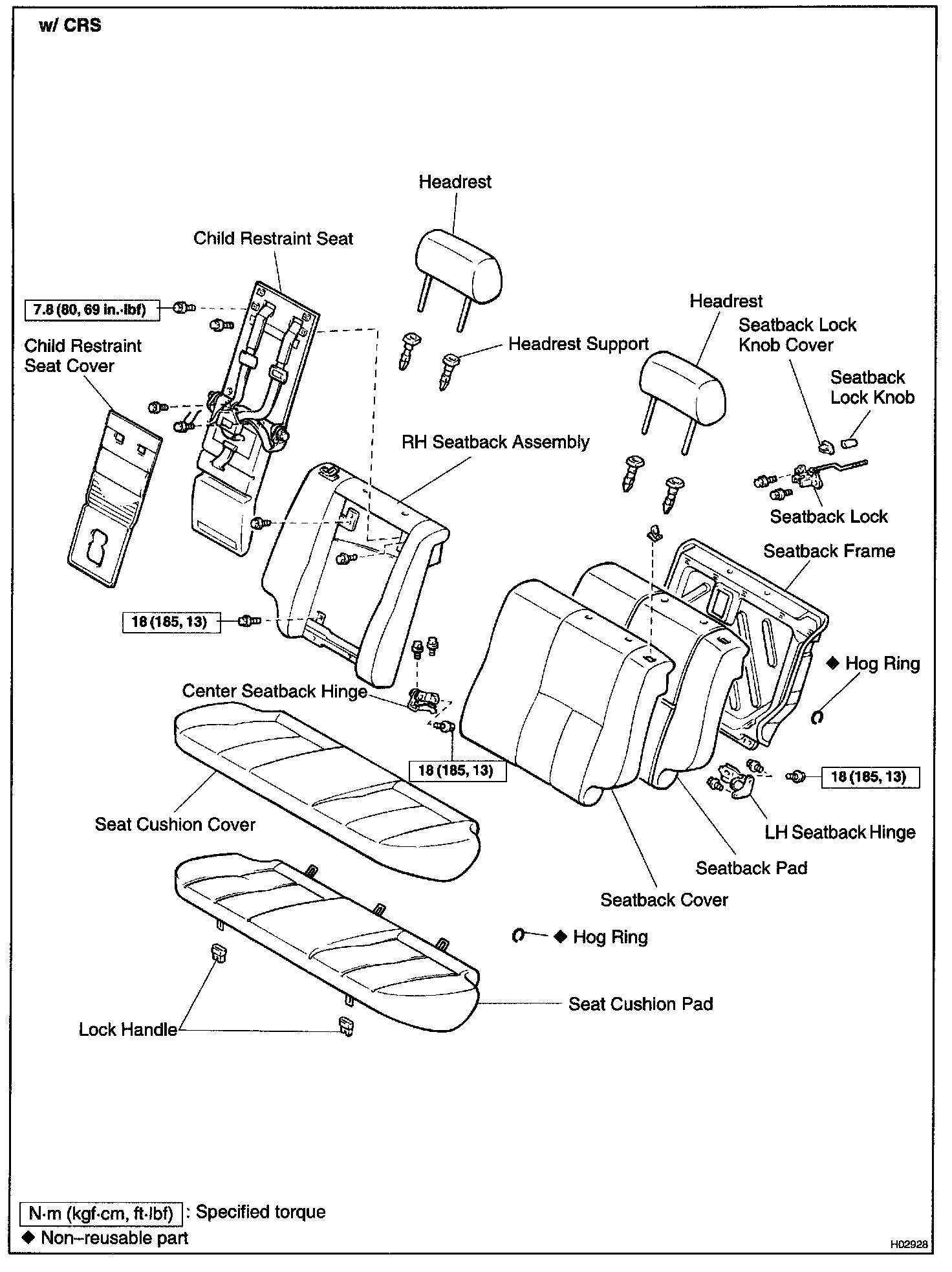

Rear Seat (Split Type) - W/ CRS:

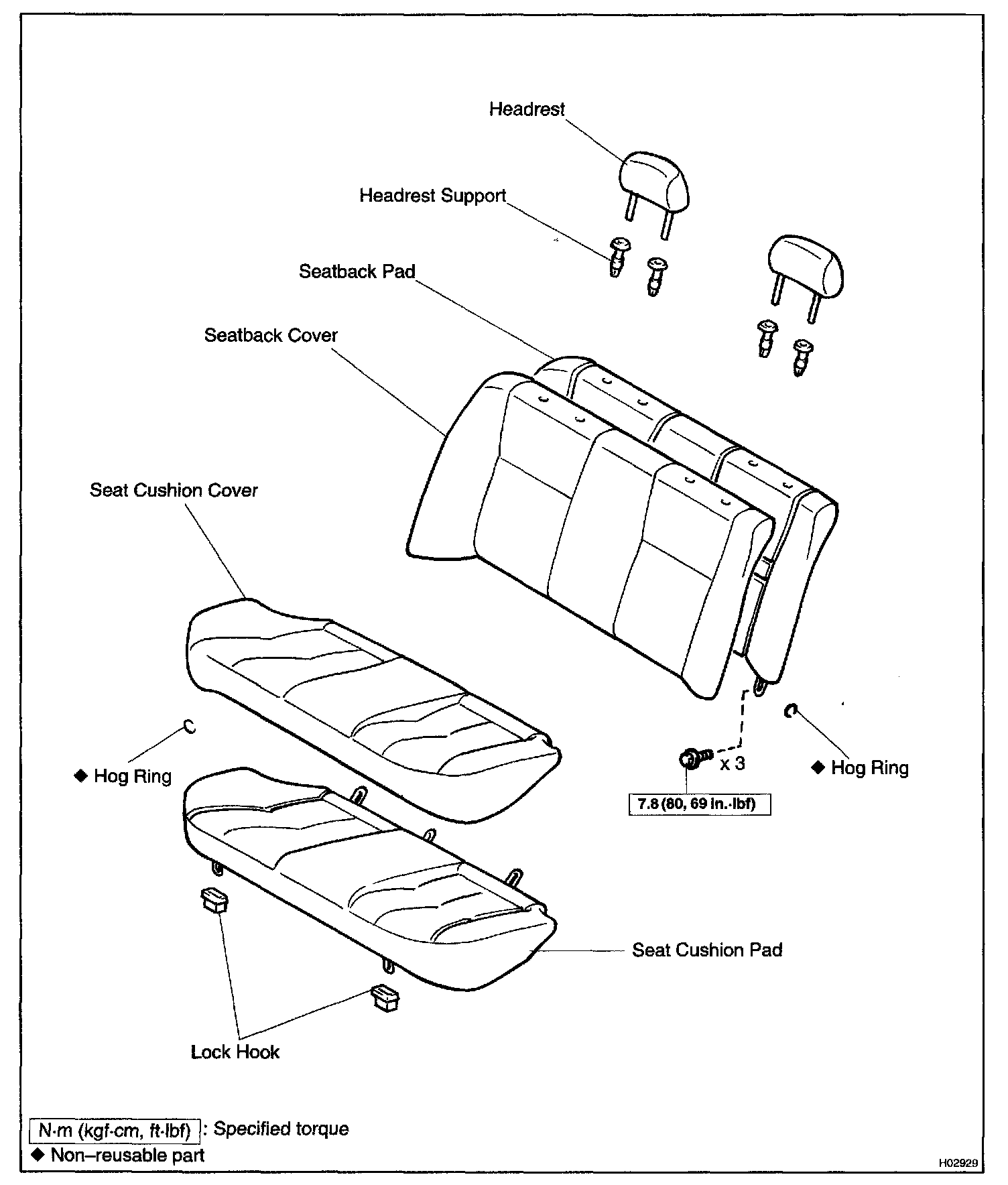

Rear Seat (Fixed Type):

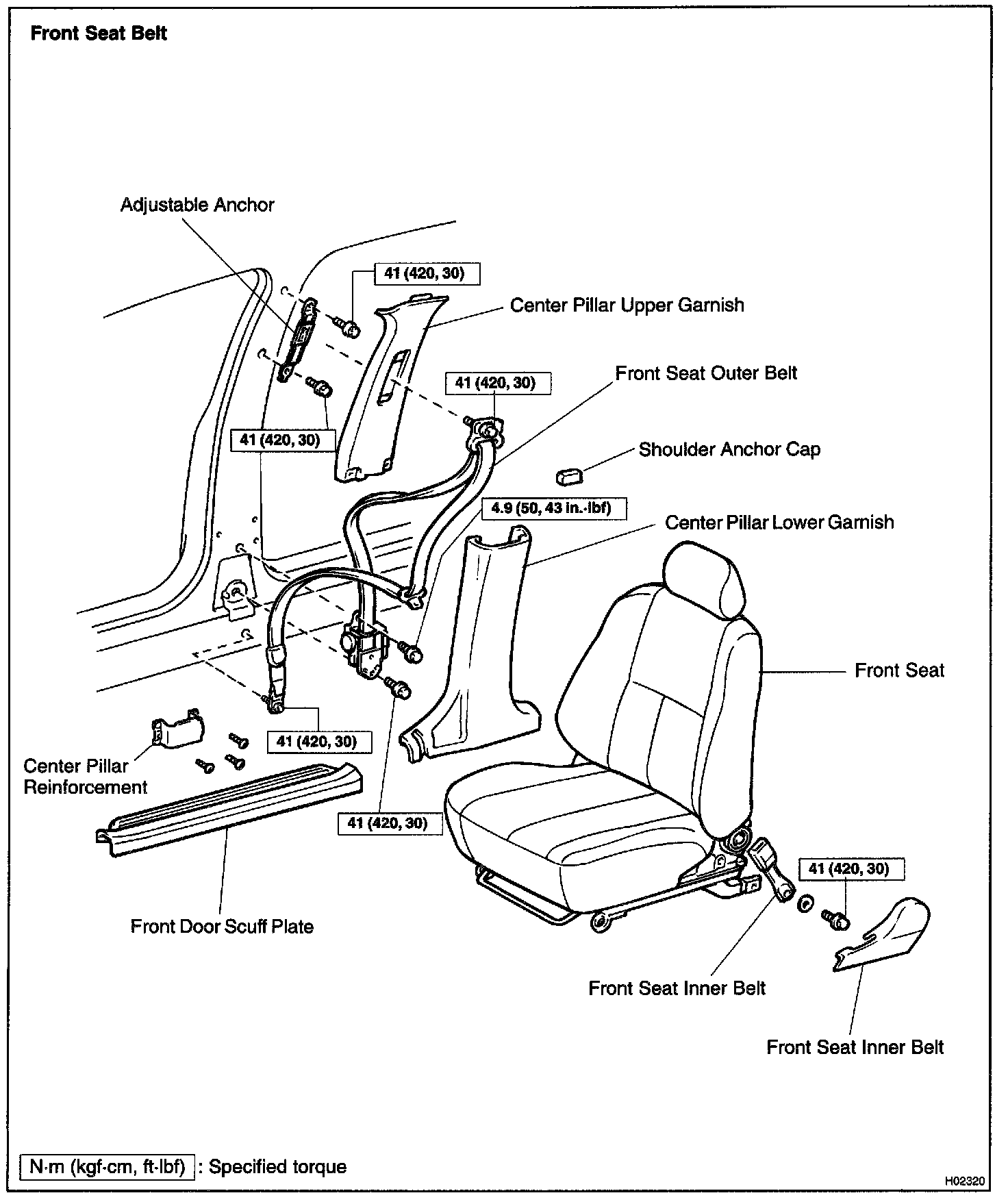

Seat Belt (Front Seat Belt):

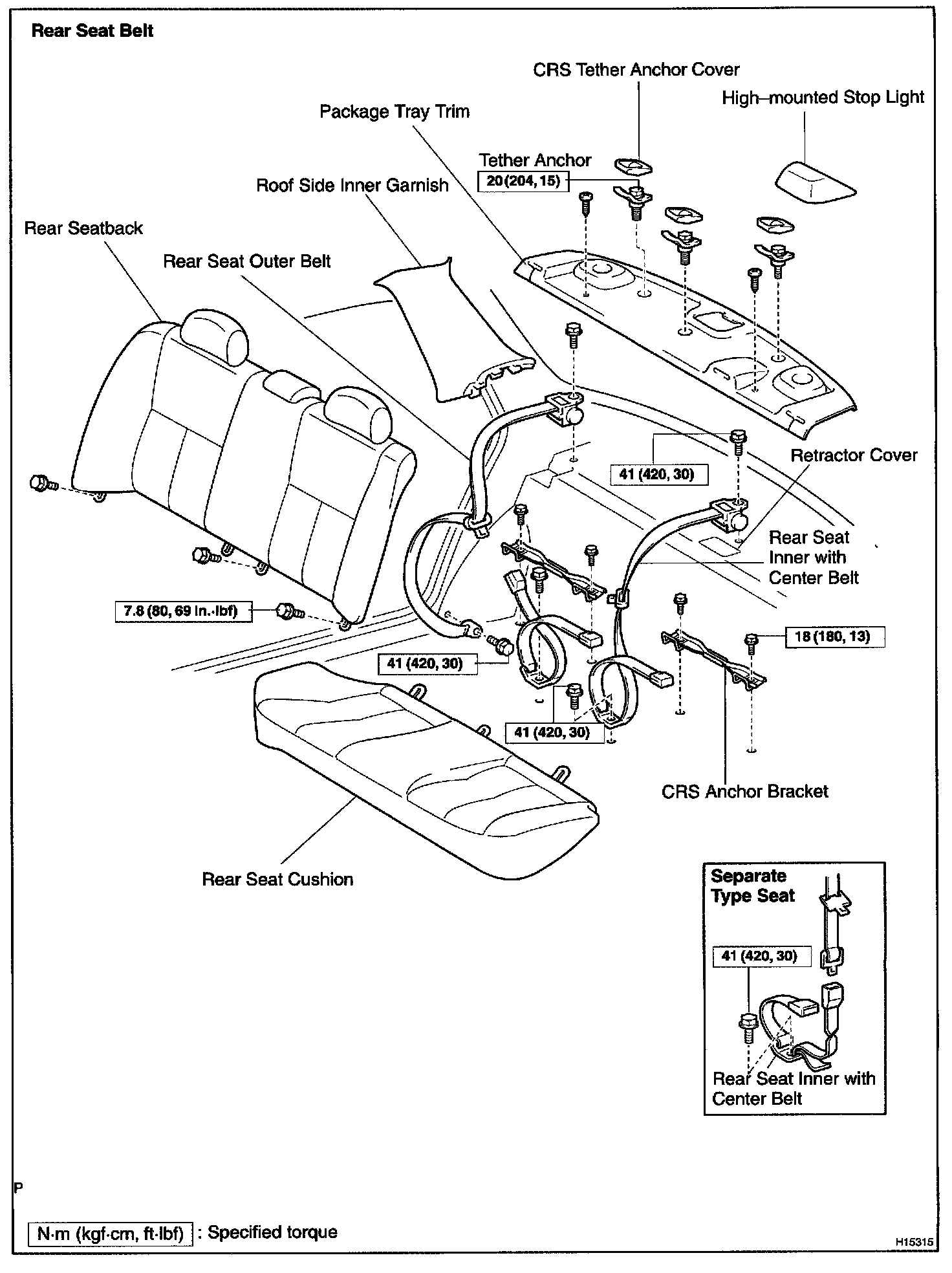

Seat Belt (Rear Seat Belt):
