Fuse Block
Fuse Block
Instrument Panel J/B Inner Circuit Part 1:

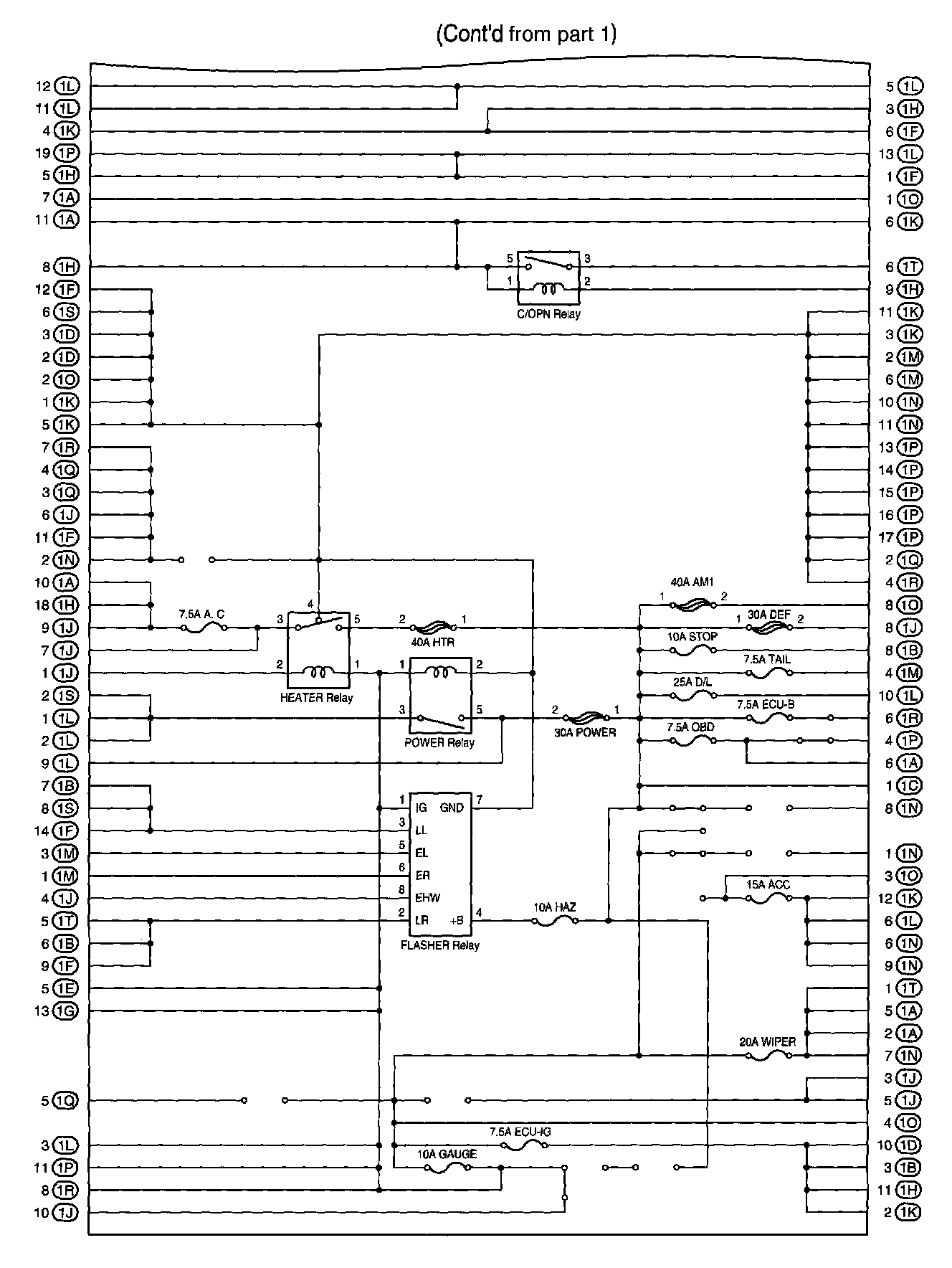

Instrument Panel J/B Inner Circuit Part 2:
