Home
>>
Toyota
>>
2002
>>
Prius L4-1.5L (1NZ-FXE) Hybrid
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power and Ground Distribution
>>
Relay Box
>>
Body
Body

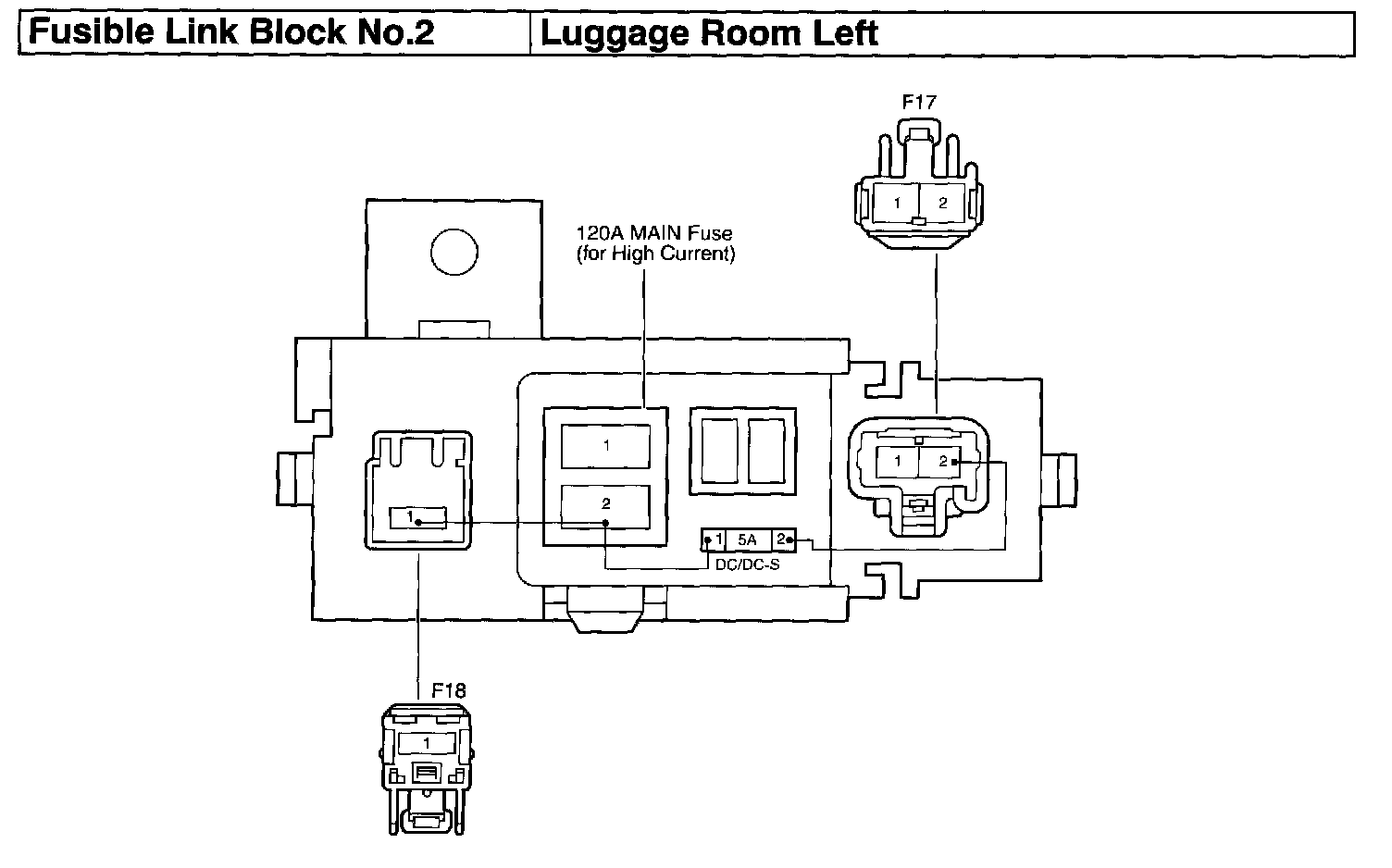

Fusible Link Block No.2:
