Locations
>>
Connector Locations
>>
Body
Body

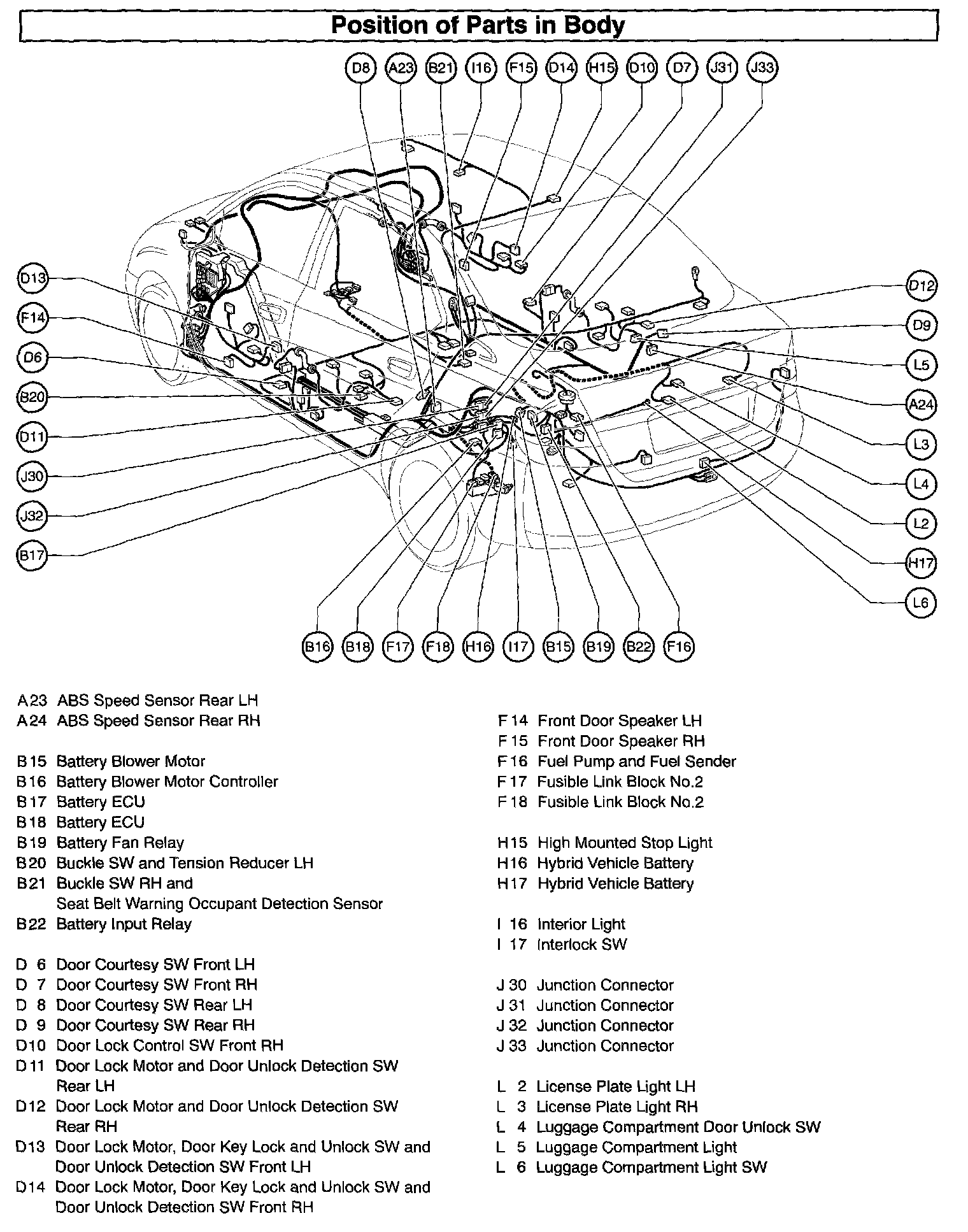

Position Of Parts In Body Part 1:
Position Of Parts In Body Part 2:
