Operation CHARM
: Car repair manuals for everyone.
Home
>>
Toyota
>>
2003
>>
Prius L4-1.5L (1NZ-FXE) Hybrid
>>
Repair and Diagnosis
>>
Brakes and Traction Control
>>
Specifications
>>
Mechanical Specifications
Mechanical Specifications

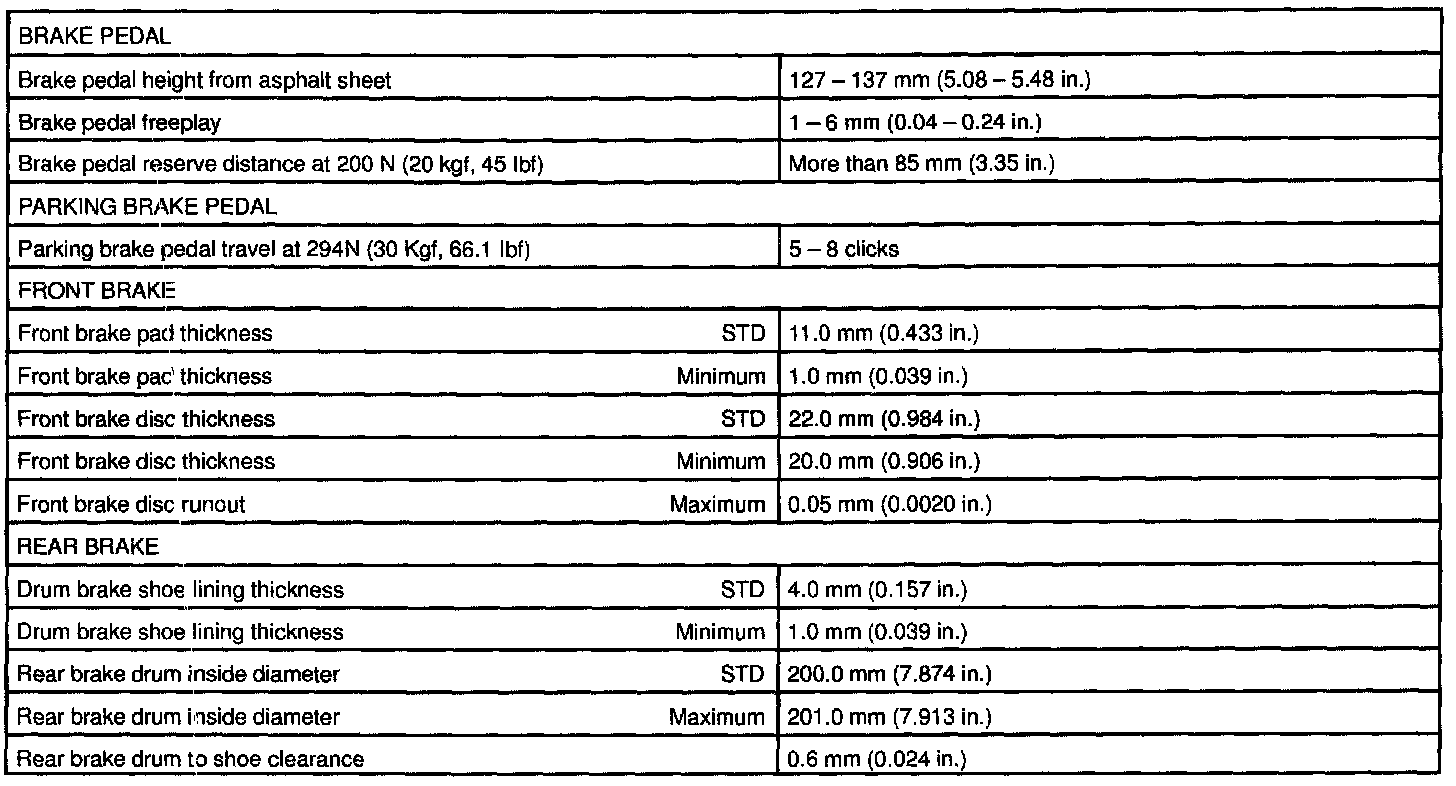

BRAKE SERVICE DATA:

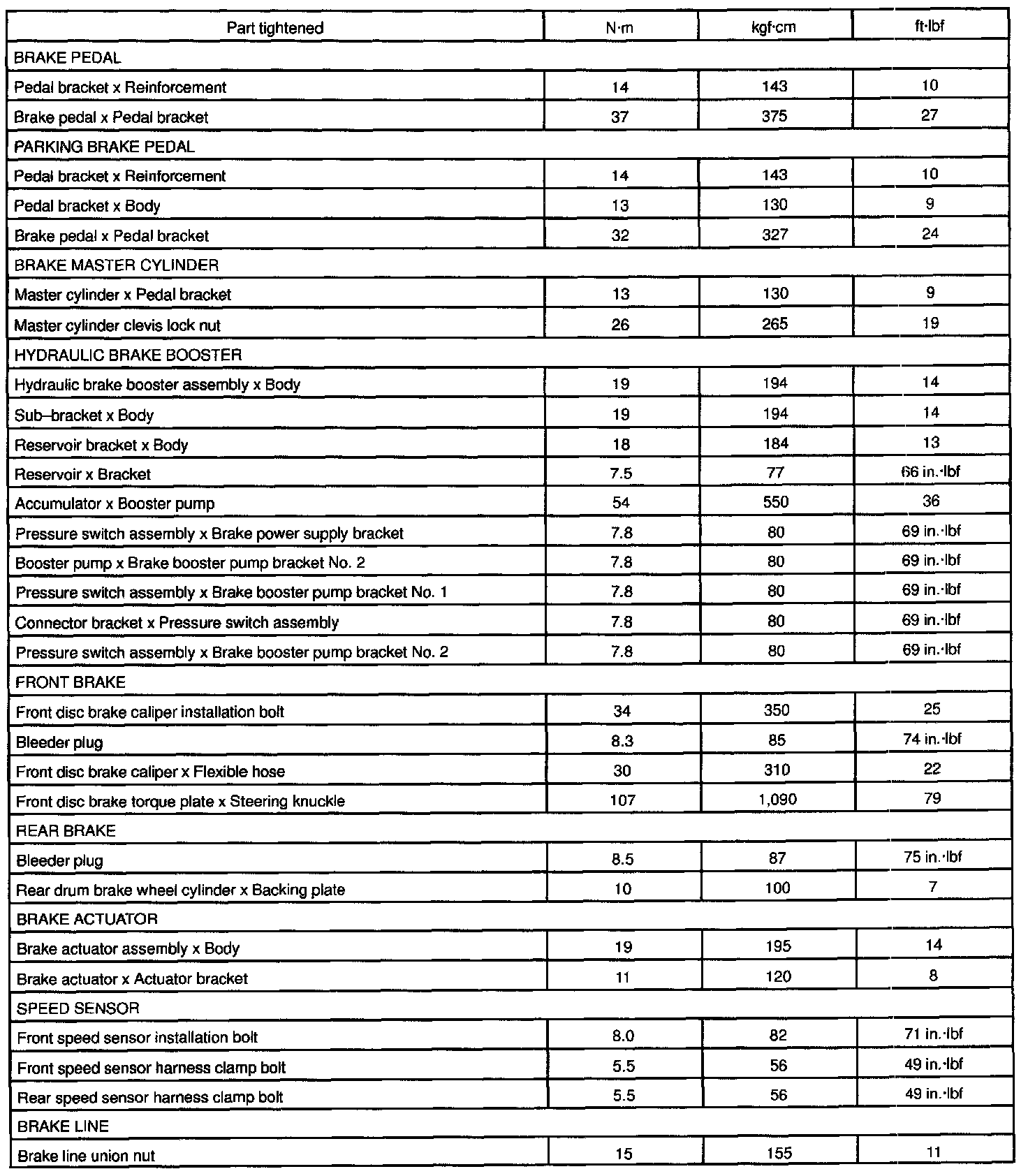

TORQUE SPECIFICATION:
