Position of Parts In Seat
Position of Parts In Seat

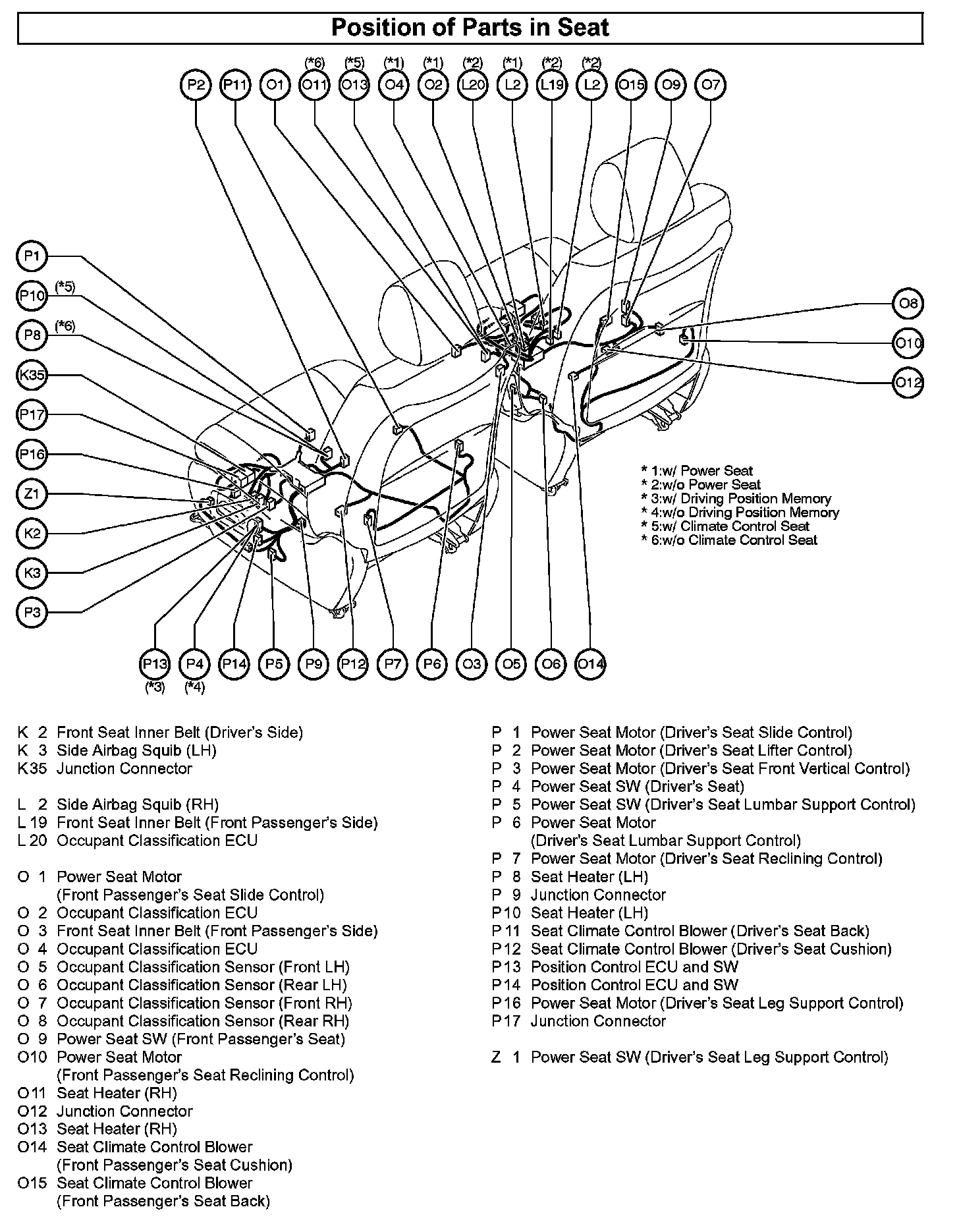

Position of Parts In Seat:

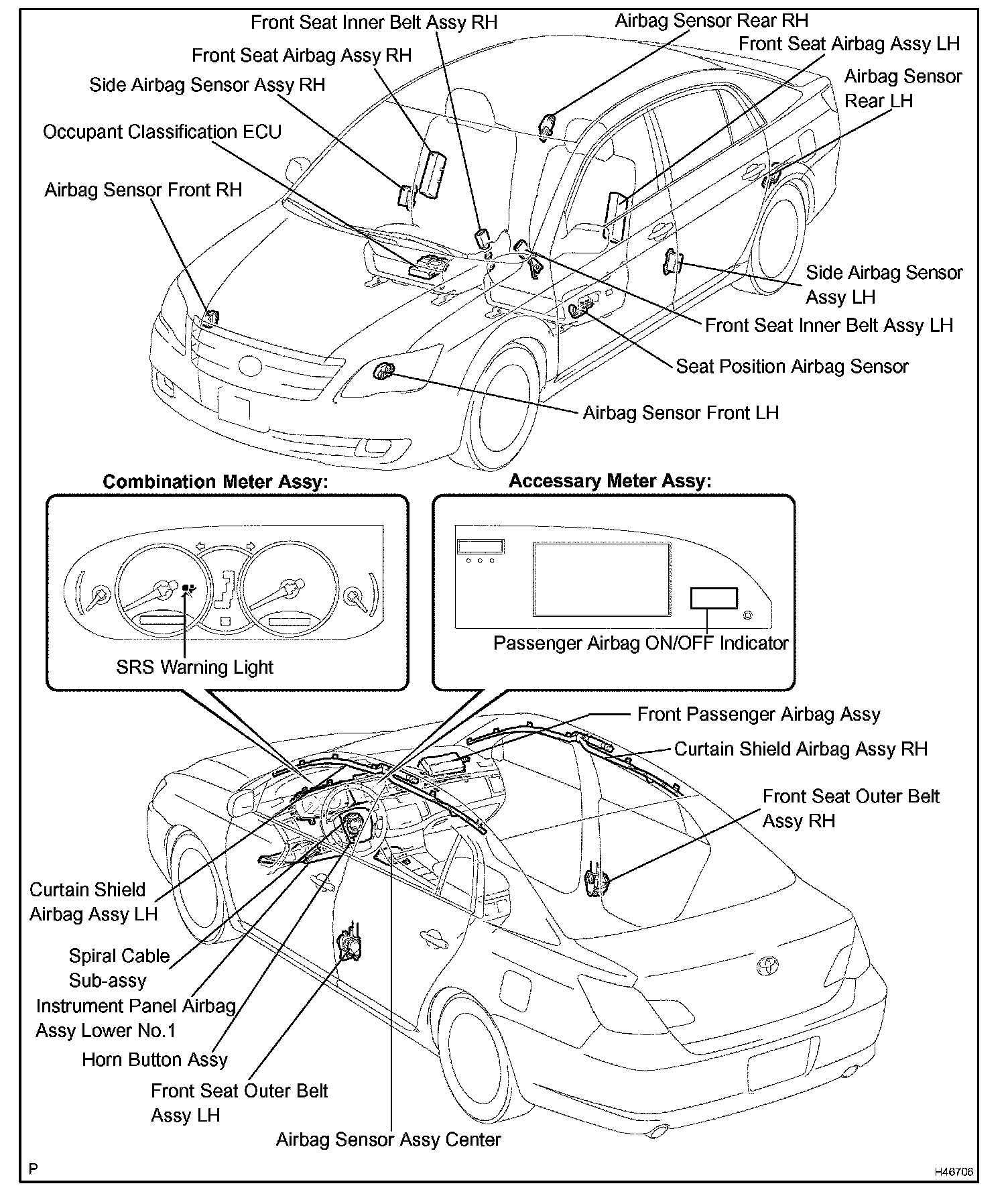

Supplemental Restraint System:

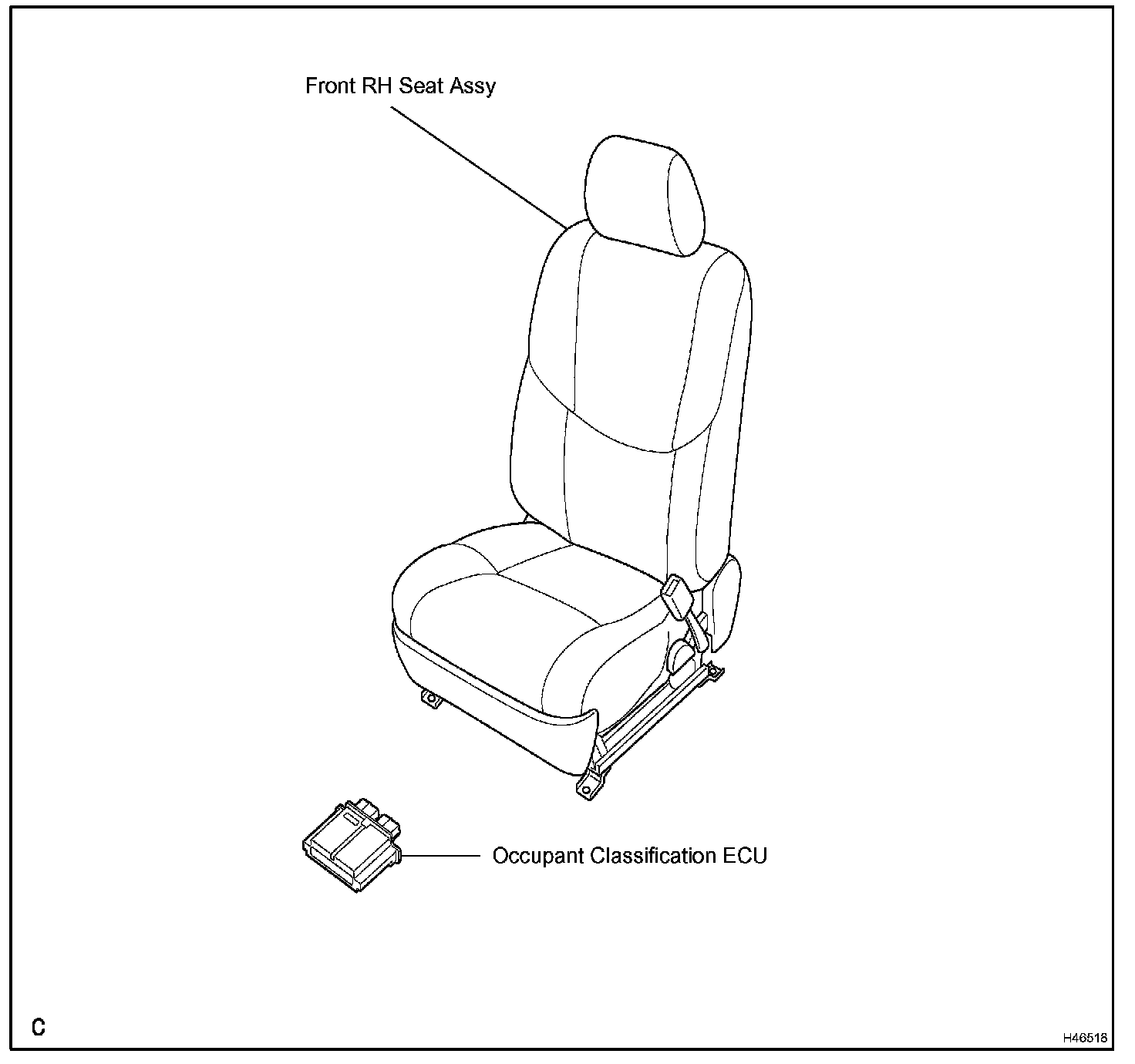

Occupant Classification ECU:
