Exhaust Manifold
Exhaust Manifold TorqueInstall a new gasket and the exhaust manifold with the 5 nuts.
Torque 37 Nm (377 kgf-cm, 27 ft. lbs.)
Install the 2 exhaust manifold stays with the 4 bolts.
Torque 37 Nm (377 kgf-cm, 27 ft. lbs.)
Place the upper heat insulator on the exhaust manifold.
Install the 2 heated oxygen sensors.
Torque 44 Nm (450 kgf-cm, 32 ft. lbs.)
Exhaust Manifold

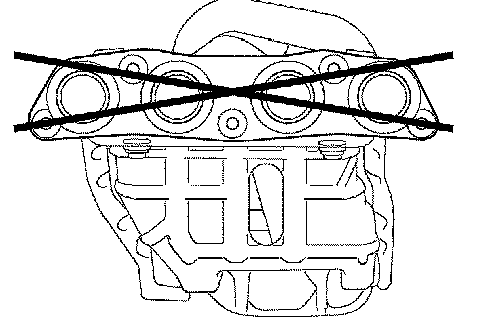

Using a precision straight edge and a feeler gauge, measure the surface contacting the cylinder head for warpage.
Maximum warpage 0.70 mm (0.0276 inch)
