Power and Ground Distribution: Locations

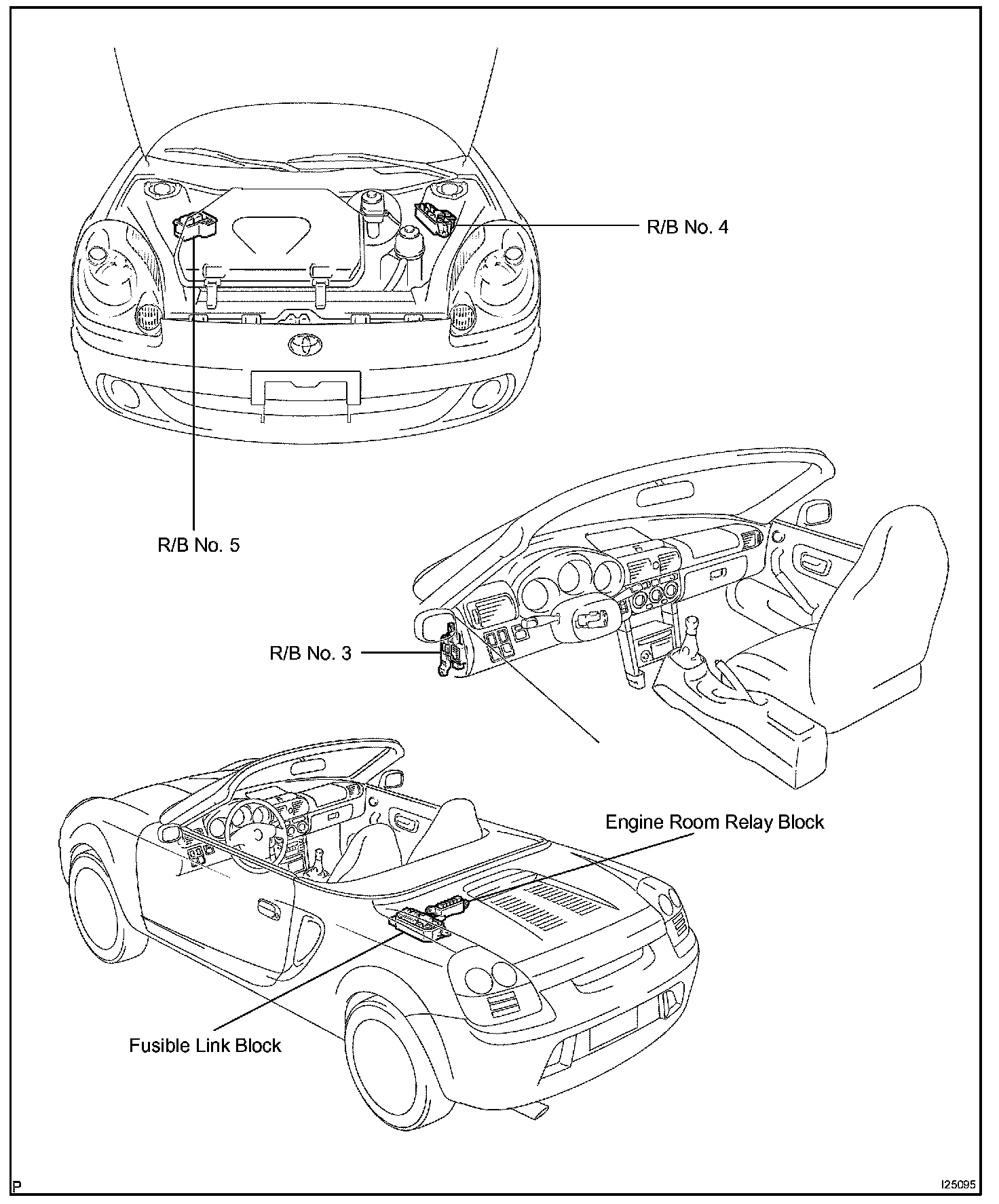

Power Source:

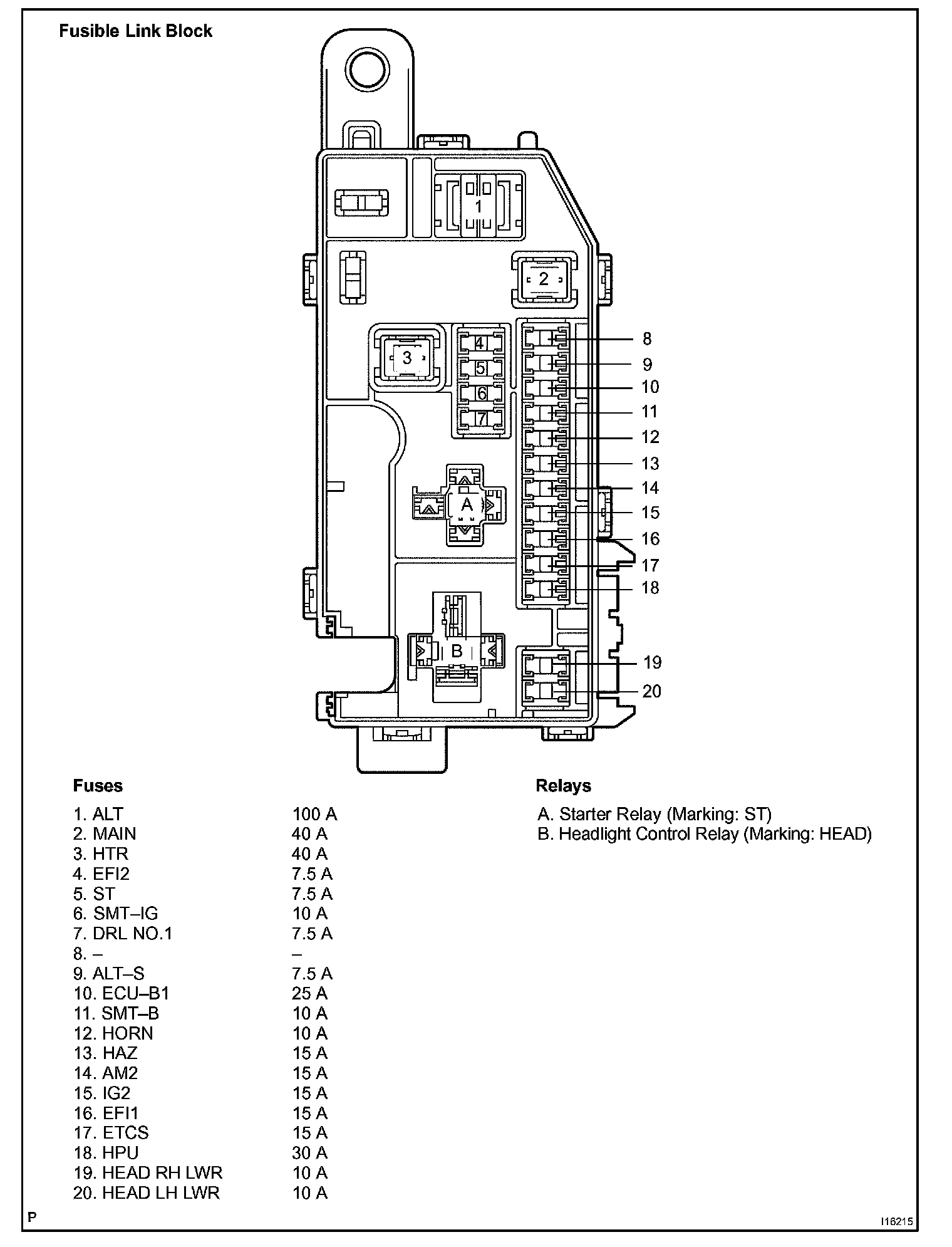

Fusible Link Block:

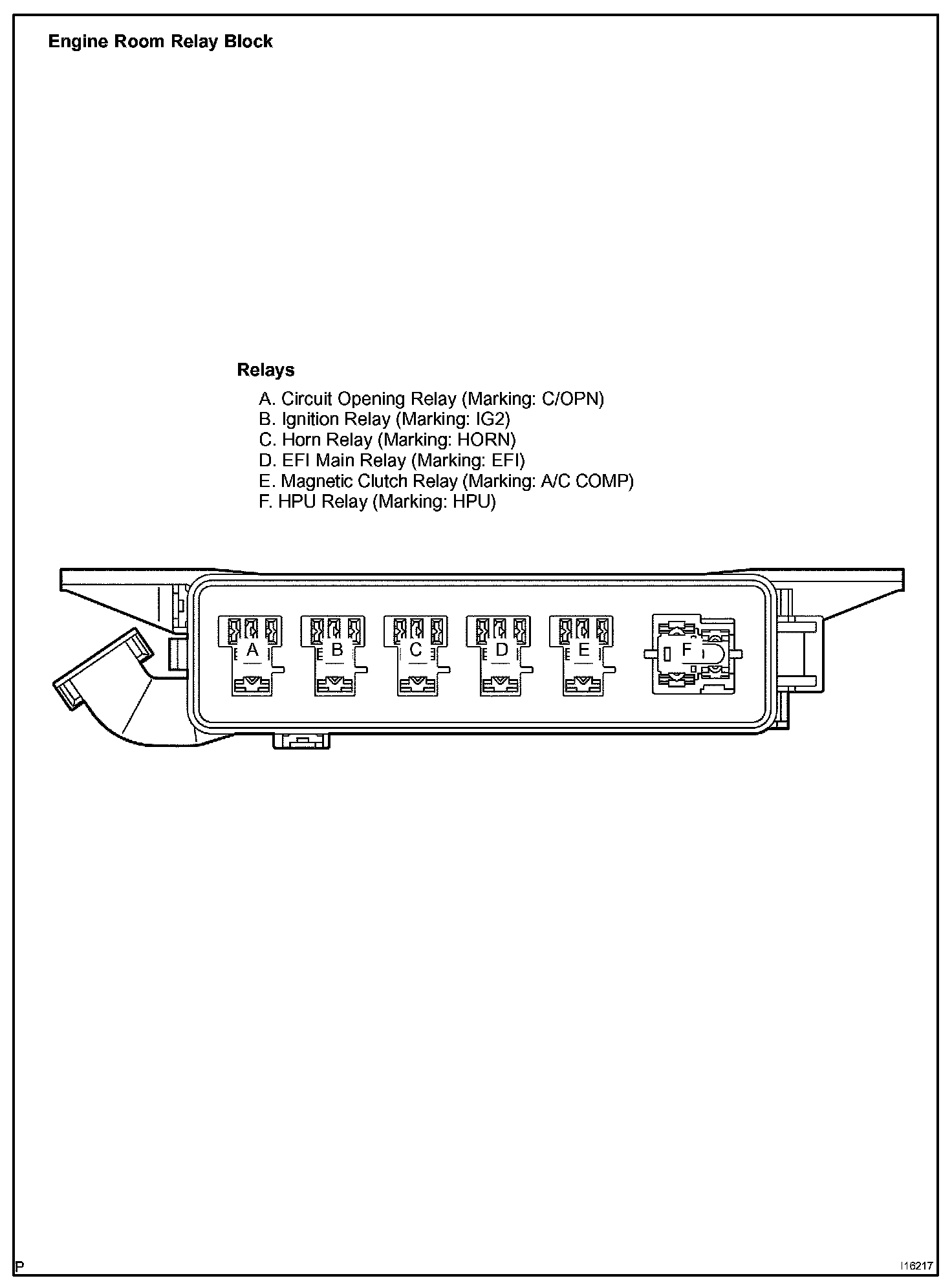

Engine Room Relay Block:

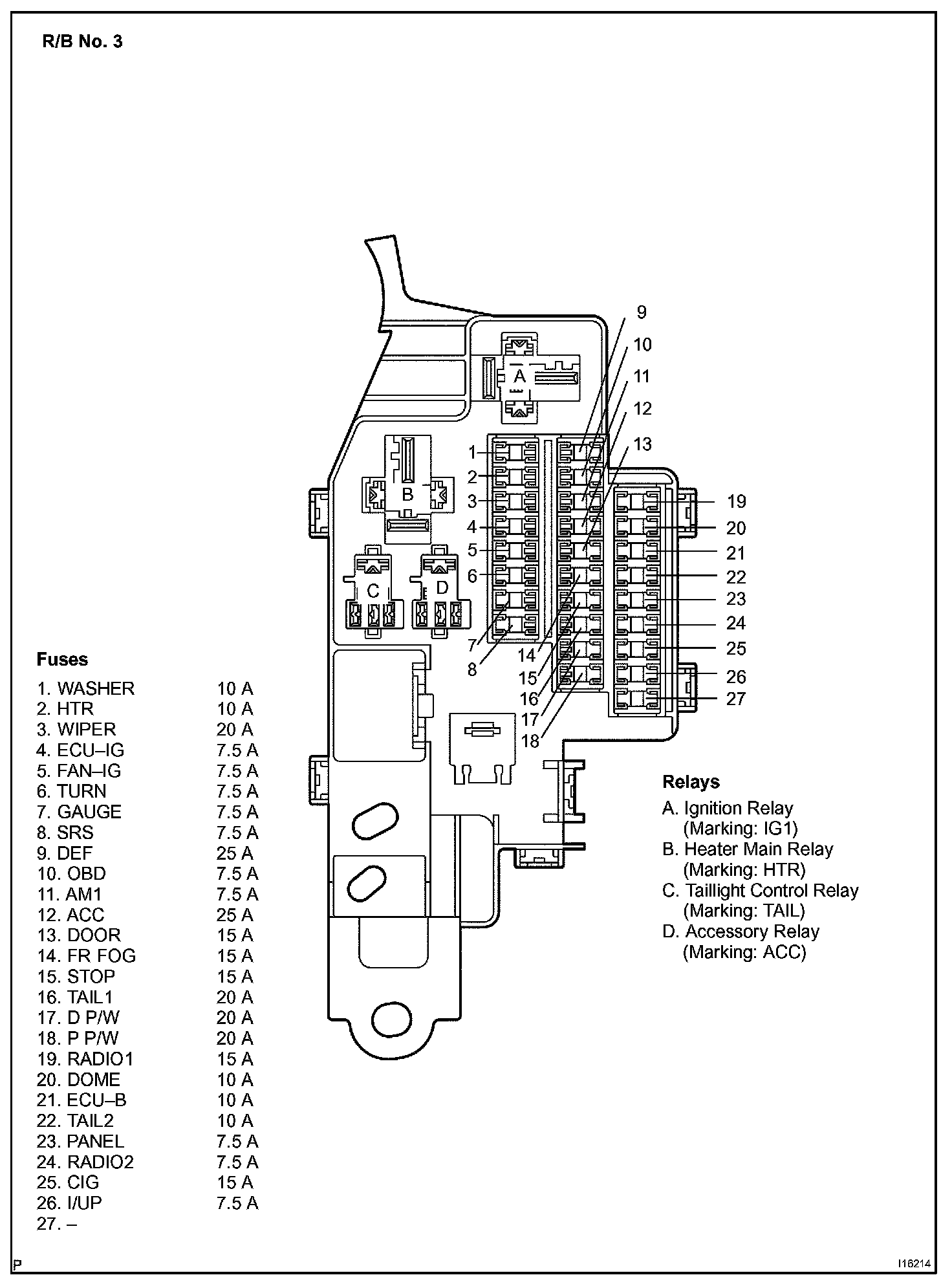

R/B No. 3:

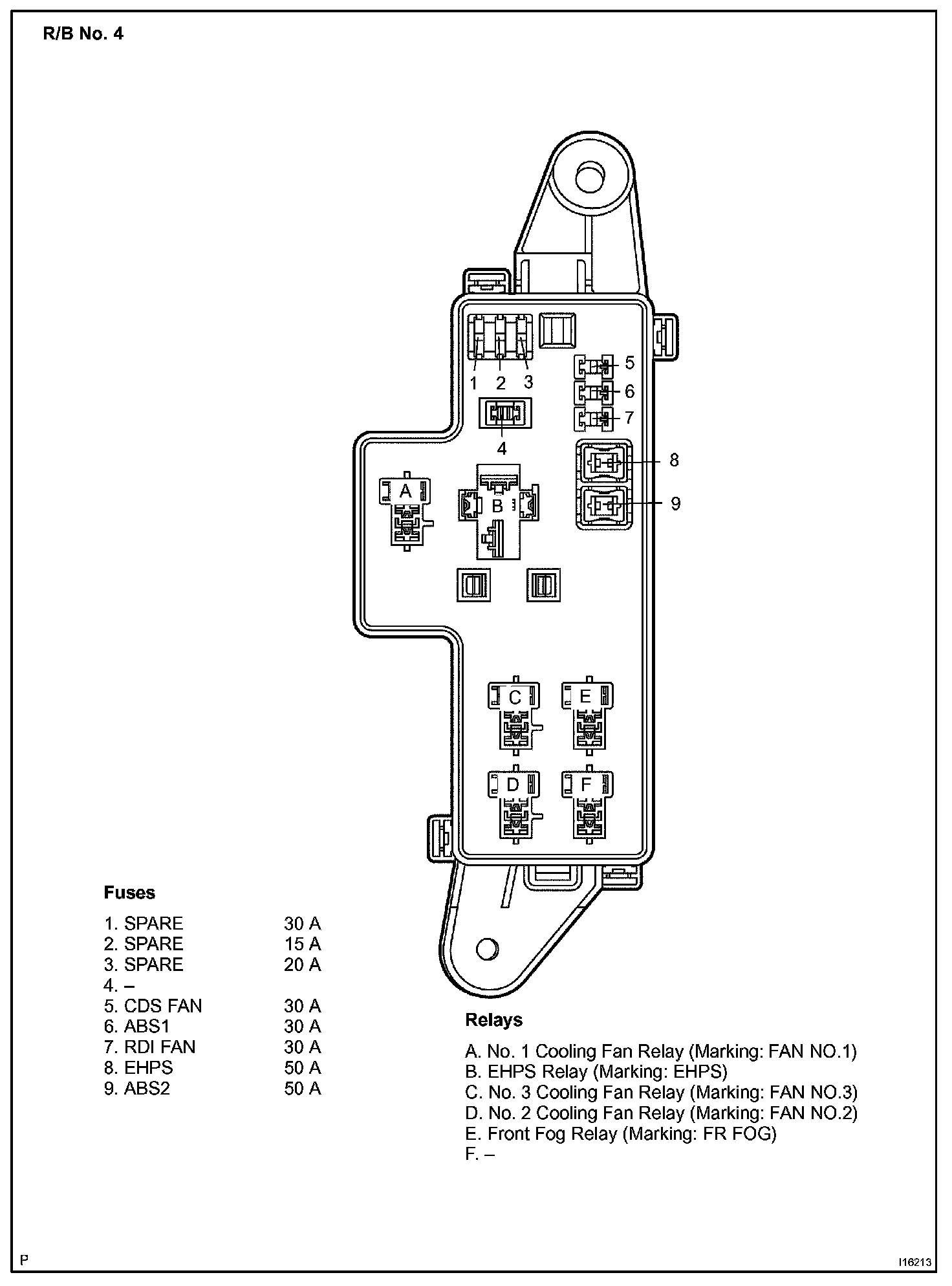

R/B No. 4:

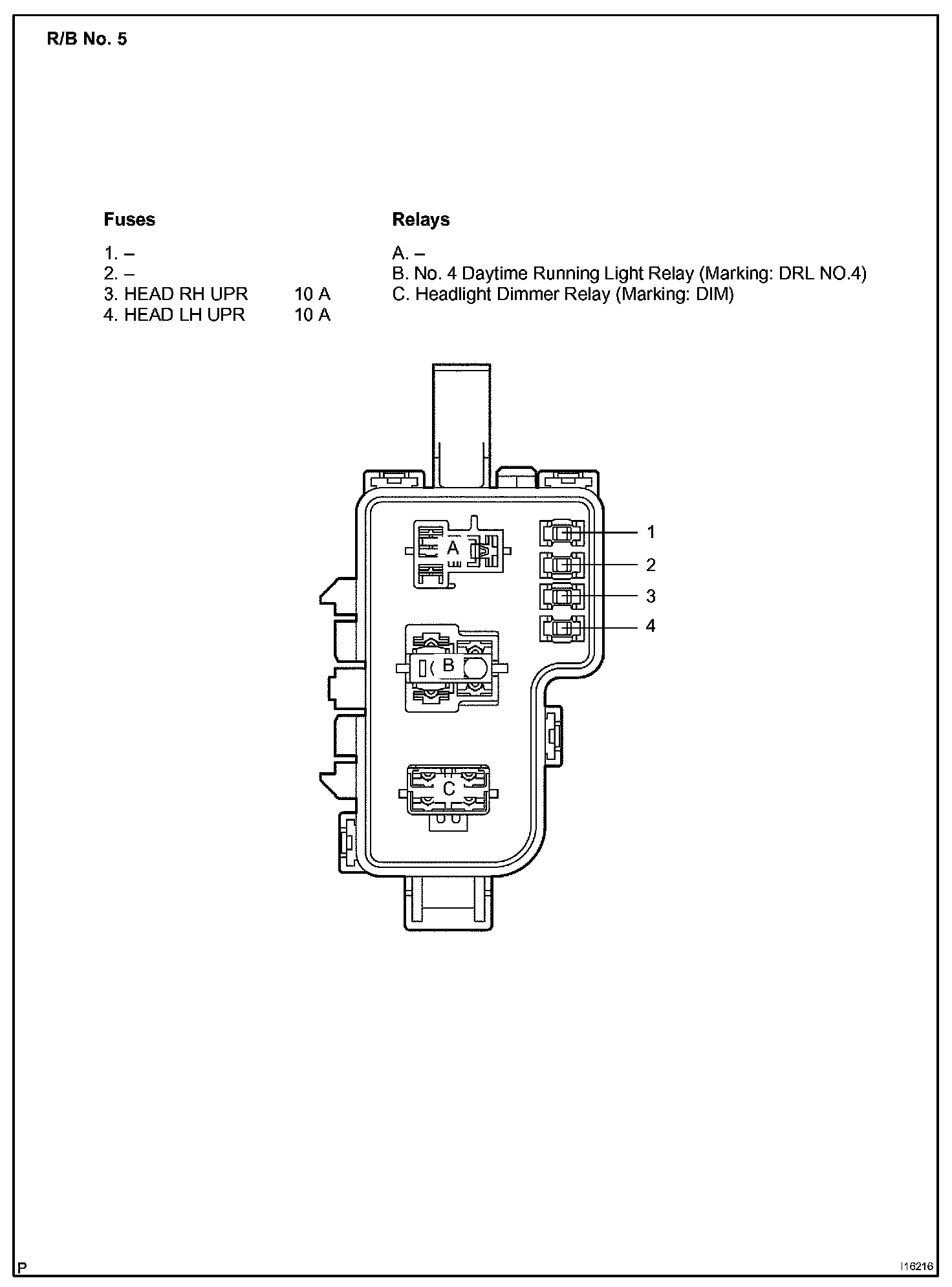

R/B No. 5:
