Home >> Toyota >> 2005 >> Matrix 4WD L4-1.8L (1ZZ-FE) >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By Connector Number >> R2 - S6

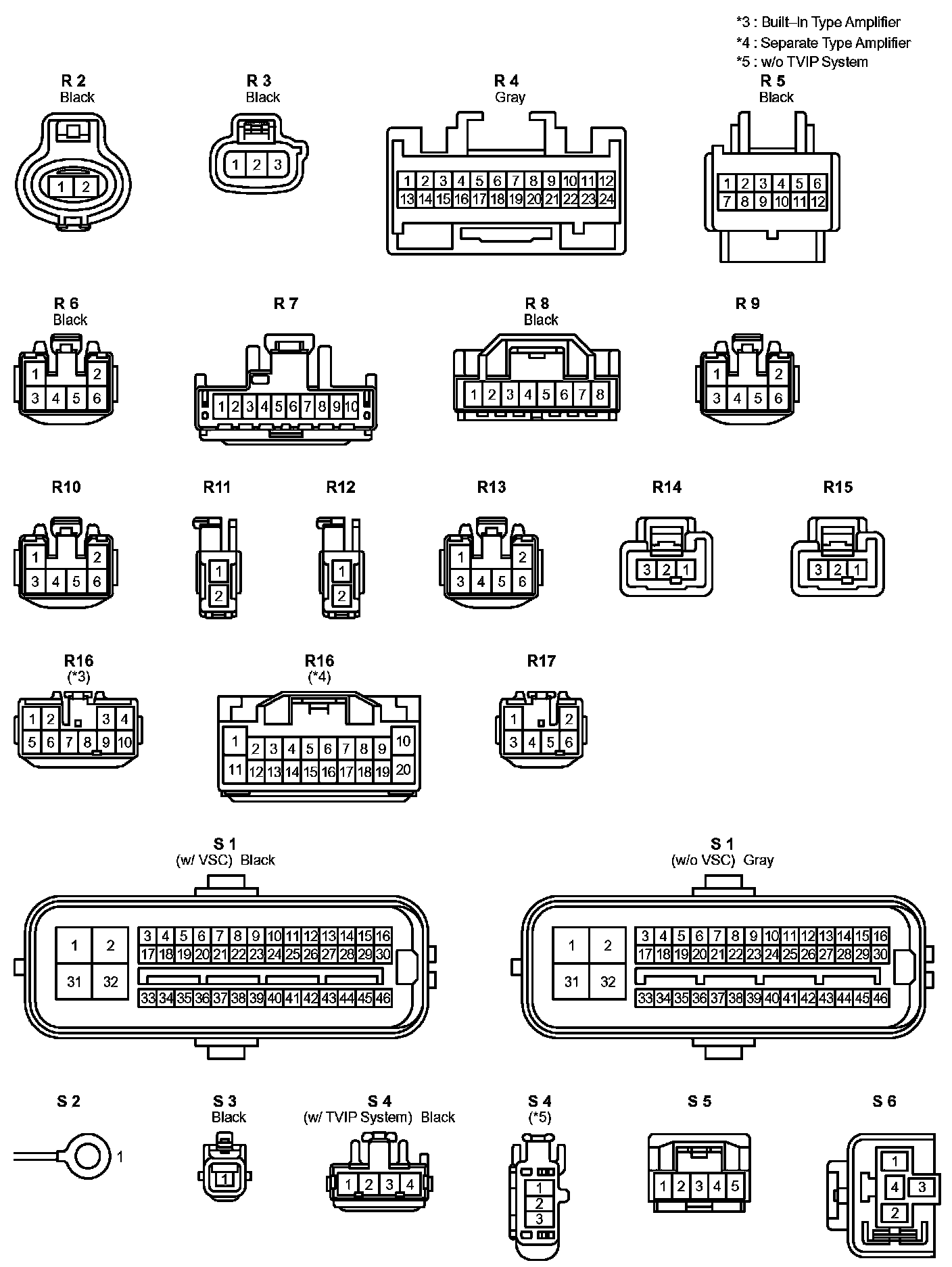

R2 - S6

R2 - S6:
