Pressure Plate

CLUTCH COVER ASSEMBLY

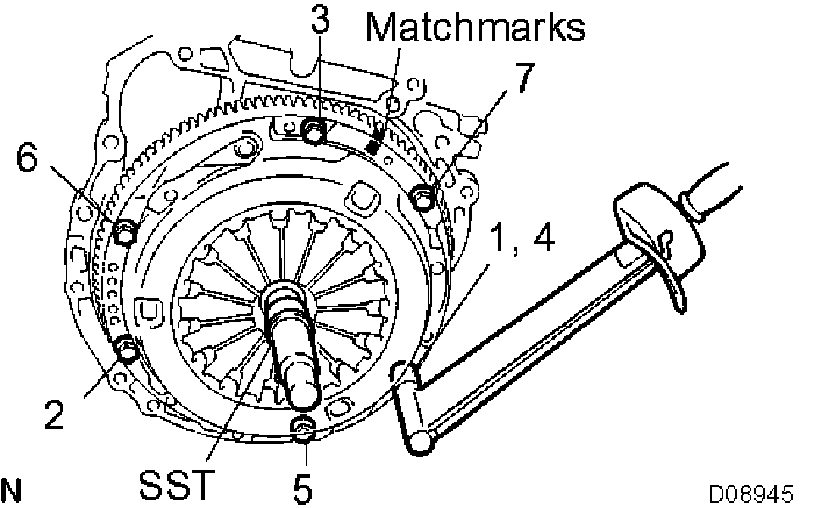

a) Align the matchmark on the clutch cover assembly with the one on the flywheel sub-assembly.
b) Following the procedures shown in the illustration, tighten the 6 bolts starting at the bolt located near the knock pin on the top.
Torque: 19 Nm (195 kgf-cm, 14 ft. lbs.)

HINT:
^ Following the order in the illustration, gradually tighten the bolts one at a time.
^ Check that the disc is in the center by lightly moving SST up and down, right and left, and then tighten the bolts.
