Speed Sensor, Front
SPEED SENSOR FRONT LHREPLACEMENT
HINT: Use the same procedures for the RH side and LH side. The procedures listed below are for the LH side.
1. REMOVE FRONT WHEEL
2. REMOVE FRONT FENDER LINER LH
3. REMOVE SPEED SENSOR FRONT LH

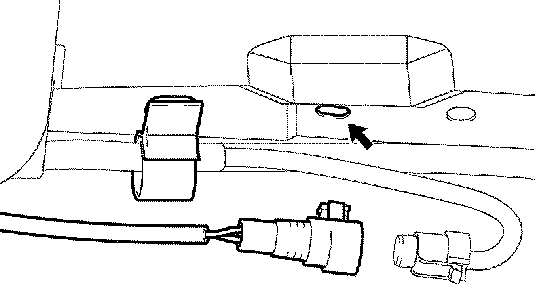

a. Disengage the clamp and disconnect the connector.

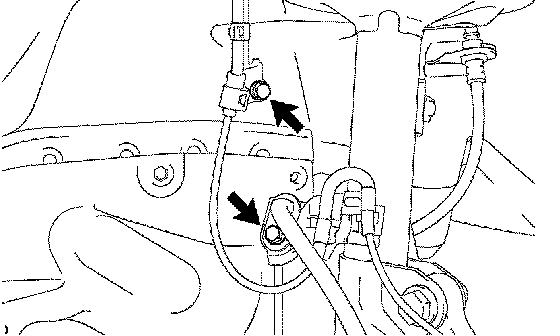

b. Remove the 2 bolts and separate the speed sensor front from the body and shock absorber.

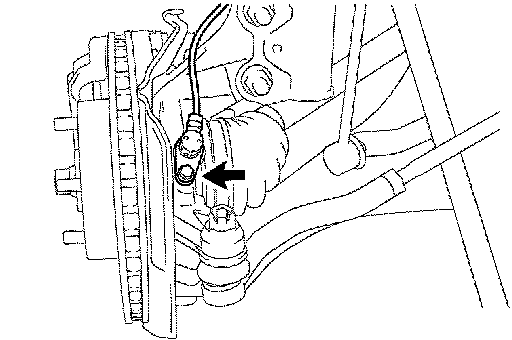

c. Remove the bolt and speed sensor front LH.
NOTICE: Prevent foreign matter from attaching to the sensor tip.
4. INSTALL SPEED SENSOR FRONT LH

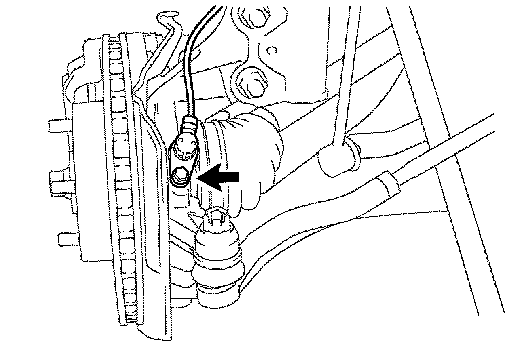

a. Install the speed sensor front LH with the bolt.
Torque: 8.0 Nm (82 kgf-cm, 71 inch lbs.)
NOTICE: Prevent foreign matter from attaching to the sensor tip.

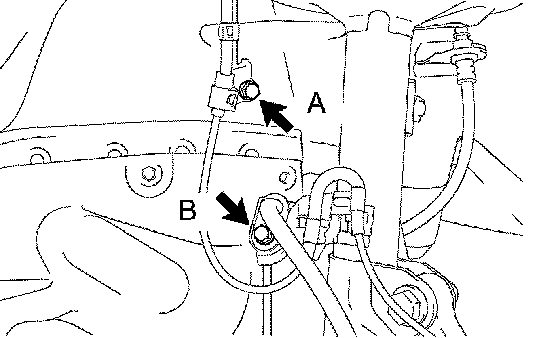

b. Install the speed sensor front with the 2 bolts.
Torque:
Bolt A: 8.0 Nm (82 kgf-cm, 71 inch lbs.)
Bolt B: 29 Nm (296 kgf-cm, 21 ft. lbs.)

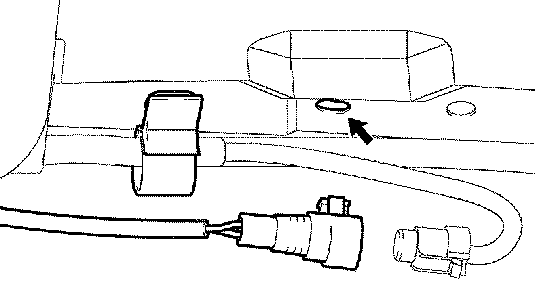

c. Connect the connector and engage the clamp.
5. INSTALL FRONT FENDER LINER LH
6. INSTALL FRONT WHEEL
Torque: 103 Nm (1,050 kgf-cm, 76 ft. lbs.)
7. CHECK ABS SPEED SENSOR SIGNAL
