Starting System: Description and Operation

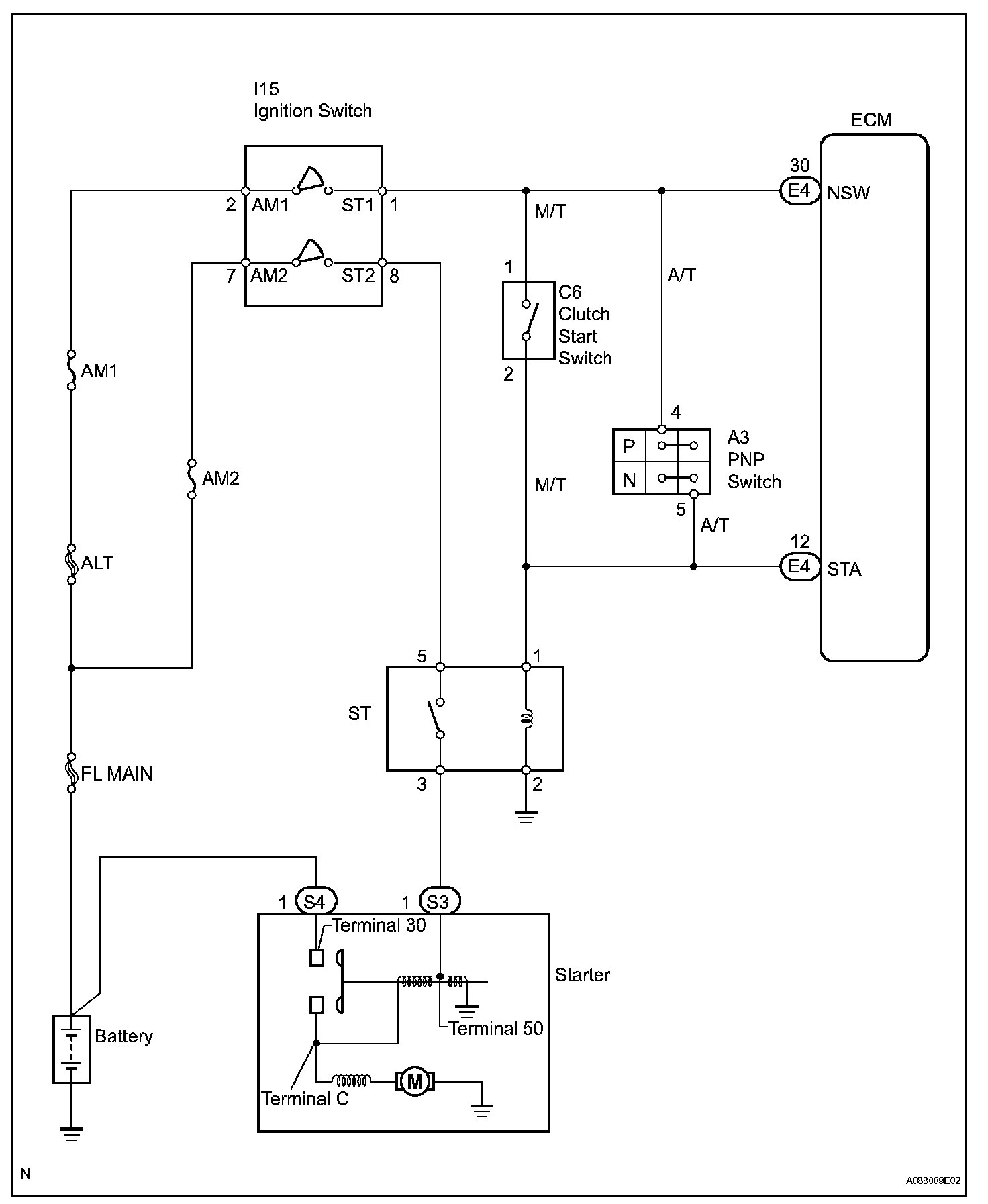

System Diagram:
SYSTEM DIAGRAM
The starting system rotates the starter motor according to the signals from the ignition switch and PNP switch or clutch start switch.
SYSTEM DIAGRAM
The starting system rotates the starter motor according to the signals from the ignition switch and PNP switch or clutch start switch.
