Installation

2AZ-FXE IGNITION: IGNITION COIL:

INSTALLATION

1. INSTALL IGNITION COIL ASSEMBLY

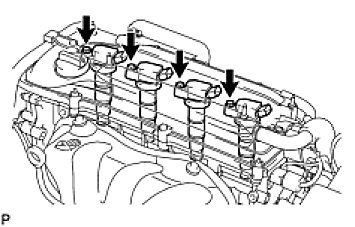

(a) Install the 4 ignition coils with the 4 bolts.
Torque: 9.0 Nm (92 kgf-cm, 80 in-lbf)
(b) Connect the 4 ignition coil connectors.
2. INSTALL NO. 1 ENGINE COVER Installation

3. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL Installation

4. INSTALL LUGGAGE TRIM SERVICE HOLE COVER Installation

5. PERFORM INITIALIZATION
(a) Perform initialization procedure Repair Instruction - Initialization.
HINT: Some vehicle systems require initialization after reconnecting the cable to the negative battery terminal.
