Crankshaft, Engine
CRANKSHAFTMaximum circle runout: 0.03 mm (0.0012 in.)
Standard diameter: 54.988 to 55.000 mm (2.1649 to 2.1654 in.)
Maximum taper and distortion: 0.003 mm (0.0001 in.)
Using a micrometer, measure the diameter of each crank pin.
Standard diameter: 47.990 to 48.000 mm (1.8894 to 1.8898 in.)
Maximum taper and distortion: 0.003 mm (0.0001 in.)

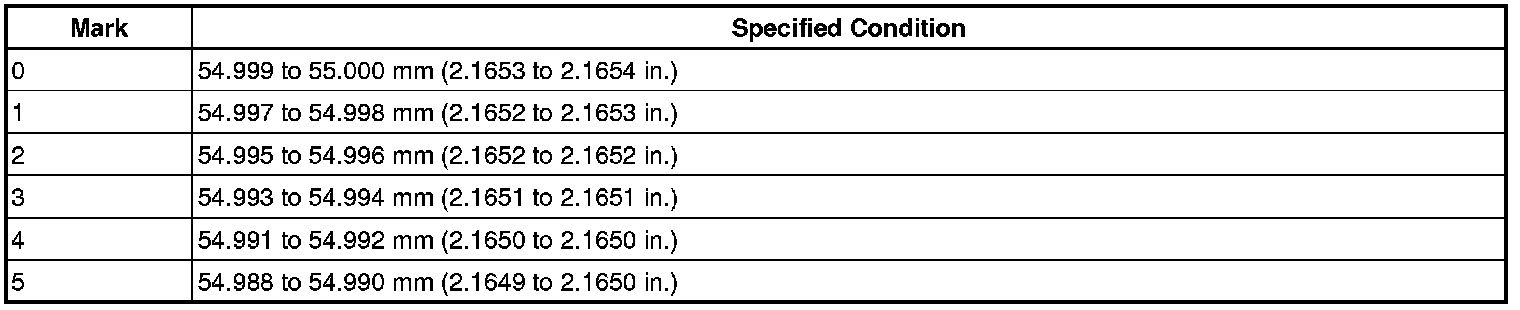

Standard diameter (Reference):
