Connector Views
Connector Views
I3 (Outer Rear View Mirror (LH)):

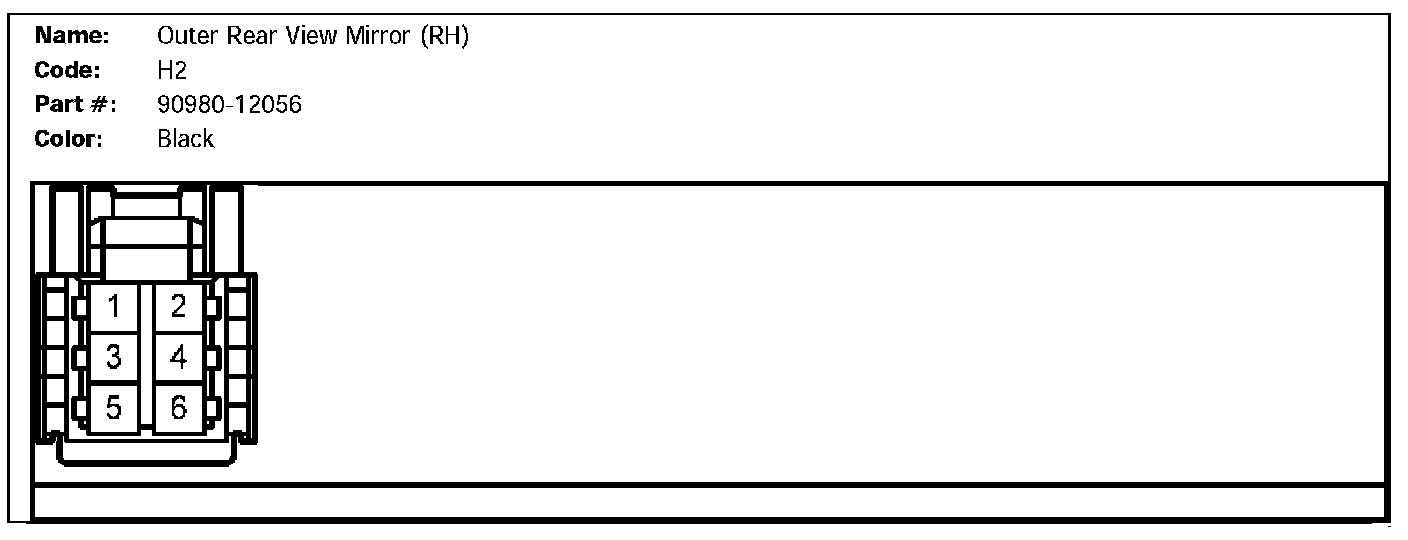

H2 (Outer Rear View Mirror (RH)):

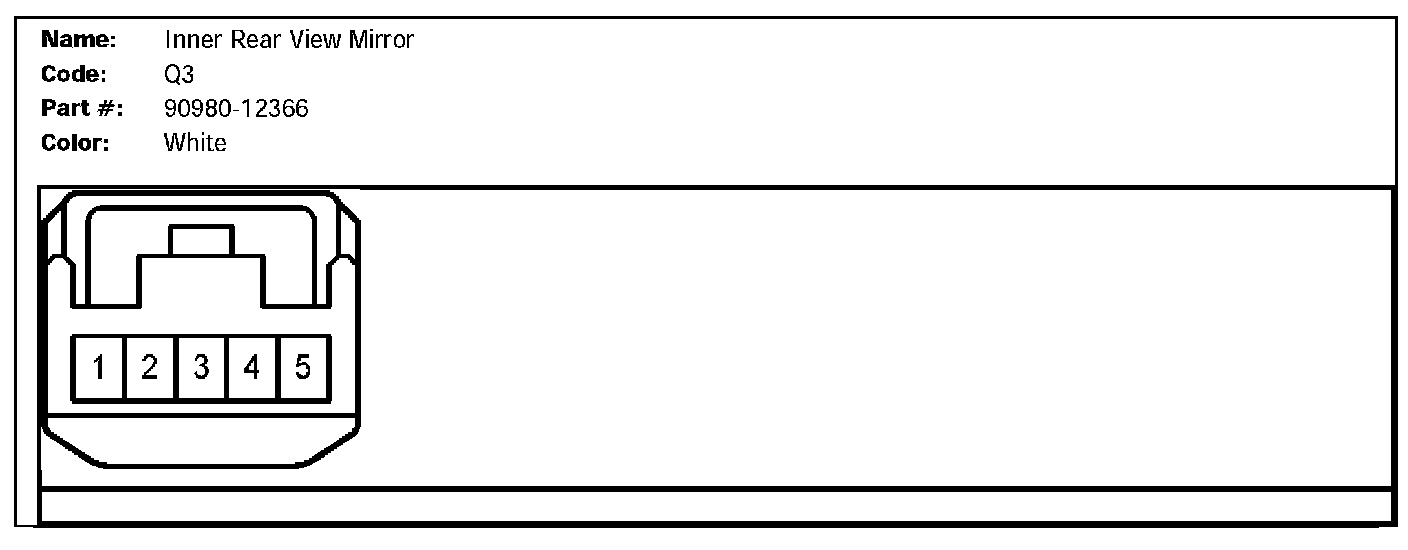

Q3 (Inner Rear View Mirror):
