Home >> Toyota >> 2008 >> Camry V6-3.5L (2GR-FE) >> Repair and Diagnosis >> Diagrams >> Connector Views >> Relay Box >> J/B No.3

J/B No.3

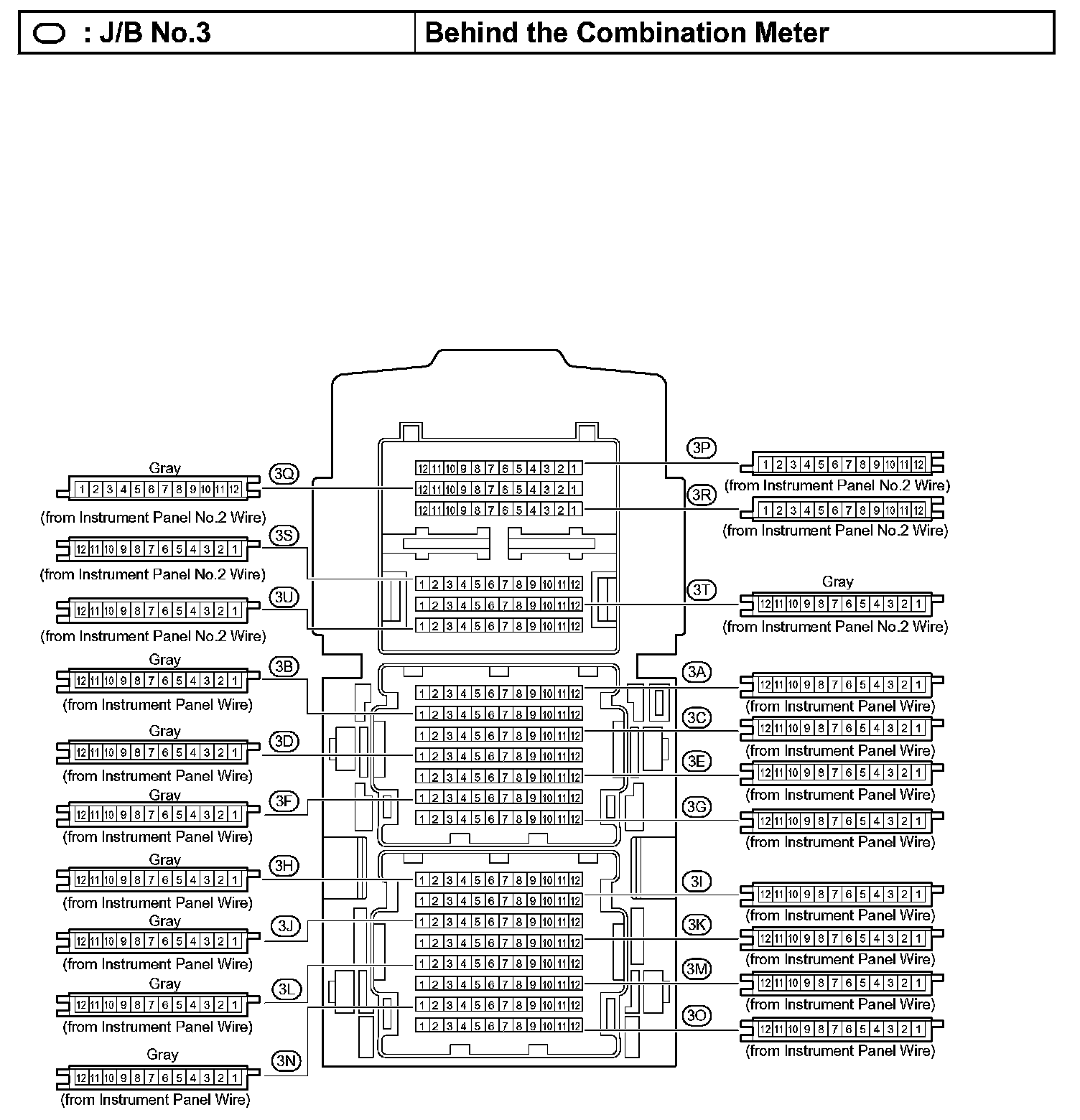

J/B No.3 - Behind The Combination Meter:
