Tire Monitoring System

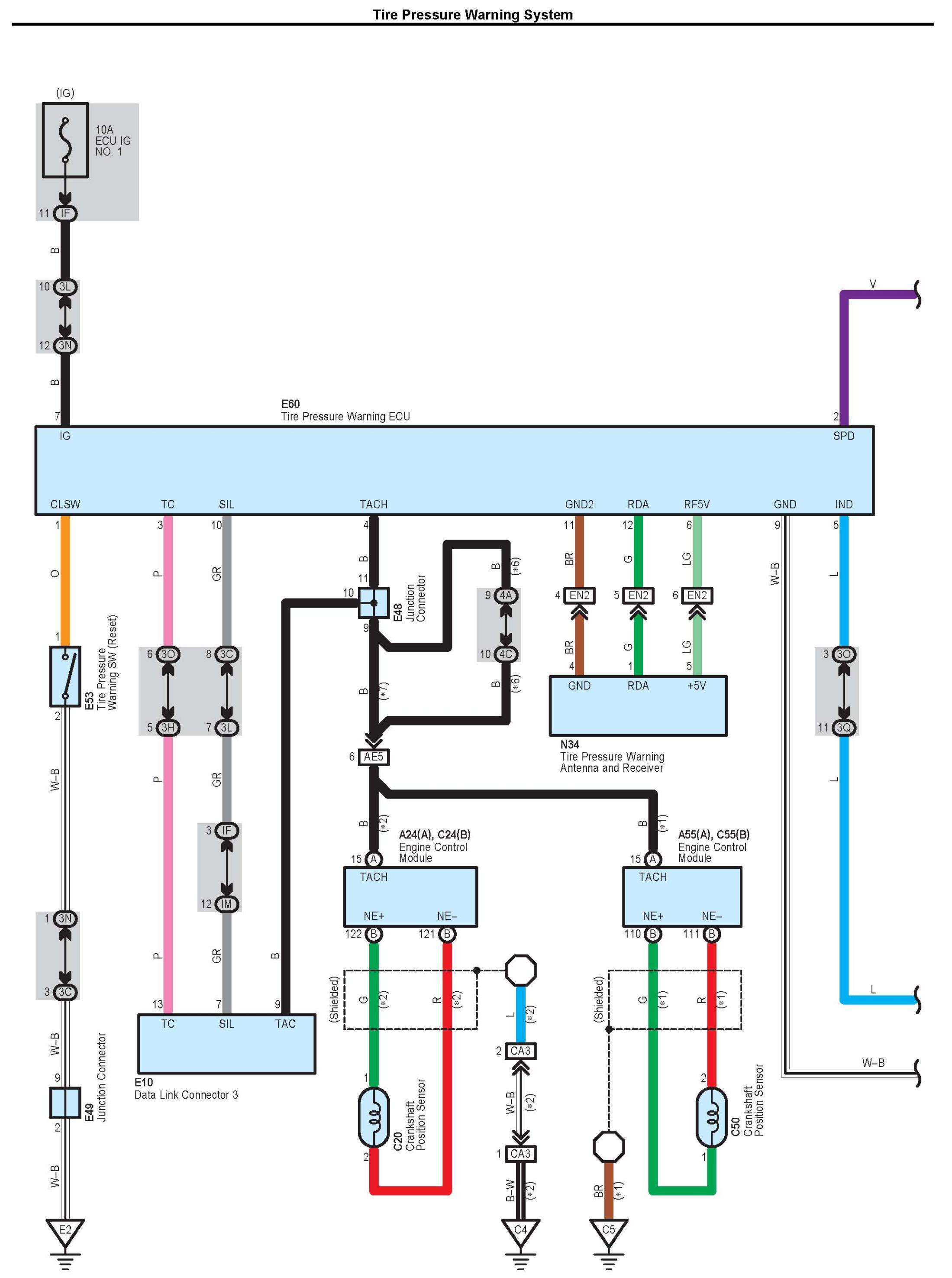

Tire Pressure Warning System Part 1:

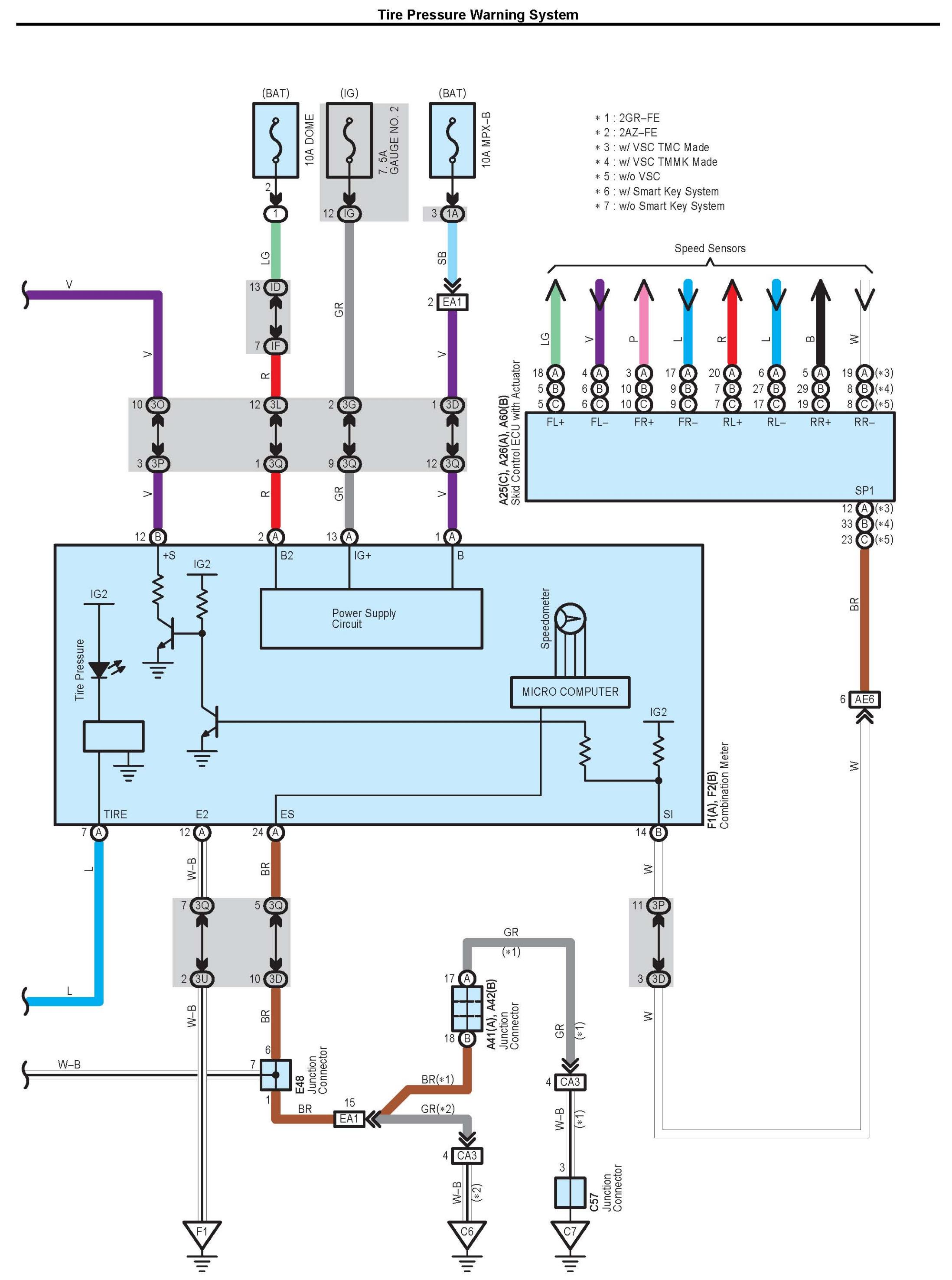

Tire Pressure Warning System Part 2:

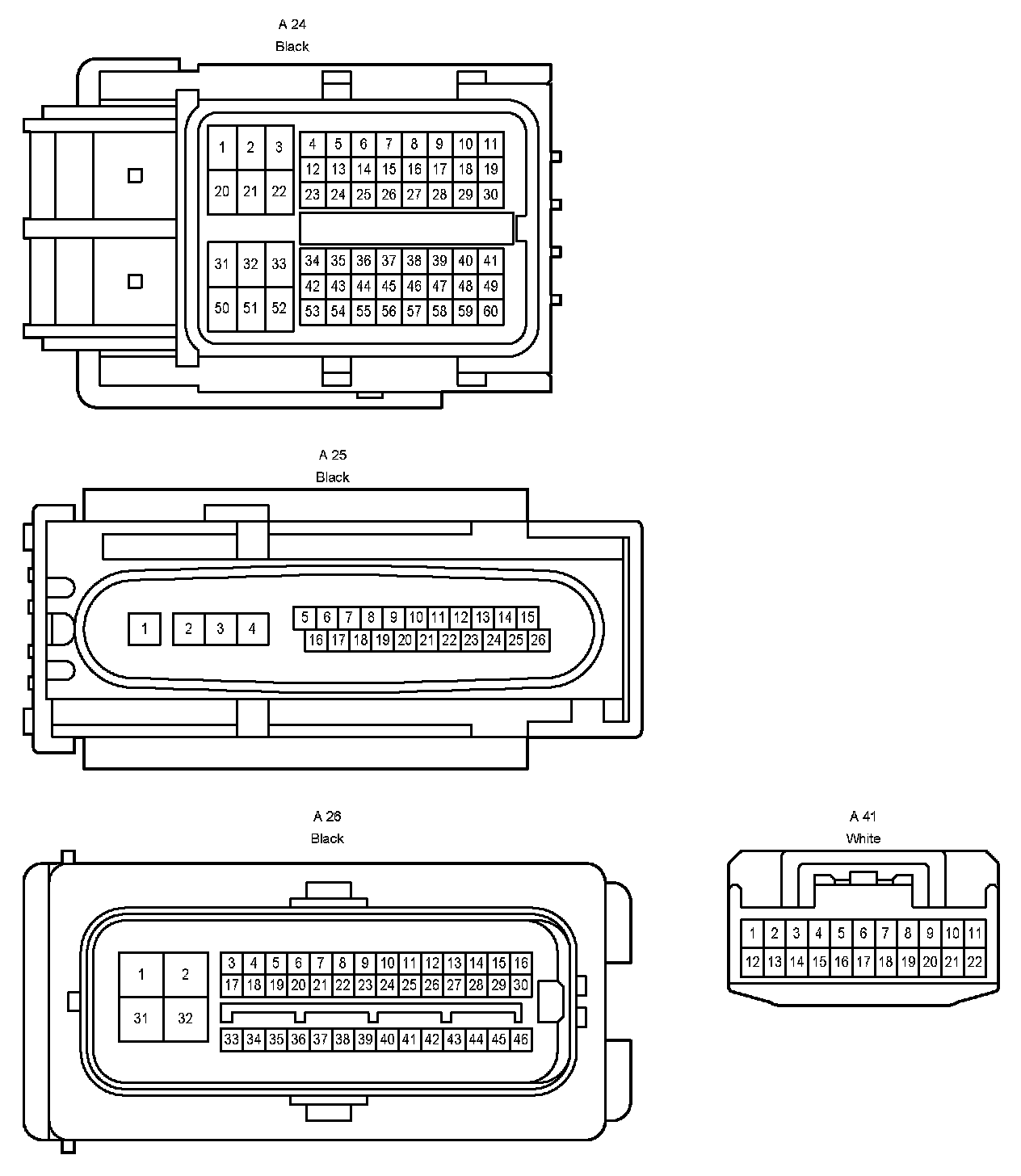

A24 - A41:

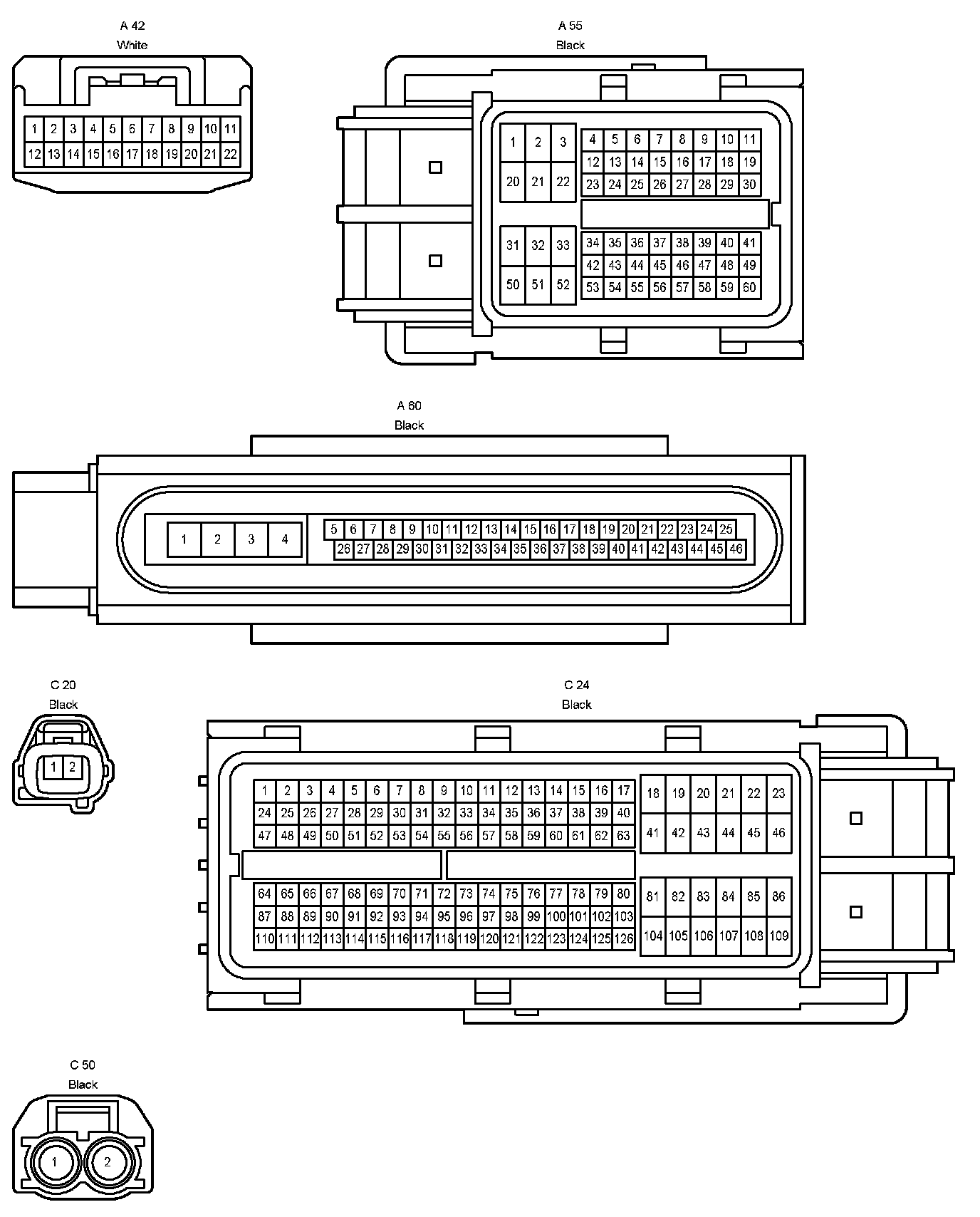

A42 - C50:

C55 - 3L:

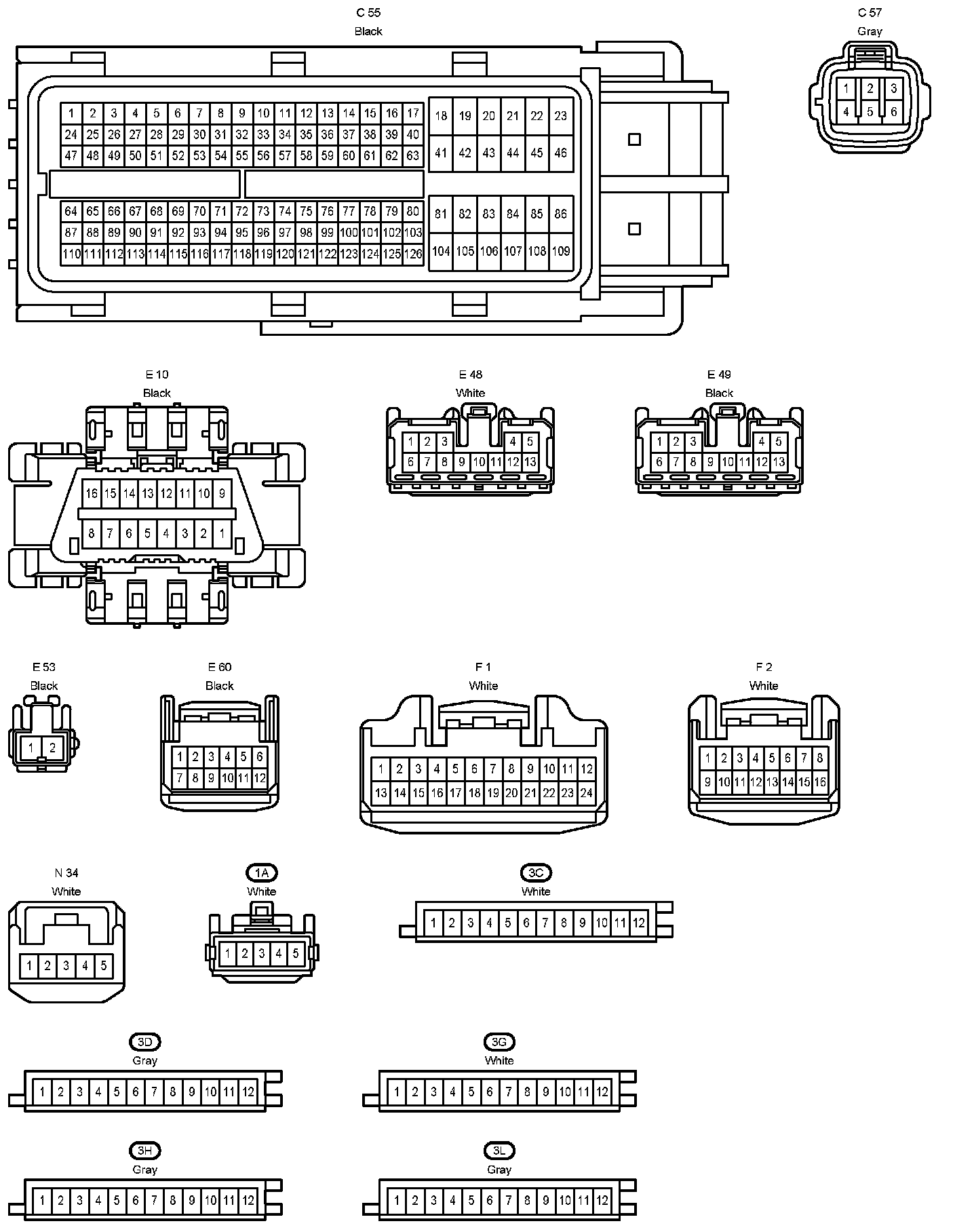

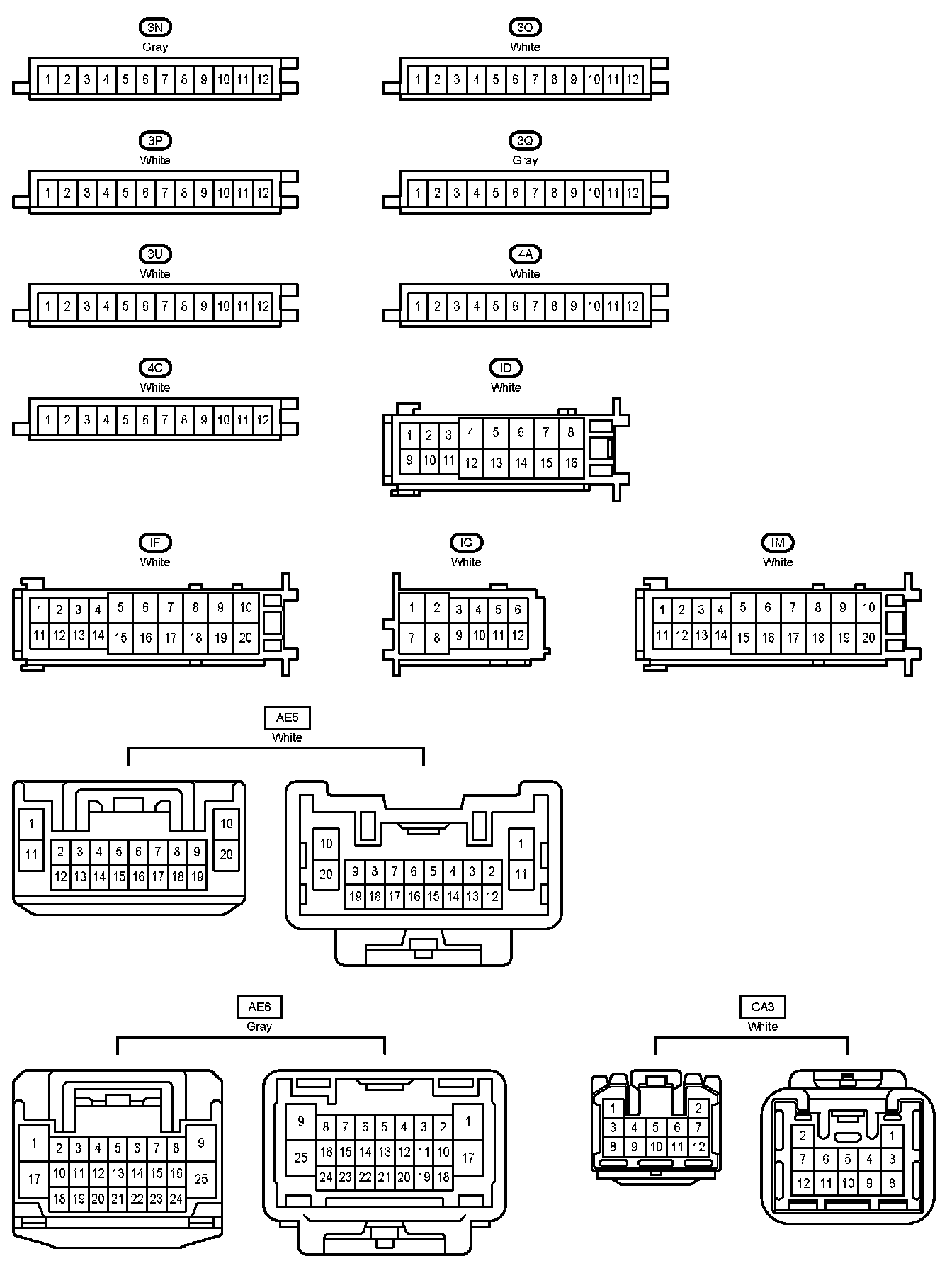

3N - CA3:

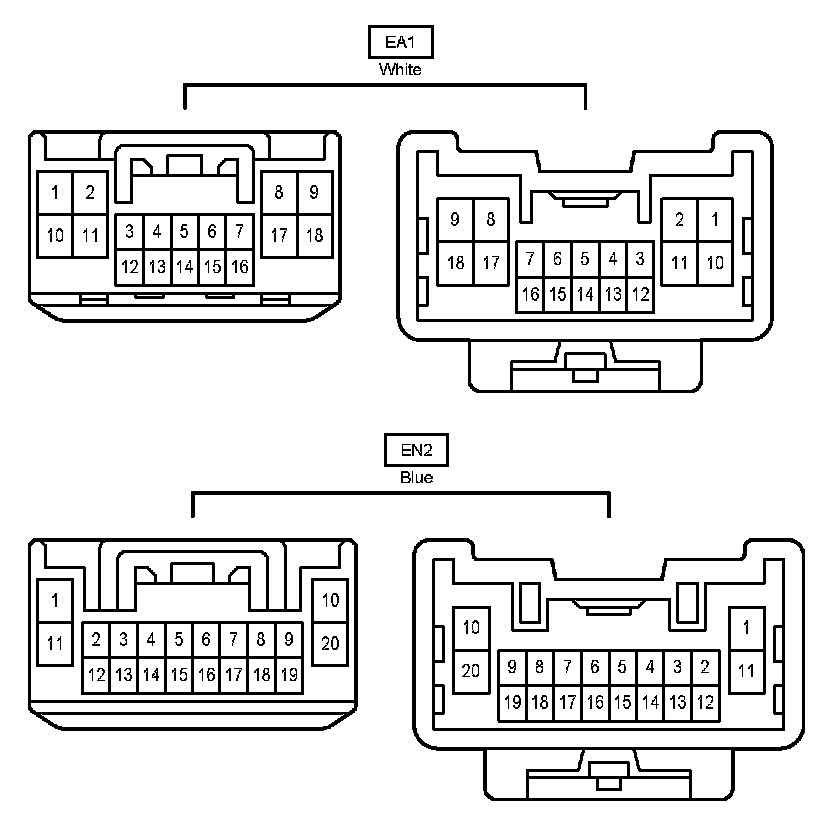

EA1 - EN2:

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations
