SERVICE SPECIFICATIONS: 2GR-FE COOLING:
SERVICE DATA

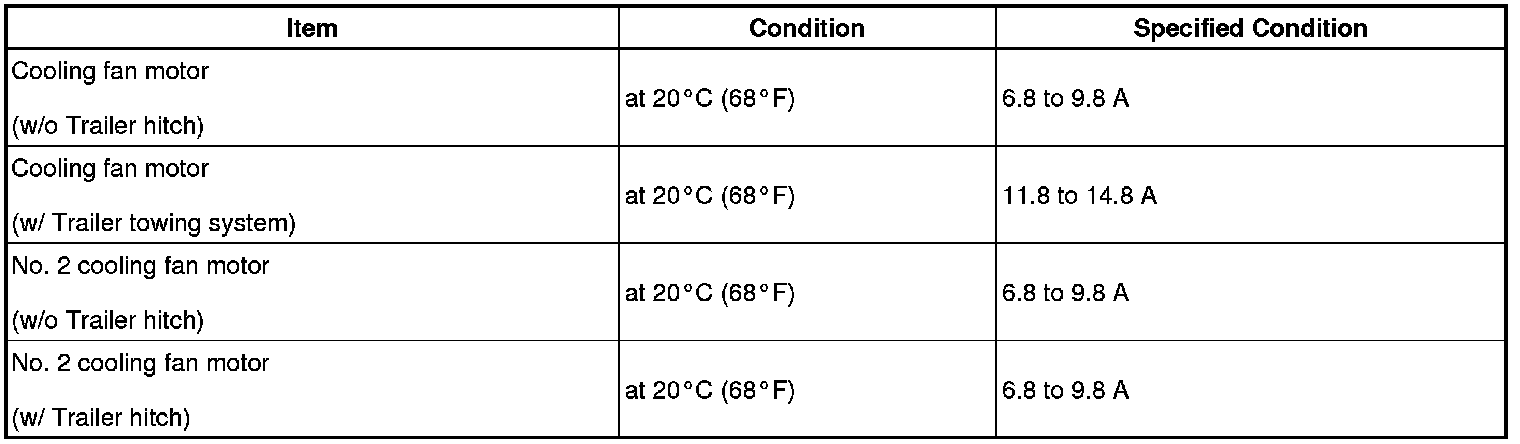

COOLING FAN MOTOR

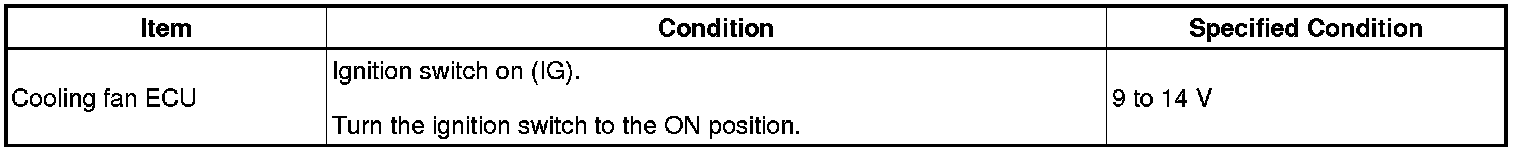

COOLING FAN ECU

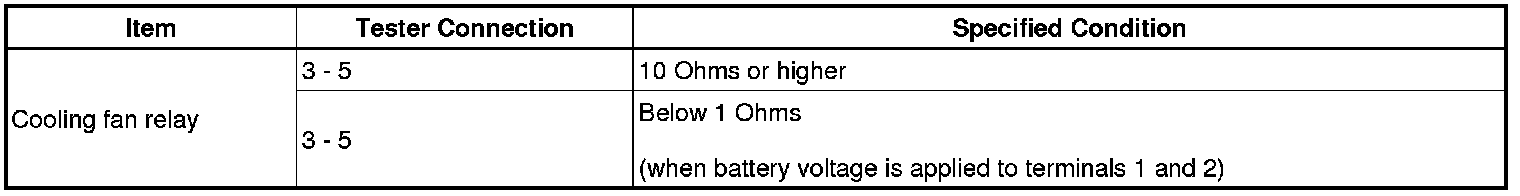

COOLING FAN RELAY
