Installation

WIPER AND WASHER: FRONT WASHER MOTOR:

INSTALLATION

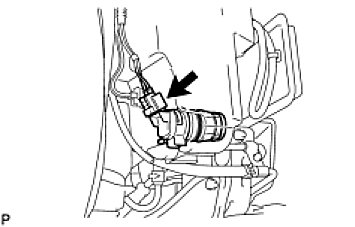

1. INSTALL WINDSHIELD WASHER MOTOR AND PUMP ASSEMBLY





(a) Install the windshield washer motor and pump assembly.
(b) Connect the connector.

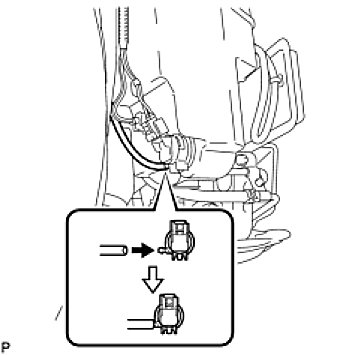

2. FILL WASHER JAR WITH WASHER FLUID





(a) Connect the washer hose to the windshield washer motor and pump assembly and fill the washer jar with washer fluid.
3. INSTALL FRONT BUMPER ASSEMBLY (w/ Fog Light) (Installation)

4. INSTALL FRONT BUMPER ASSEMBLY (w/o Fog Light) (Installation)

5. INSTALL COOL AIR INTAKE DUCT SEAL (for 2GR-FE) (Installation)

6. VEHICLE PREPARATION FOR FOG LIGHT AIM ADJUSTMENT (Adjustments)

7. PREPARATION FOR FOG LIGHT AIMING (Adjustments)

8. FOG LIGHT AIMING INSPECTION (Adjustments)

9. FOG LIGHT AIMING ADJUSTMENT (Adjustments)
