Removal








REMOVAL

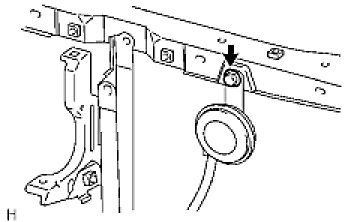

1. REMOVE LOW PITCHED HORN ASSEMBLY





(a) Disconnect the connector.
(b) Remove the bolt and horn.
