Seat Belt Systems: Service and Repair

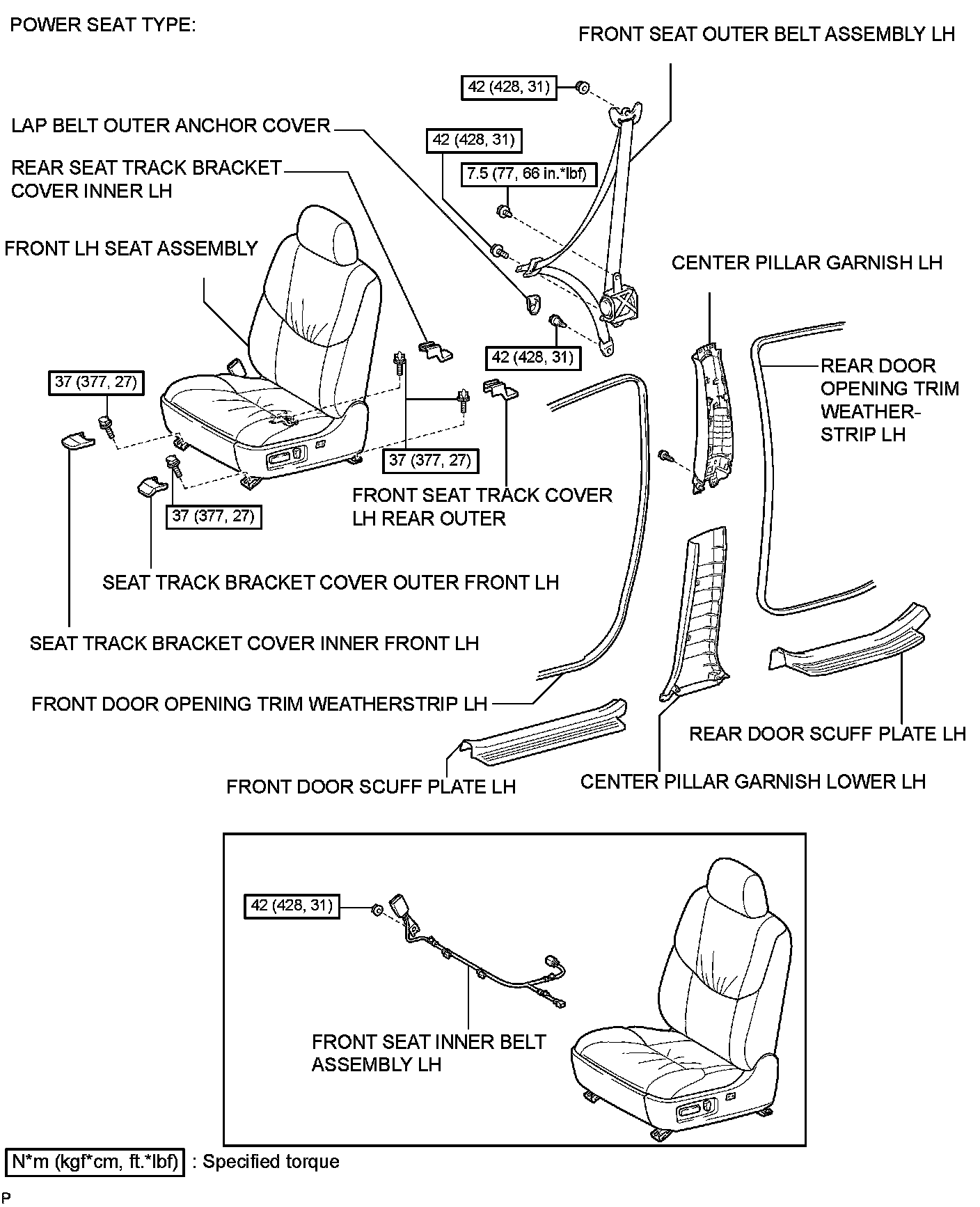

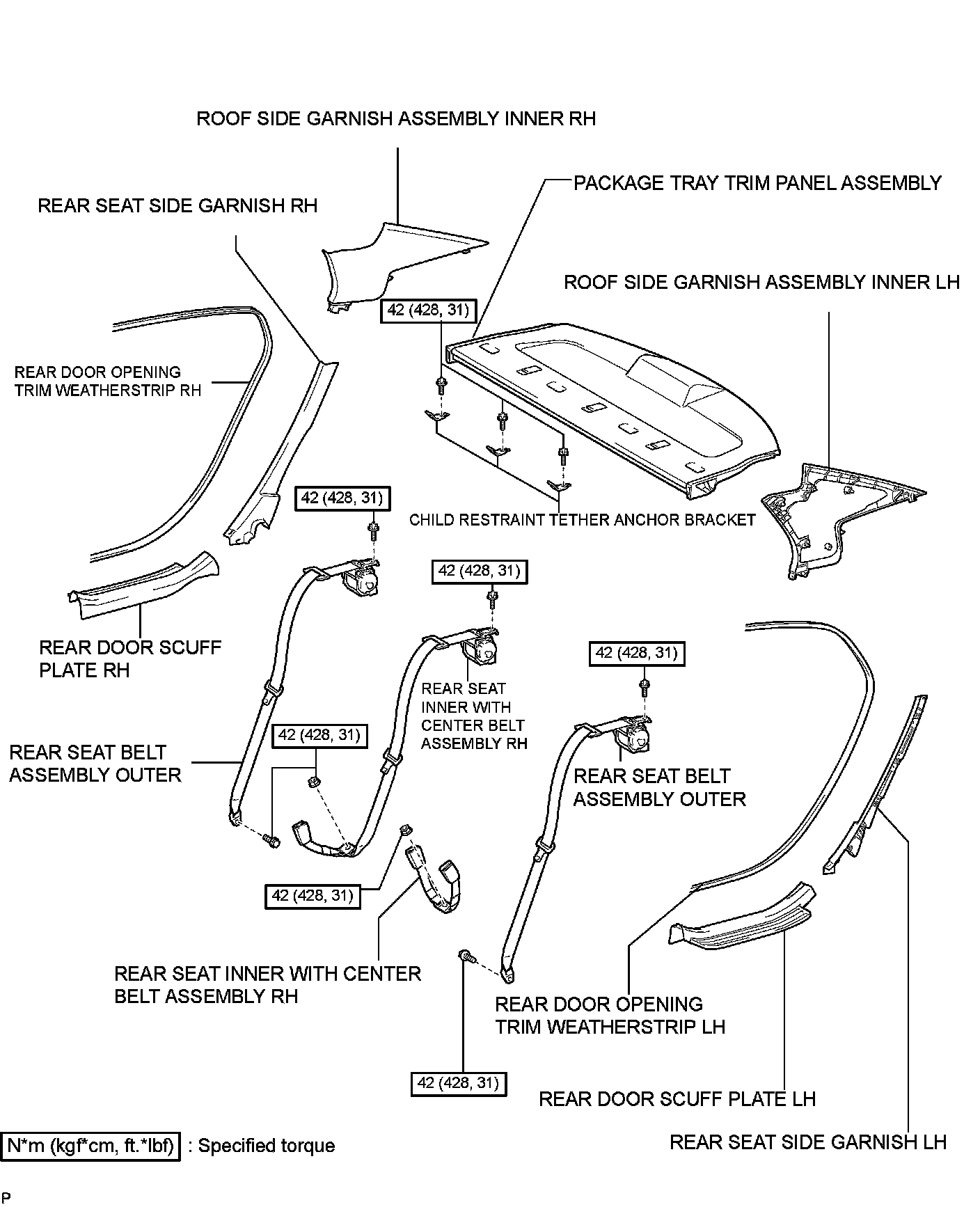

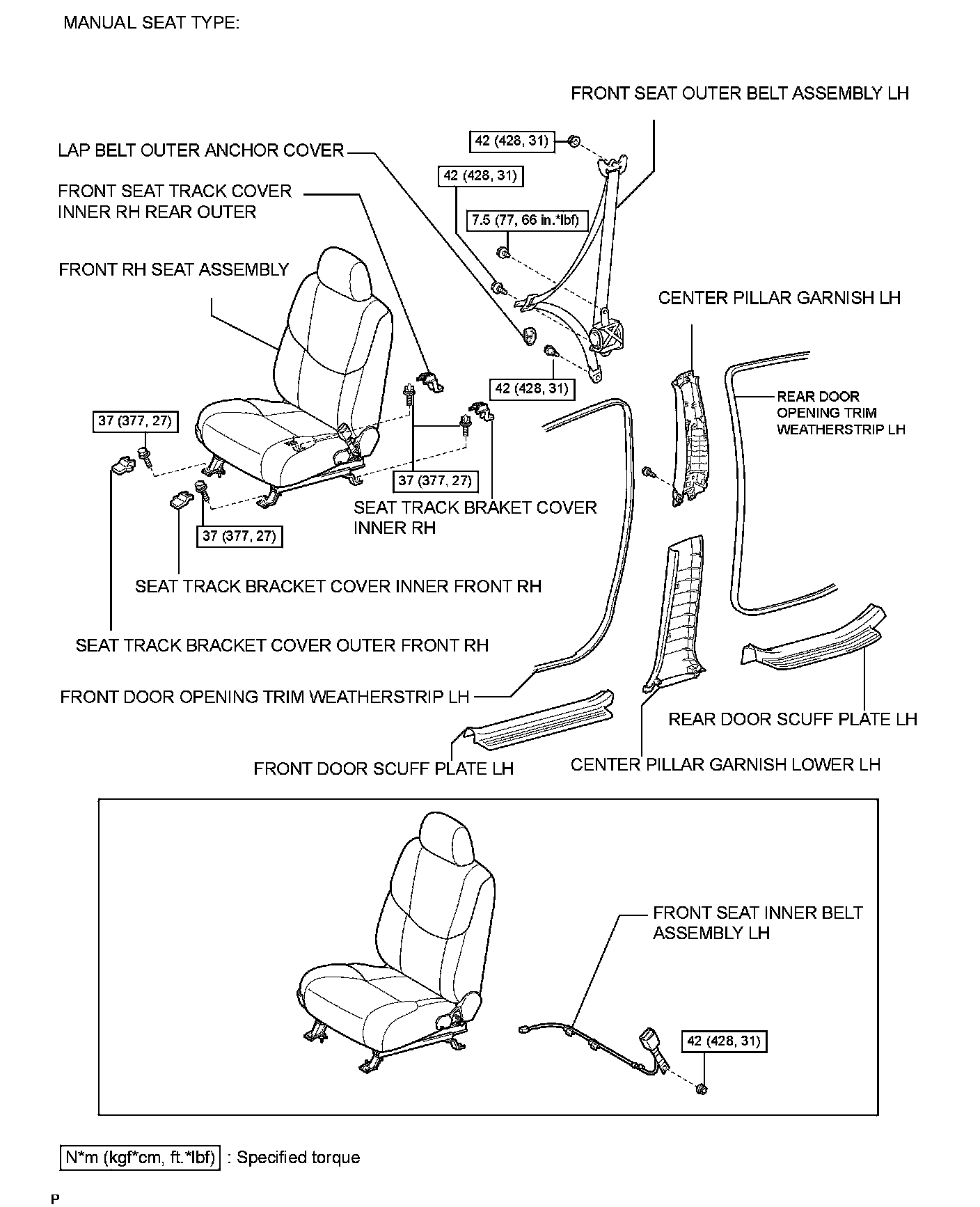

SEAT BELT: SEAT BELT SYSTEM: COMPONENTS

COMPONENTS

ILLUSTRATION
