Home >> Toyota >> 2009 >> Corolla L4-2.4L (2AZ-FE) >> Repair and Diagnosis >> Maintenance >> Tune-up and Engine Performance Checks >> Valve Clearance >> Specifications

Valve Clearance: Specifications

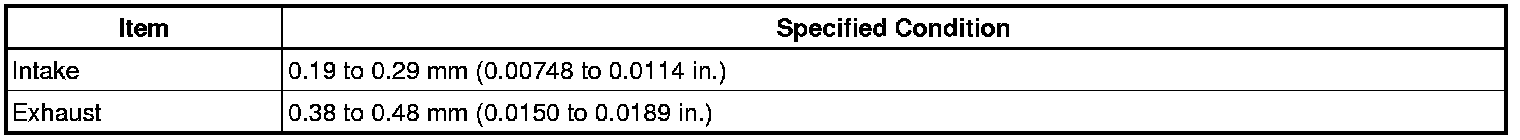

Standard Valve Clearance (Cold):





Standard Valve Clearance (Cold):
