Starting System
Starting System

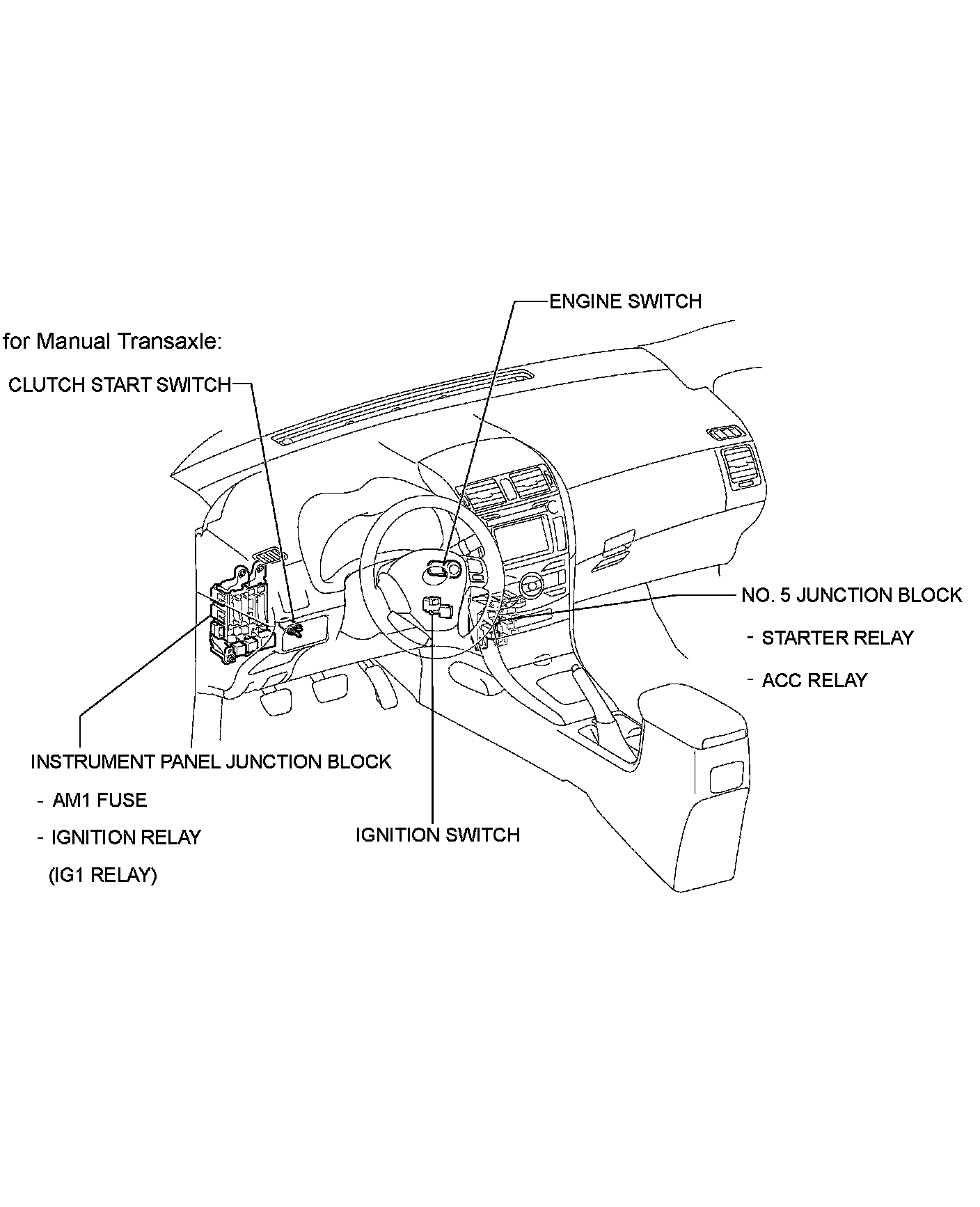

2AZ-FE STARTING: STARTING SYSTEM: PARTS LOCATION
PARTS LOCATION
ILLUSTRATION
