Components








STEERING GEAR / LINKAGE: STEERING GEAR (for 2WD): COMPONENTS

COMPONENTS

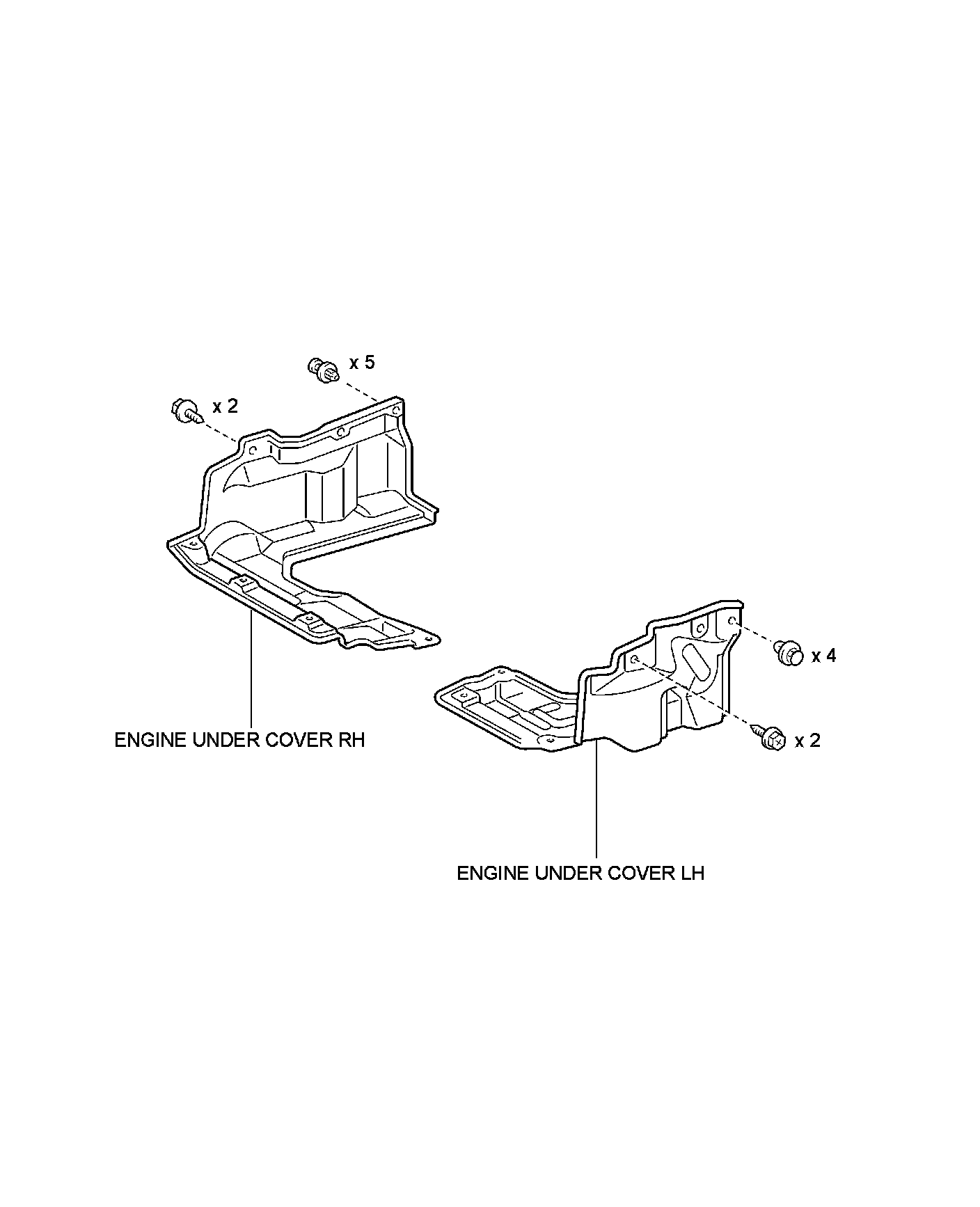

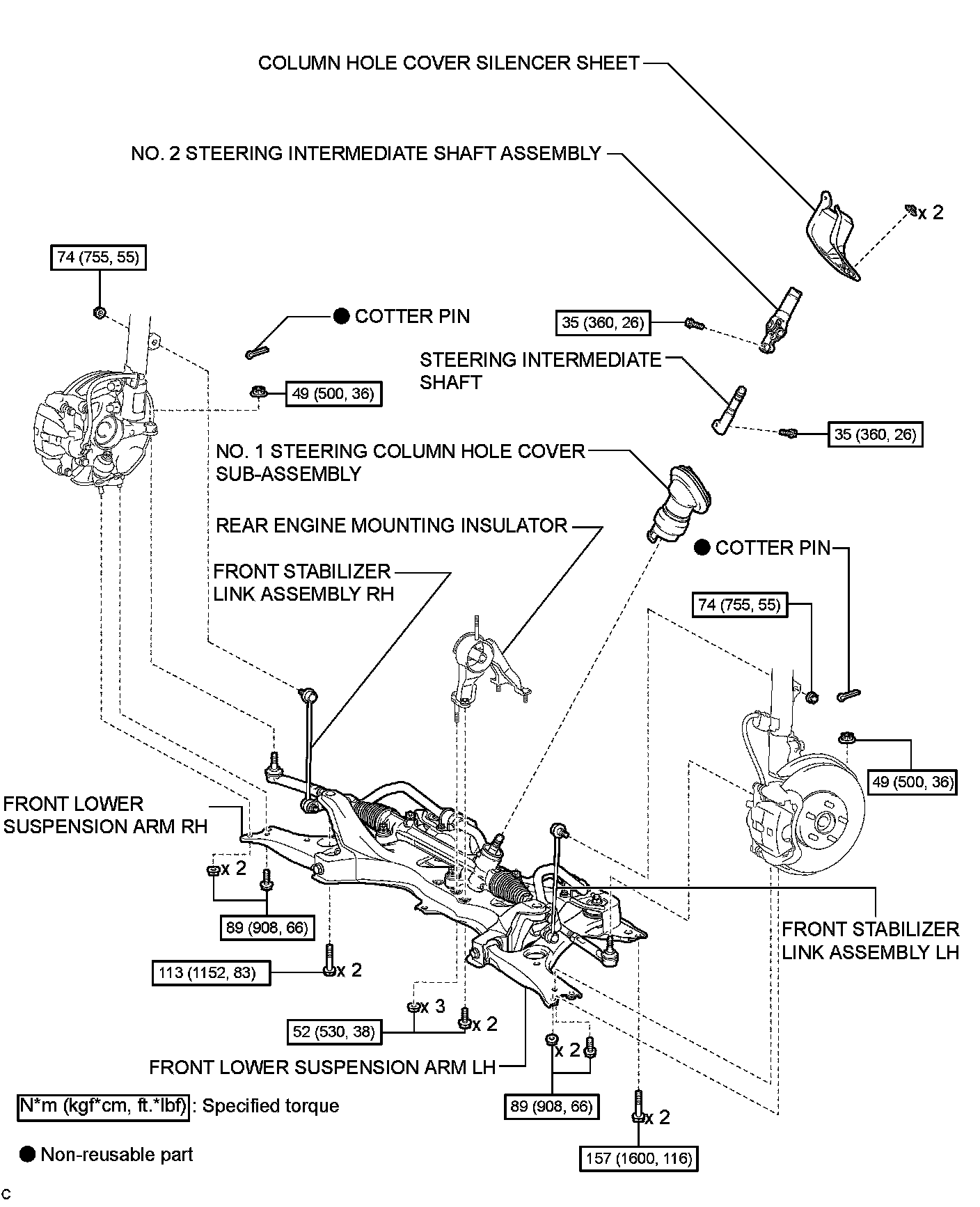

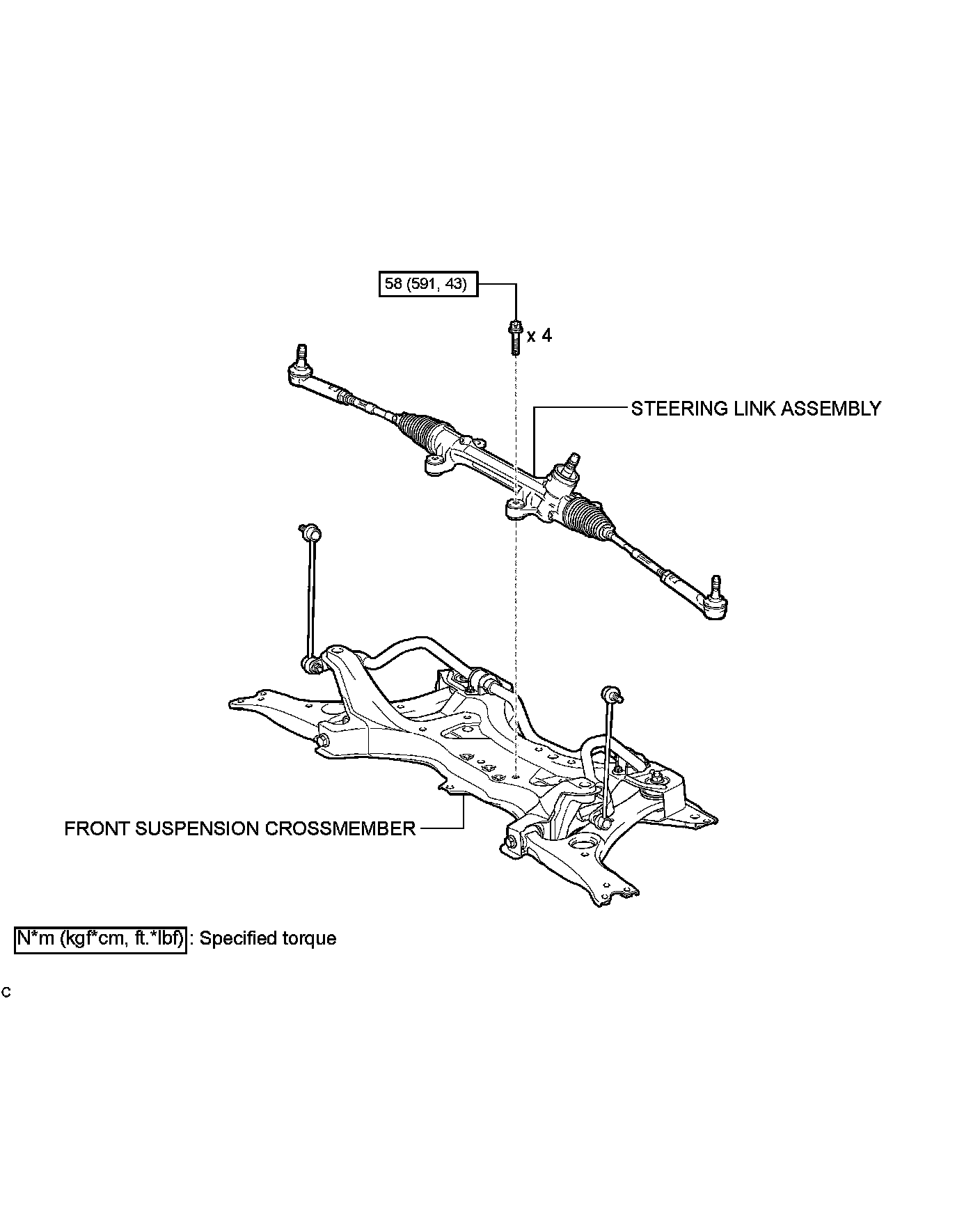

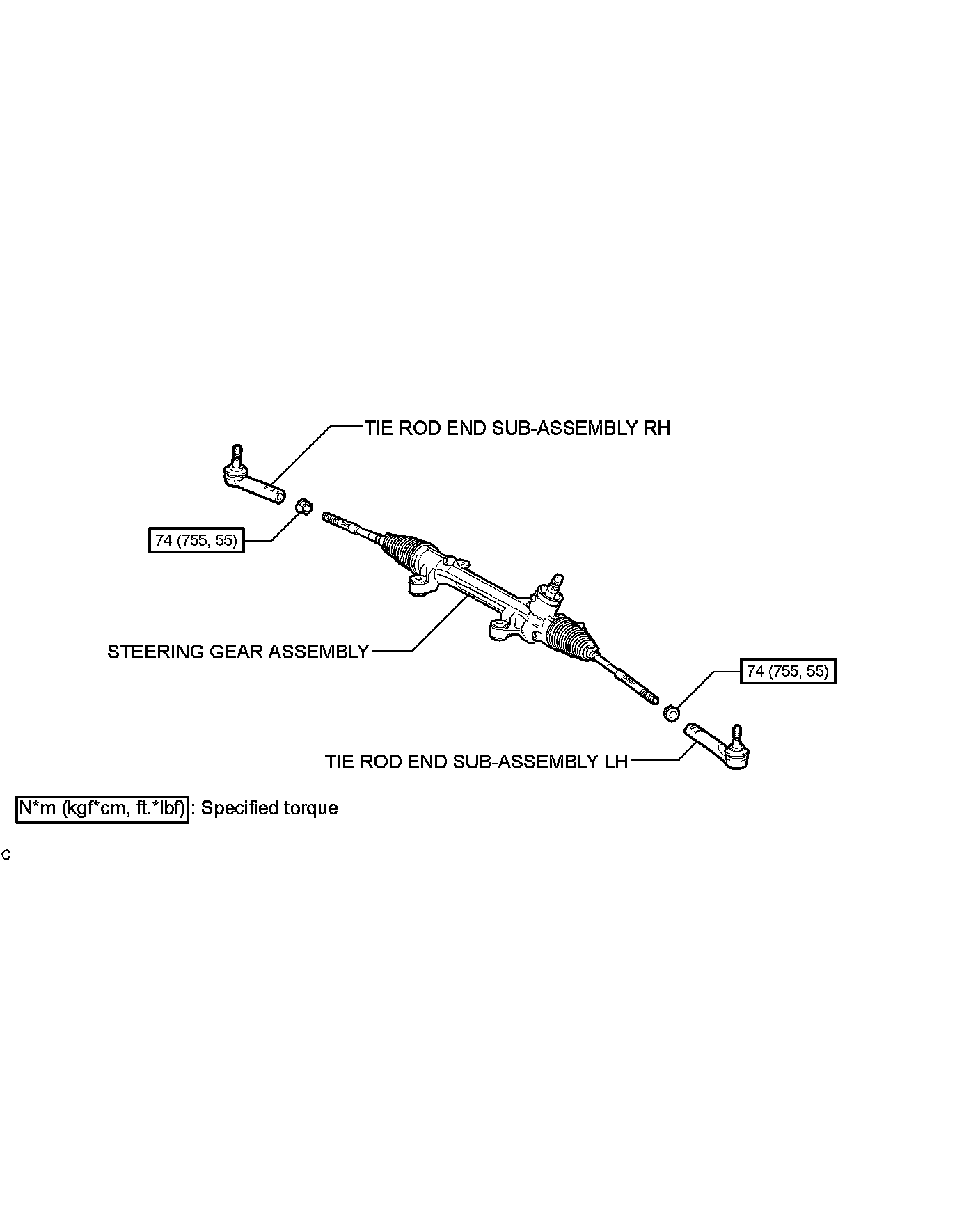

ILLUSTRATION
