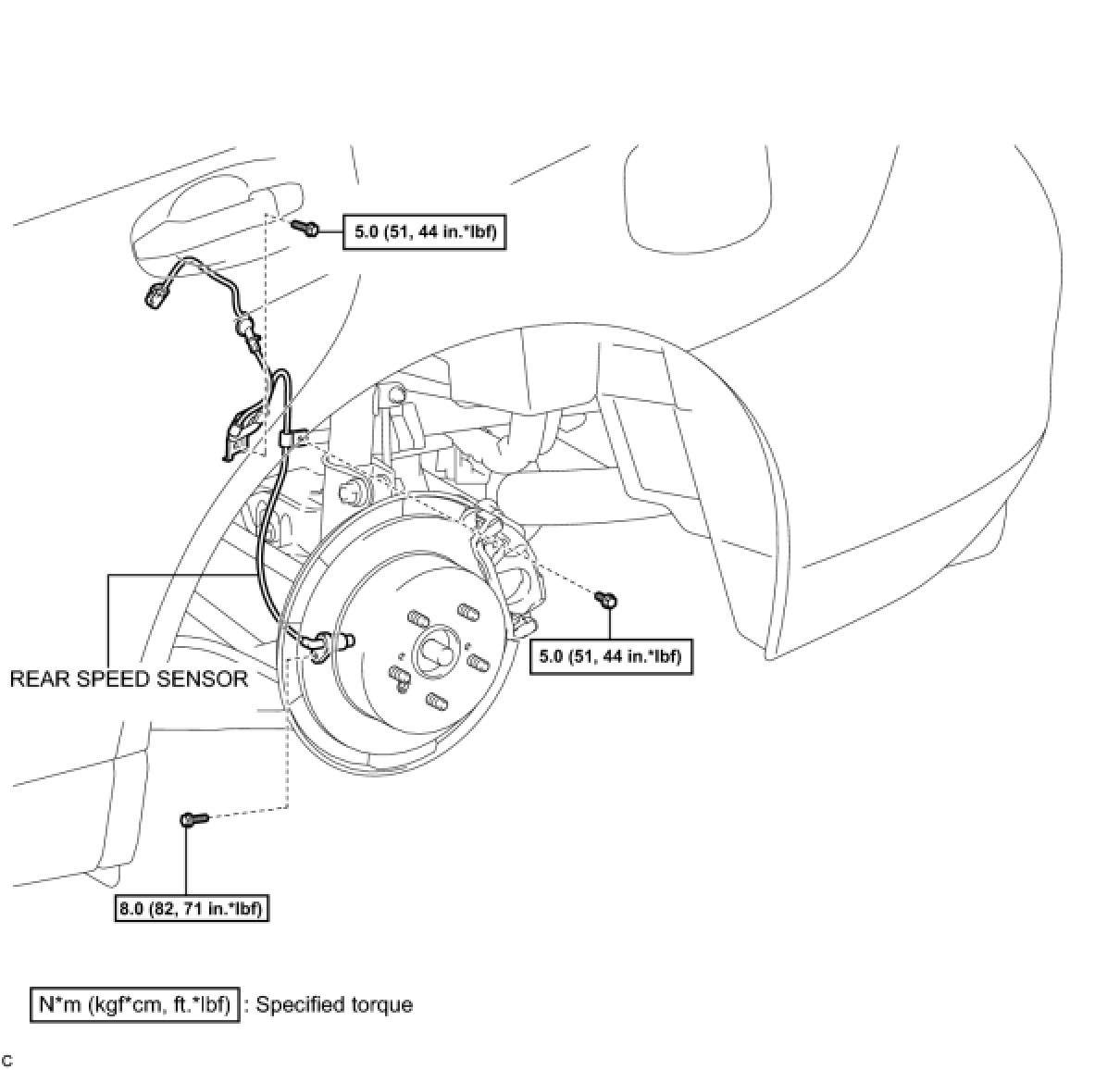

BRAKE CONTROL / DYNAMIC CONTROL SYSTEMS: REAR SPEED SENSOR (for AWD): COMPONENTS
COMPONENTS
ILLUSTRATION
