Manual Transmission/Transaxle: Locations

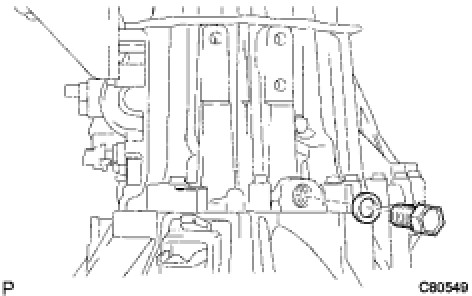

MANUAL TRANSMISSION FILLER PLUG

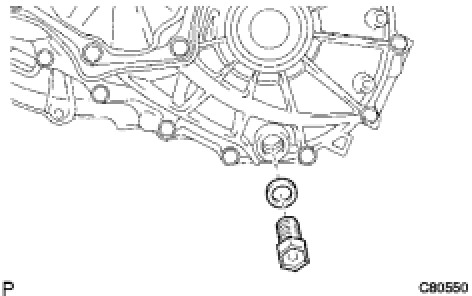

MANUAL TRANSMISSION DRAIN PLUG
