Drive Belt: Testing and Inspection

1NZ-FE ENGINE MECHANICAL: DRIVE BELT: INSPECTION

1. INSPECT FAN & GENERATOR V BELT

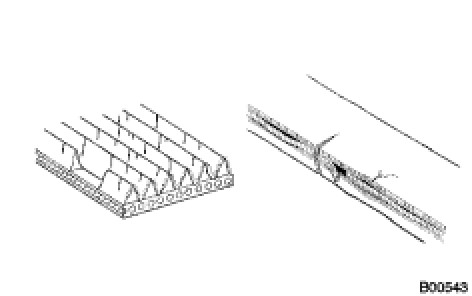

(a) Visually check the belt for excessive wear, frayed cords etc. If any defects are found, replace the belt.

HINT
* If any defects are found, replace the belt.
* Cracks on the rib side of a belt are considered acceptable. If the belt has pieces missing from the ribs, it should be replaced.
