Installation

U340E AUTOMATIC TRANSAXLE: TRANSMISSION REVOLUTION SENSOR: INSTALLATION

1. INSTALL TRANSMISSION REVOLUTION SENSOR

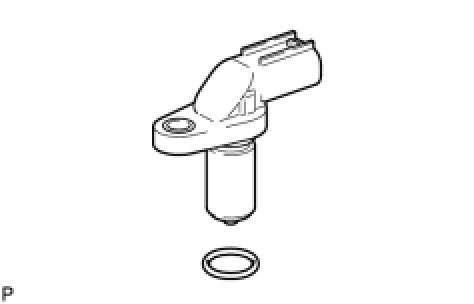

(a) Coat a new O-ring with Toyota Genuine ATF WS or equivalent, and install it onto the transmission revolution sensor.

(b) Install the transmission revolution sensor with the bolt.





Torque : 5.4 Nm (55 kgf-cm, 48 in-lbf)

(c) Connect the transmission revolution sensor connector.

2. INSTALL BATTERY CARRIER Installation

3. INSTALL BATTERY TRAY

4. INSTALL BATTERY Installation
