U340E AUTOMATIC TRANSAXLE: SPEED SENSOR: INSTALLATION

1. INSTALL SPEEDOMETER DRIVEN GEAR

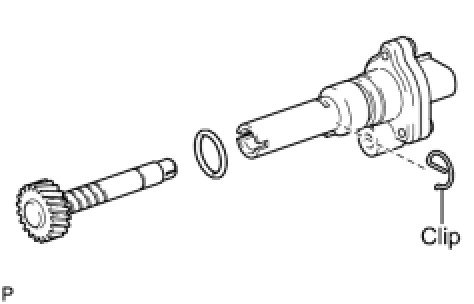

(a) Coat a new O-ring with Toyota Genuine ATF WS or equivalent and install it onto the speedometer sensor.

(b) Install the driven gear into the speedometer sensor with the clip.

2. INSTALL SPEEDOMETER SENSOR

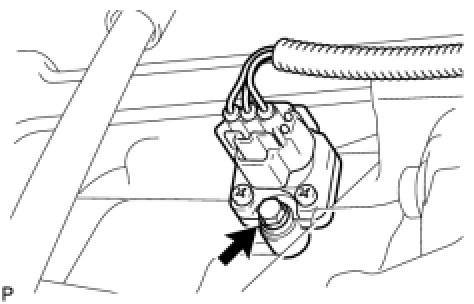

(a) Install the speedometer sensor with the bolt.

Torque : 7.0 Nm (71 kgf-cm, 62 in-lbf)

(b) Connect the speedometer sensor connector.

3. INSTALL BATTERY CARRIER Installation

4. INSTALL BATTERY TRAY

5. INSTALL BATTERY Installation

6. INSTALL OUTER COWL TOP PANEL

Hatchback: Installation

Sedan: Installation

7. INSTALL COWL TO REGISTER DUCT SUB-ASSEMBLY (for Hatchback) Installation

8. INSTALL FRONT AIR SHUTTER SEAL (for Sedan) Installation

9. INSTALL FRONT WIPER MOTOR AND LINK

Hatchback: Installation

Sedan: Installation

10. INSTALL COWL TOP VENTILATOR LOUVER LH (for Hatchback) Installation

11. INSTALL COWL TOP VENTILATOR LOUVER SUB-ASSEMBLY

Hatchback: Installation

Sedan: Installation

12. INSTALL HOOD TO COWL TOP SEAL (for Hatchback) Installation

13. INSTALL COWL SIDE VENTILATOR SUB-ASSEMBLY LH (for Sedan) Installation

14. INSTALL COWL SIDE VENTILATOR SUB-ASSEMBLY RH (for Sedan) Installation

15. INSTALL FRONT WIPER ARM AND BLADE ASSEMBLY LH

Hatchback: Installation

Sedan: Installation

16. INSTALL FRONT WIPER ARM AND BLADE ASSEMBLY RH

Hatchback: Installation

Sedan: Installation

17. INSTALL FRONT WIPER ARM HEAD CAP

Hatchback: Installation

Sedan: Installation
