Fluid Pan, A/T

AUTOMATIC TRANSAXLE OIL PAN SUB-ASSEMBLY

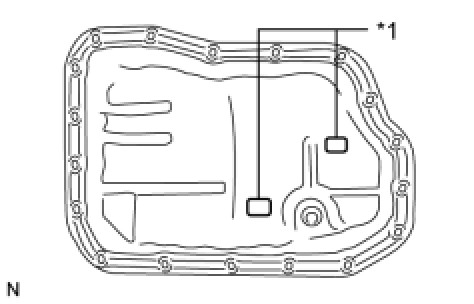

Text in Illustration

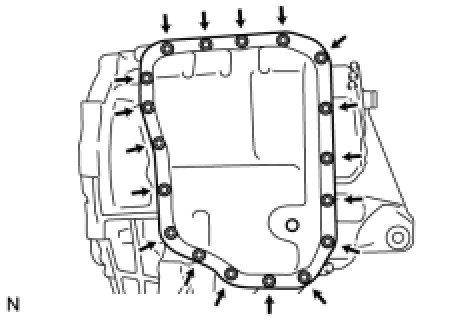

Install the automatic transaxle oil pan sub-assembly and a new gasket to the transaxle case with the 18 bolts.






Torque 7.0 Nm (71 kgf-cm, 62 in-lbf)
