Installation

BRAKE CONTROL / DYNAMIC CONTROL SYSTEMS: FRONT SPEED SENSOR: INSTALLATION

HINT
* Use the same procedure for the LH side and RH side.
* The following procedure is for the LH side.
* If the sensor rotor needs to be replaced, replace the front drive outboard joint shaft assembly.

1. INSTALL FRONT SPEED SENSOR

(a) Install the front speed sensor to the steering knuckle with the bolt.

Torque : 8.5 Nm (87 kgf-cm, 75 in-lbf)

NOTICE:
* Prevent foreign matter from attaching to the front speed sensor tip.
* Firmly insert the front speed sensor body into the steering knuckle before tightening the bolt.
* After installing the front speed sensor to the steering knuckle, make sure that there is no clearance between the front speed sensor stay and steering knuckle. Also make sure that no foreign matter is stuck between the parts.

(b) Install the front speed sensor clamp and front flexible hose to the shock absorber bracket with the bolt.

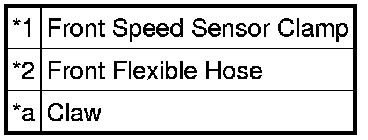

Text in Illustration





Torque : 19 Nm (192 kgf-cm, 14 ft-lbf)

NOTICE:
* Do not twist the wire harness for the front speed sensor when installing it.
* Securely set the 2 claws of the front speed sensor clamp to the shock absorber bracket.
* A bolt tightens the brake flexible hose and front speed sensor together. Make sure that the front flexible hose is positioned over the front speed sensor.

(c) Engage the clamp to the front shock absorber.

(d) Install the speed sensor clamp to the body with the bolt.





Text in Illustration





Torque : 8.5 Nm (87 kgf-cm, 75 in-lbf)

NOTICE:
* Do not twist the wire harness for the front speed sensor when installing it.
* Securely set the claw of the front speed sensor clamp to the body.

(e) Engage the clamp and connect the connector.

2. INSTALL FRONT FENDER LINER

HINT
Use the same procedure for the LH side and RH side Installation.

3. INSTALL FRONT WHEEL

Torque : 103 Nm (1049 kgf-cm, 76 ft-lbf)

4. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

NOTICE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.

5. CHECK FOR SPEED SENSOR SIGNAL

Test Mode Procedure
