64-65 - Fusible Link Block Assembly - Left Engine Compartment

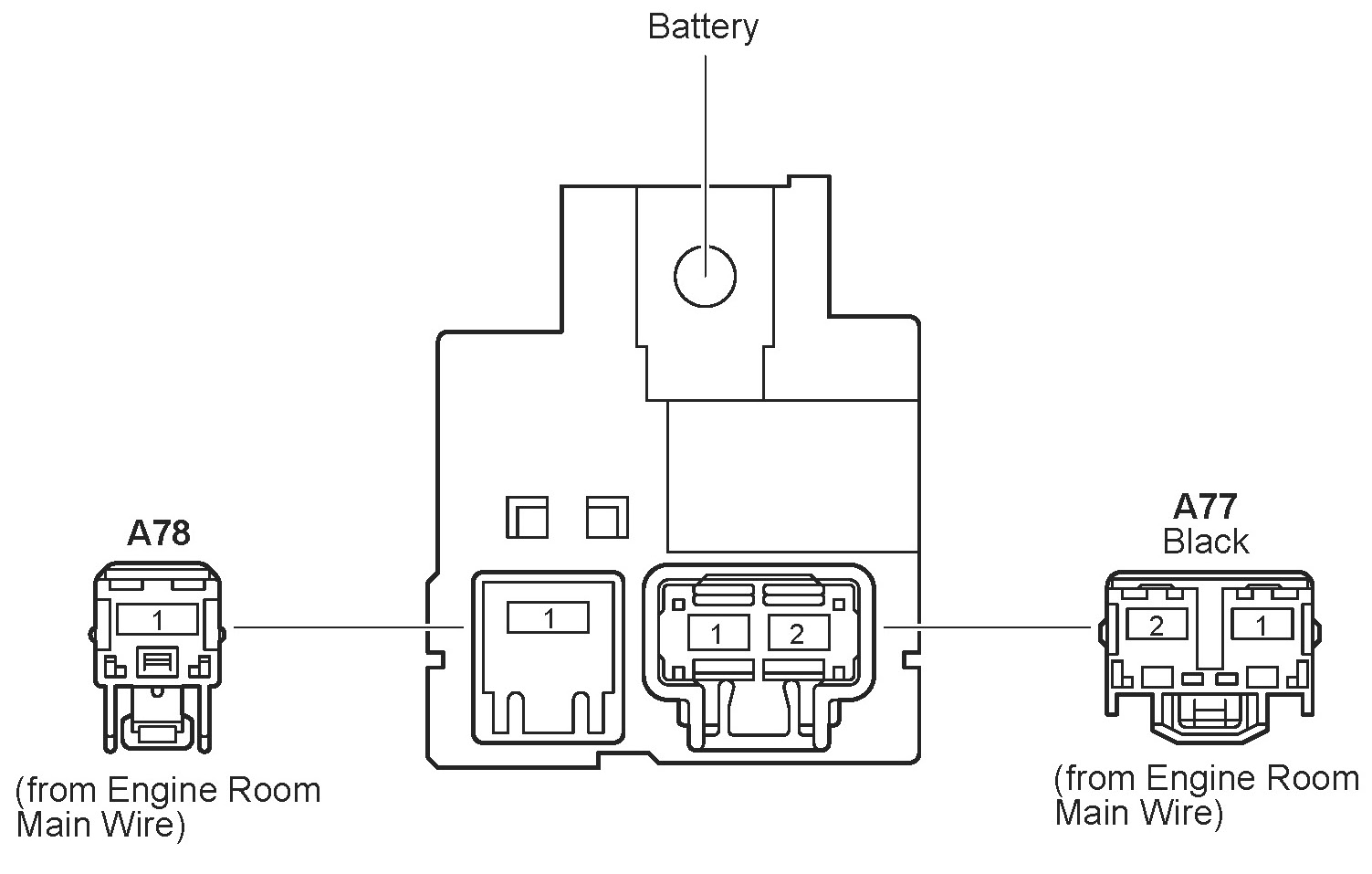

64 - Fusible Link Block Assembly - Left Engine Compartment:

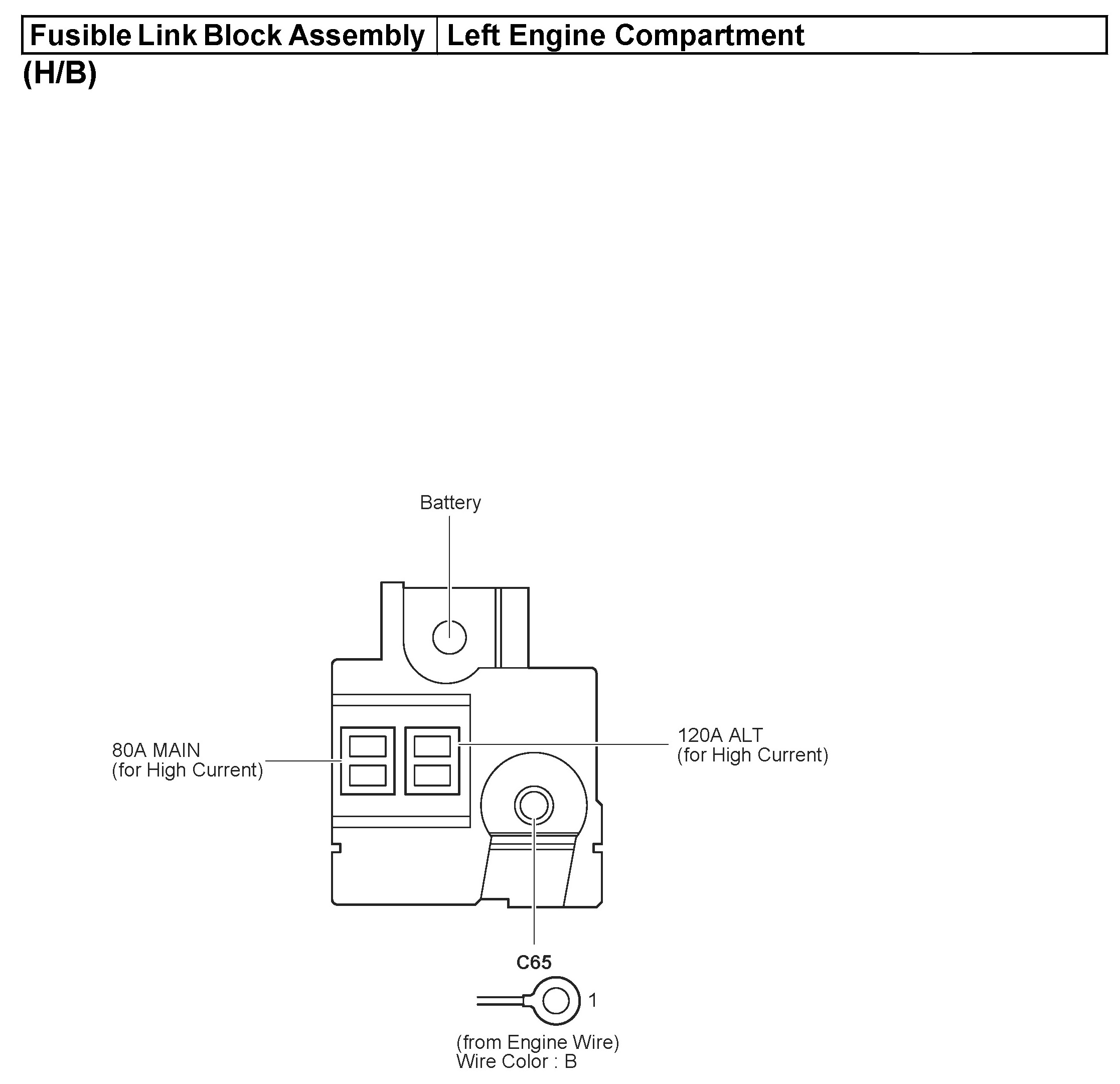

65 - Fusible Link Block Assembly - Left Engine Compartment:
