Components (from 07/2011)

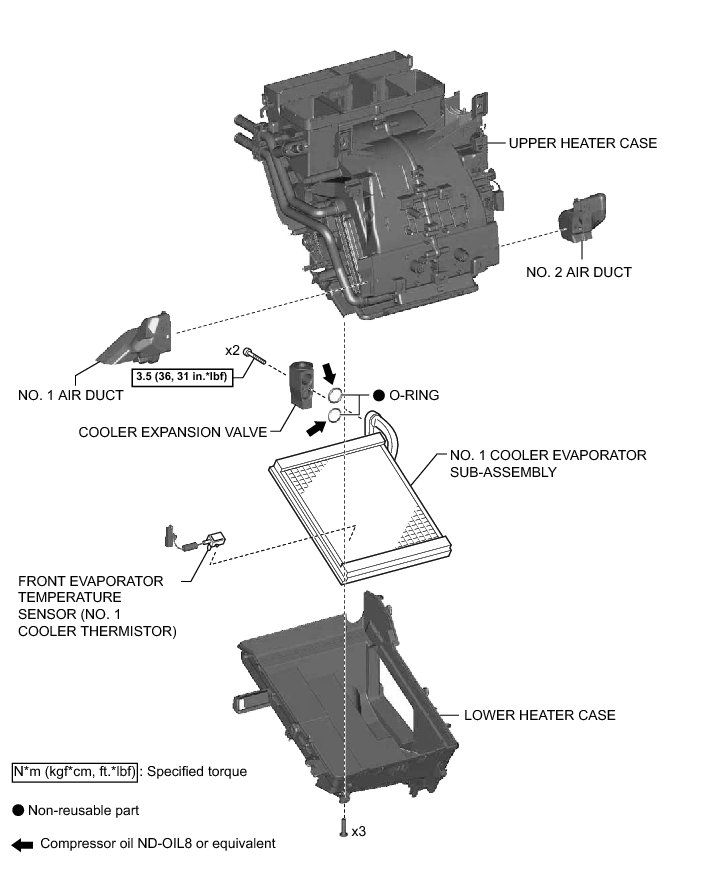

HEATING / AIR CONDITIONING: FRONT EVAPORATOR TEMPERATURE SENSOR (for Hatchback): COMPONENTS
