Yaris Hatchback L4-1.5L (1NZ-FE)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Fuel Delivery and Air Induction
>>
Specifications
>>
Electrical Specifications
Electrical Specifications

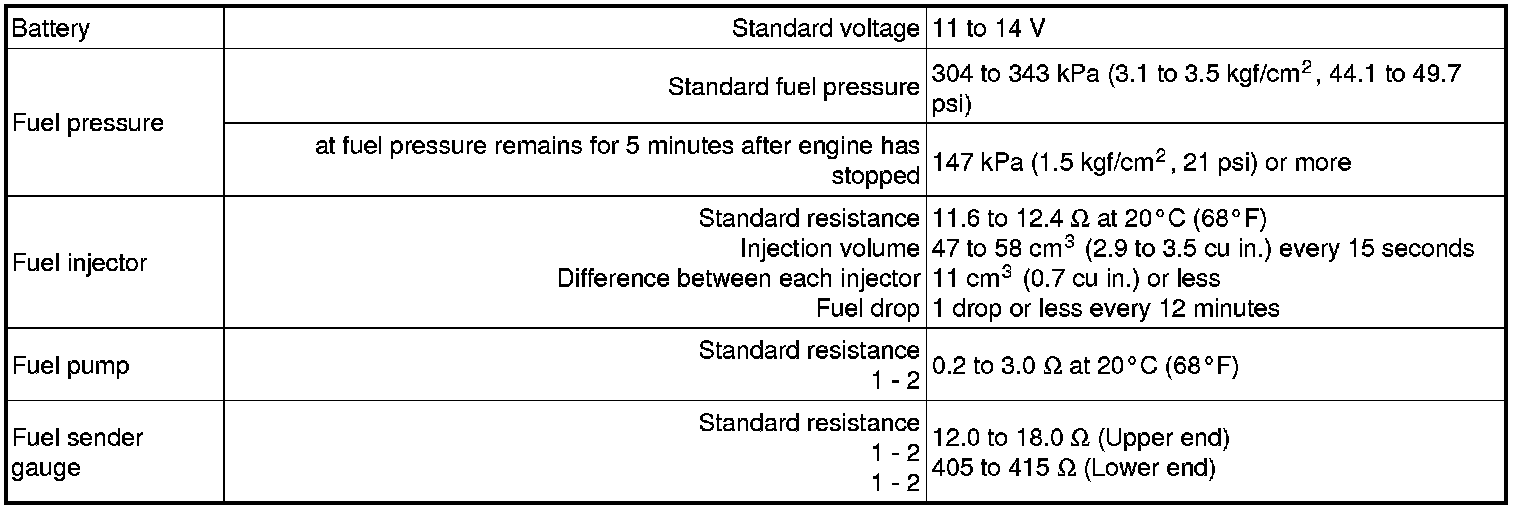

SPECIFICATIONS: 1NZ-FE FUEL (for Hatchback): SERVICE DATA
