Components (from 07/2011)

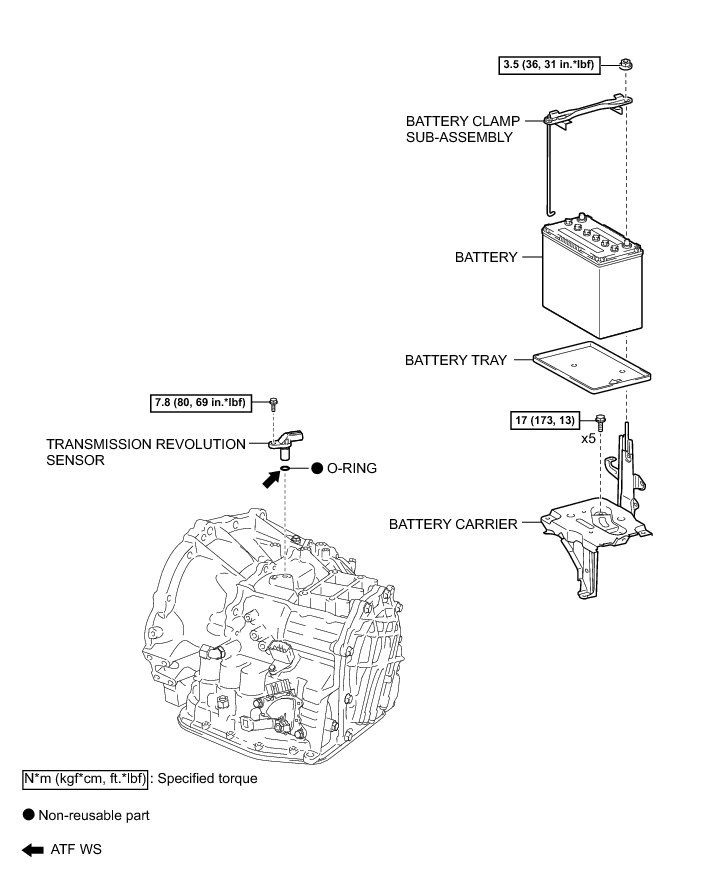

U340E AUTOMATIC TRANSMISSION / TRANSAXLE: SPEED SENSOR (for Hatchback): COMPONENTS
