Components (from 07/2011)

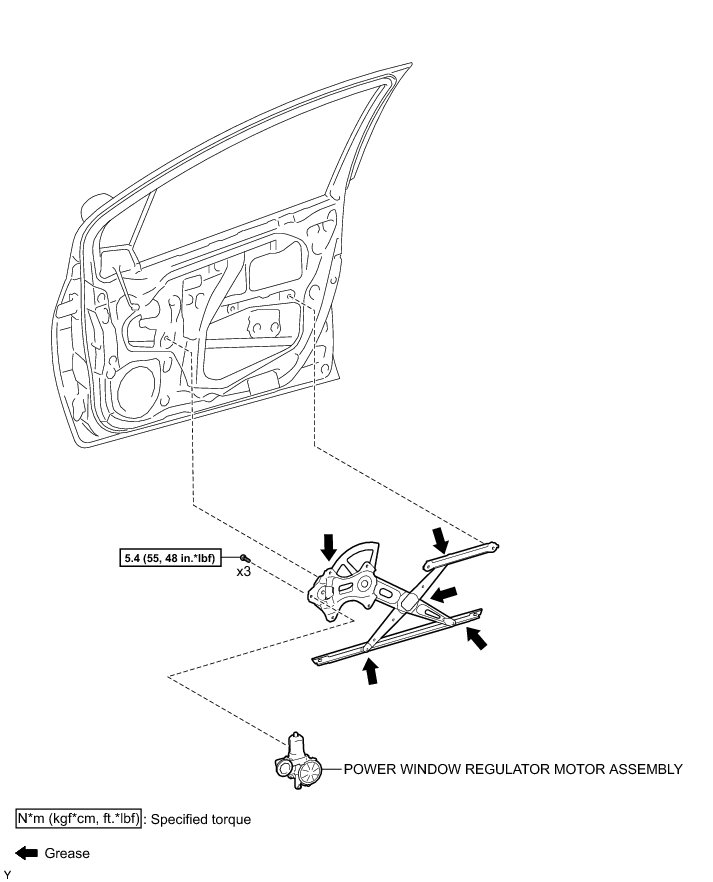

WINDOW / GLASS: POWER WINDOW REGULATOR MOTOR (for Hatchback Front Door): COMPONENTS
