Home >> Toyota >> 2012 >> Yaris Hatchback L4-1.5L (1NZ-FE) >> Repair and Diagnosis >> Windows and Glass >> Windows >> Window Regulator >> Rear Door Window Regulator >> Service and Repair >> Components (from 07/2011)

Components (from 07/2011)

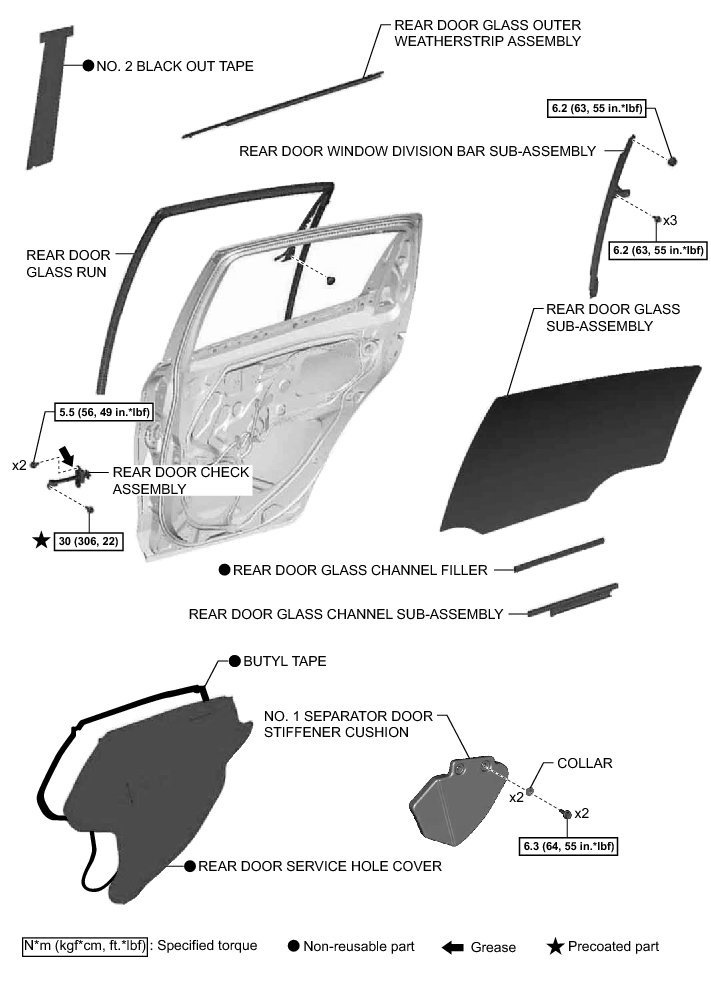

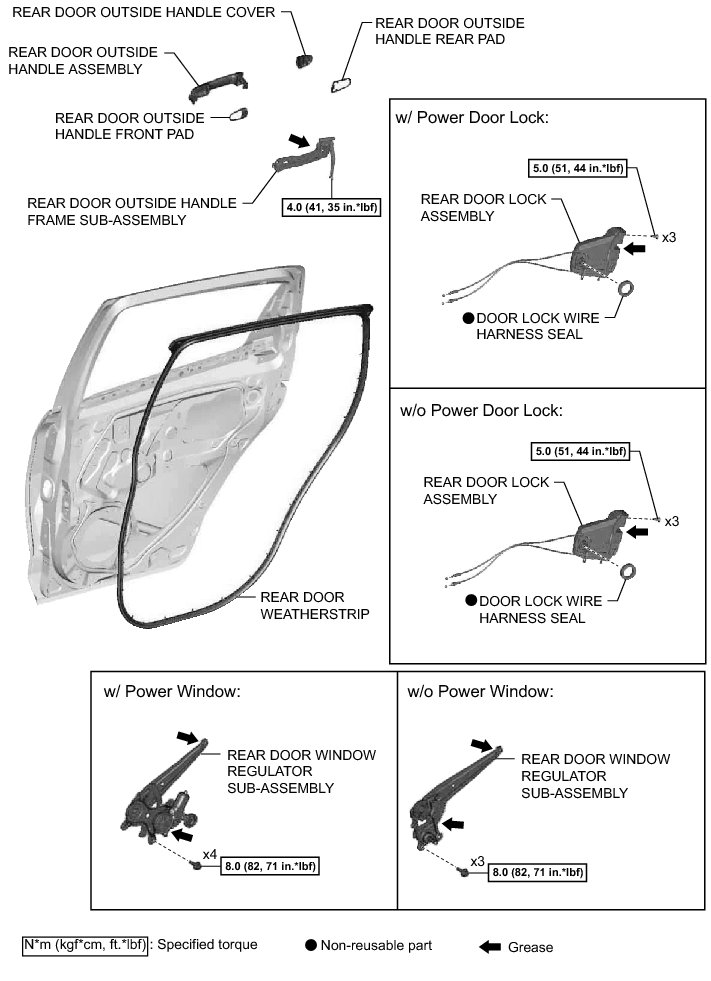

DOOR / HATCH: REAR DOOR (for Hatchback): COMPONENTS
