Ignition System
Ignition System

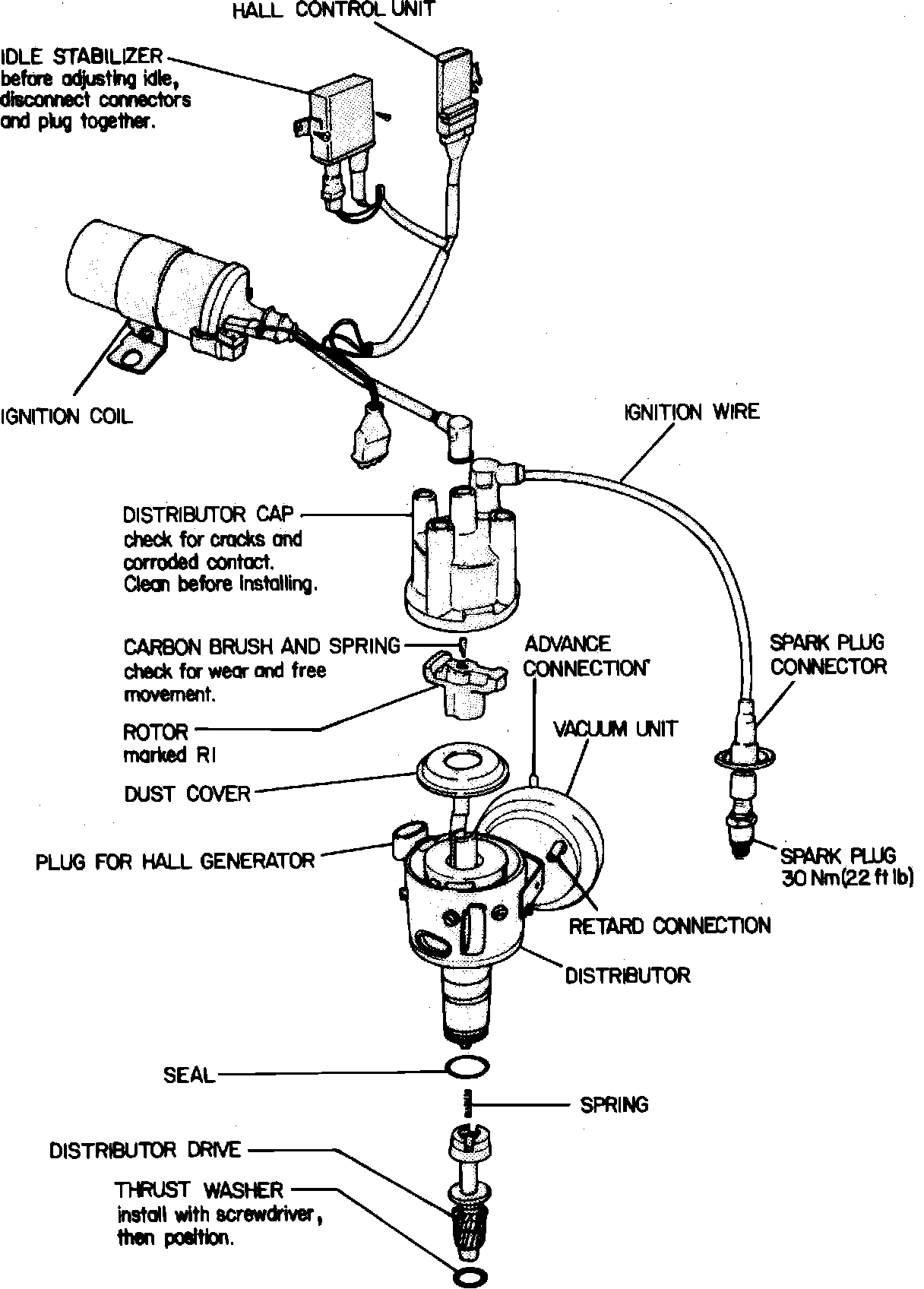

Fig. 1 Exploded view of breakerless distributor assembly w/Hall type ignition system:
