Volkswagen Truck
>>
1982
>>
Vanagon F4-1970cc 2.0L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Testing and Inspection
>>
System Component Layout
System Component Layout

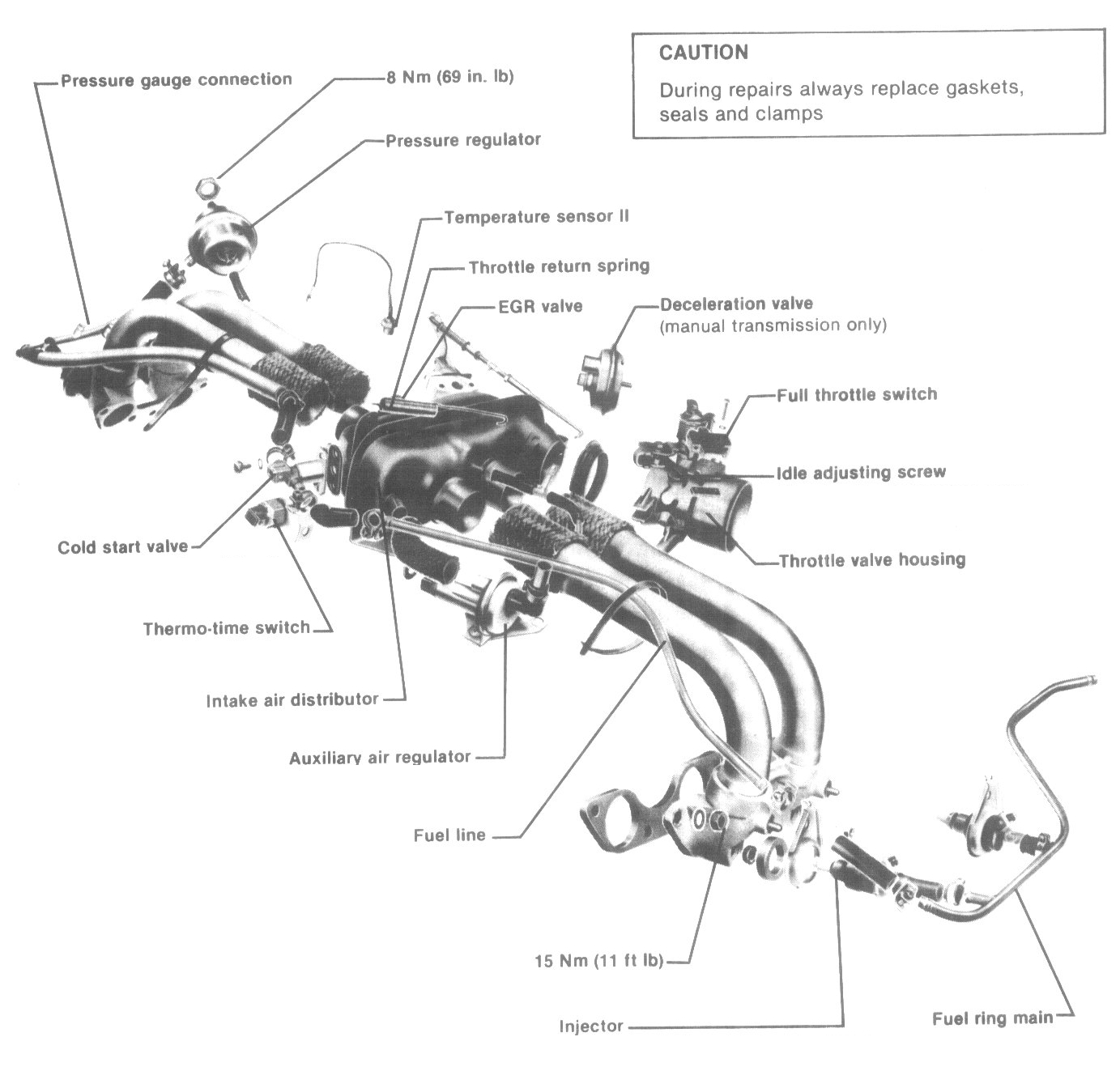

Engine Mounted Components:

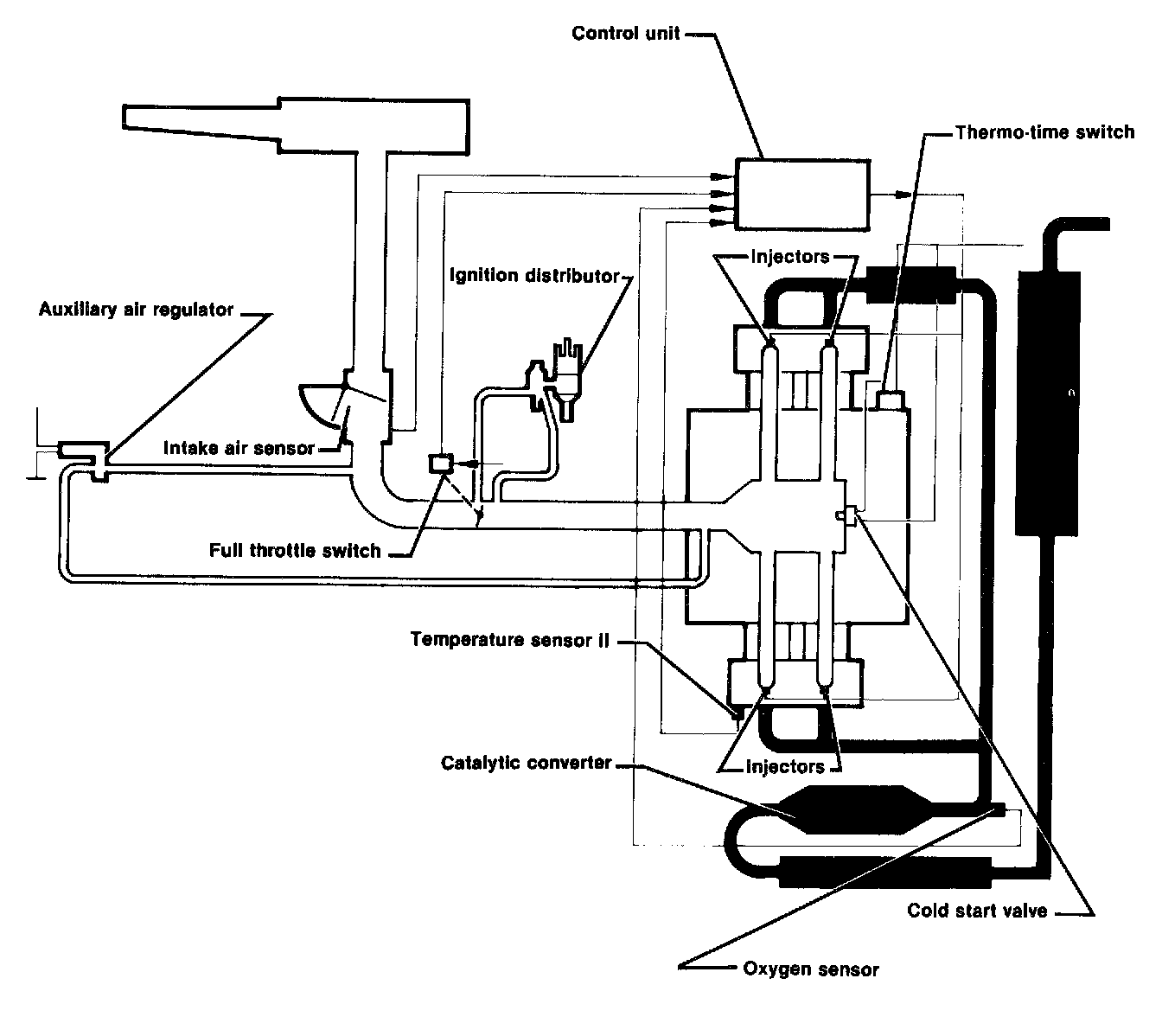

Canada And USA Except California:

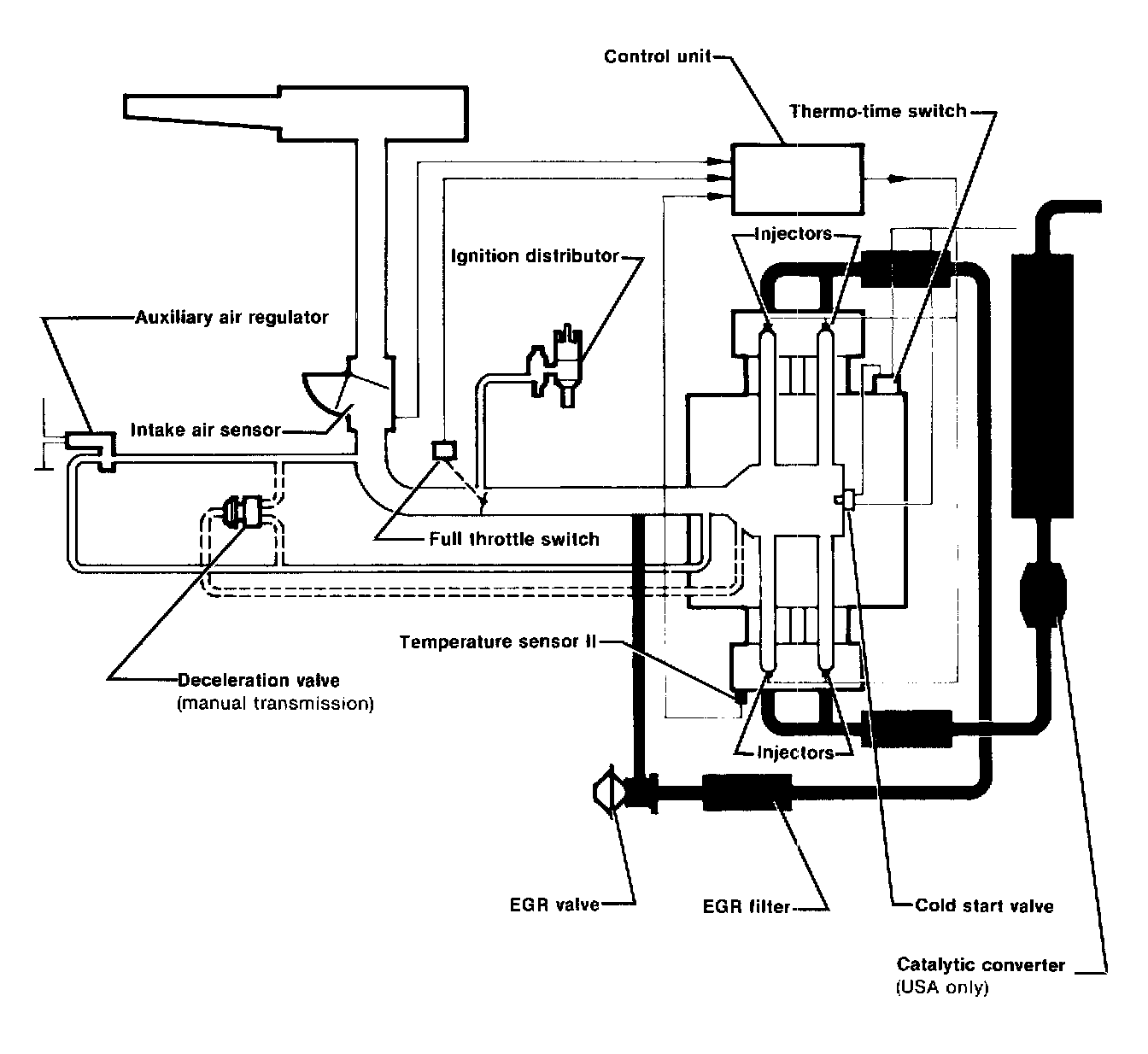

California Only:
