Part 1

Part I

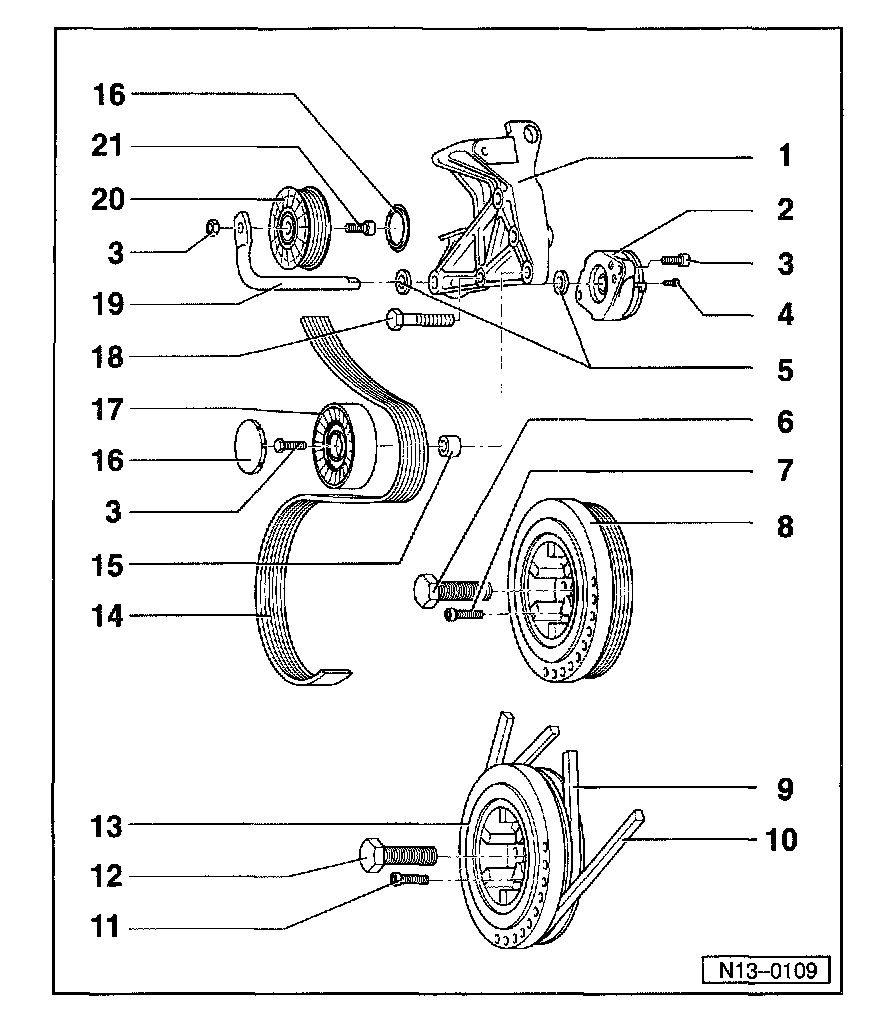

Legend:



3 - 20 Nm (15 ft.lbs)


4 - 10 Nm (7 ft. lbs.)


6 - 160 Nm (118 ft. lbs.) + 1/2 turn (180°) additional

- Replace bolt


7 - 20 Nm (15 ft. lbs.) + 1/4 turn (90°)


11 - 20 Nm (15 ft. lbs.)


12 - 460 Nm (339 ft. lbs.)


18 - 40 Nm (30 ft. lbs.)
