Diagrams
>>
(All Except Canada)
(All Except Canada)

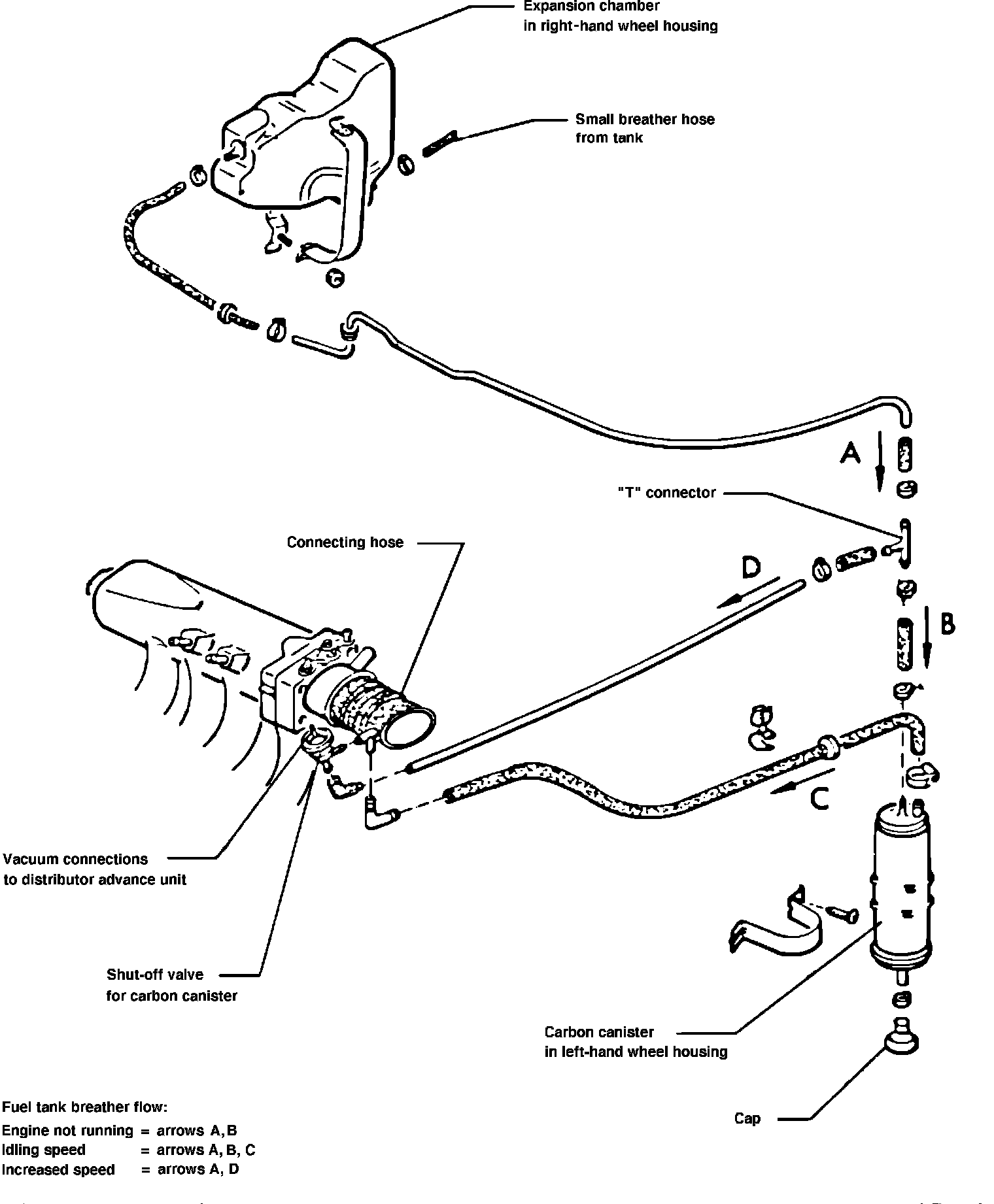

Fig. 20 Charcoal Canister Component Layout, Scirocco/Cabriolet:
