Home >> Volkswagen >> 1985 >> Quantum L4-1781cc 1.8L SOHC >> Repair and Diagnosis >> Starting and Charging >> Starting System >> Ignition Switch >> Diagrams >> Electrical Diagrams

Electrical Diagrams

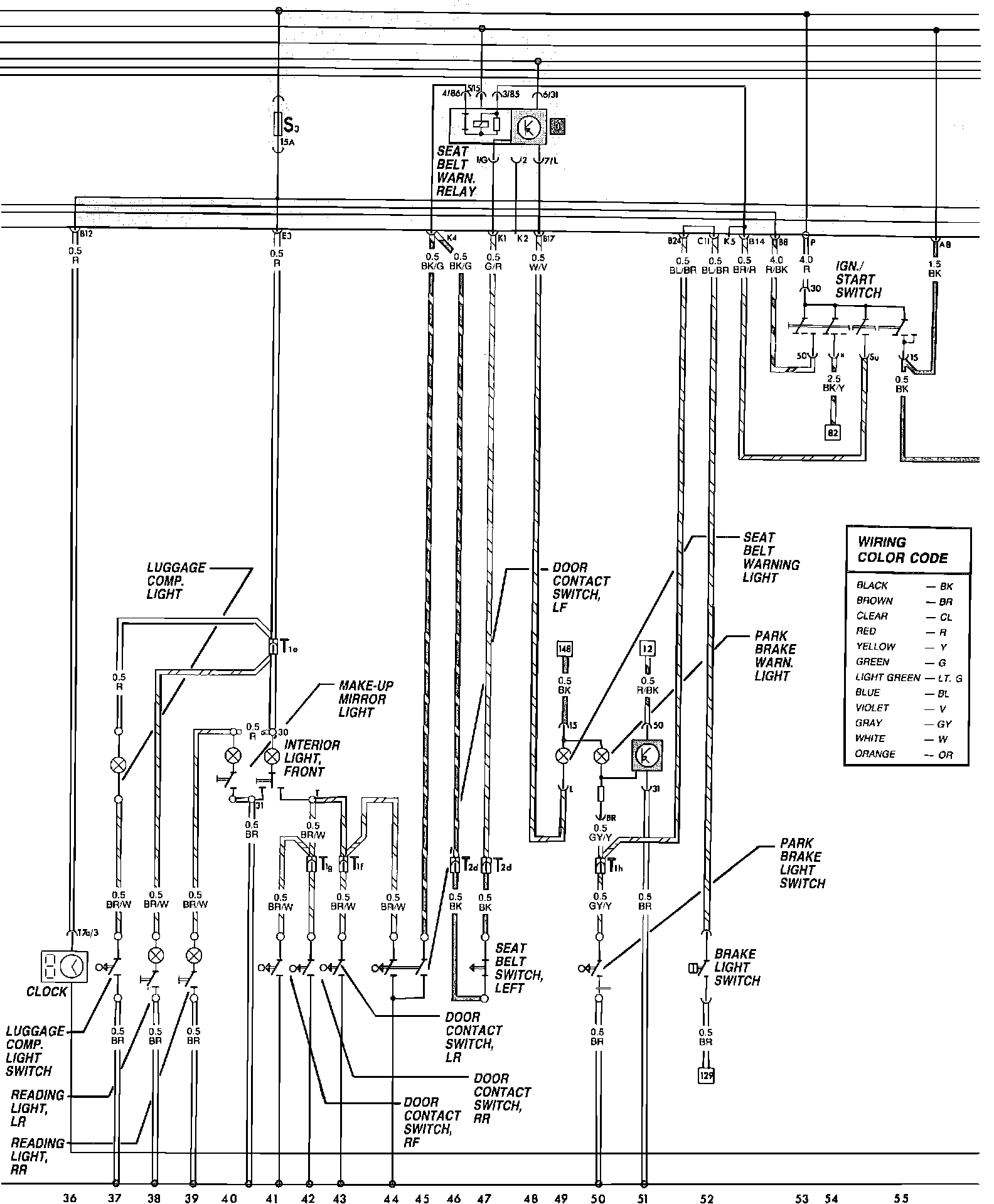

Fig. 10c Brake, Seat Belt Warning, Clock, Ignition, Starting Switch & Luggage Comparment Light:
