Timing Cover

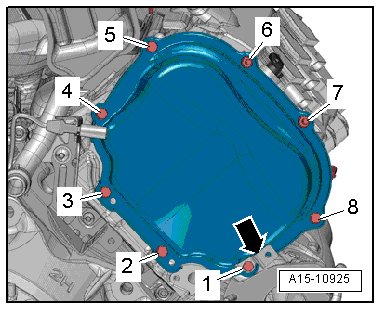

Left Timing Chain Cover Bolt Tightening Sequence and Specification






Replace the bolts which have been tightened to an additional torque angle.

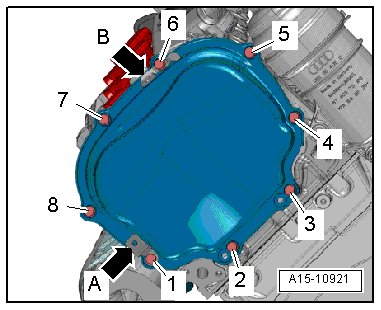

The brackets - arrows A and B - are installed with the left timing chain cover.

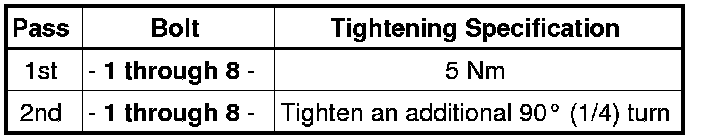

Tighten the bolts in 2 passes in sequence - 1 through 8 -:






Right Timing Chain Cover Bolt Tightening Sequence and Specification






Replace the bolts which have been tightened to an additional torque angle.

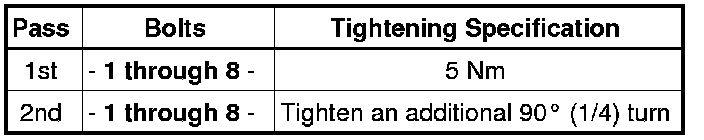

Tighten the bolts in 2 passes in sequence - 1 through 8 -:

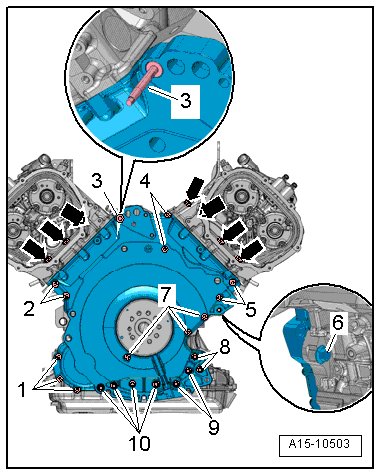

Lower Timing Chain Cover Bolt Tightening Sequence and Specification






Replace the bolts which have been tightened to an additional torque angle.

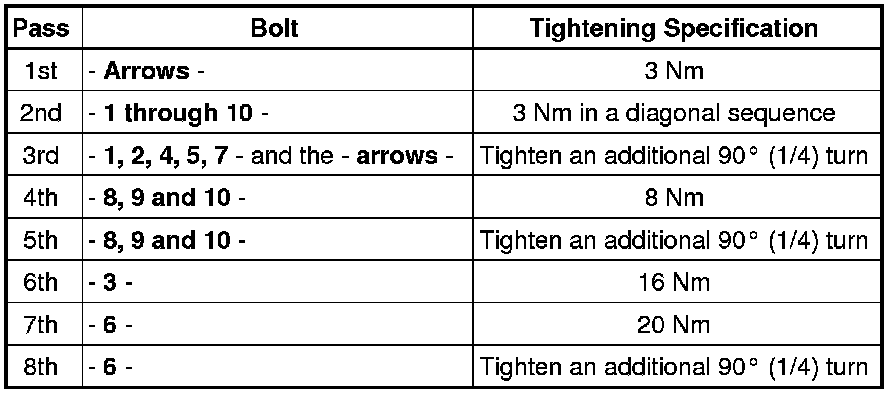

Tighten bolts in 8 passes as follows:
