Heater Blower

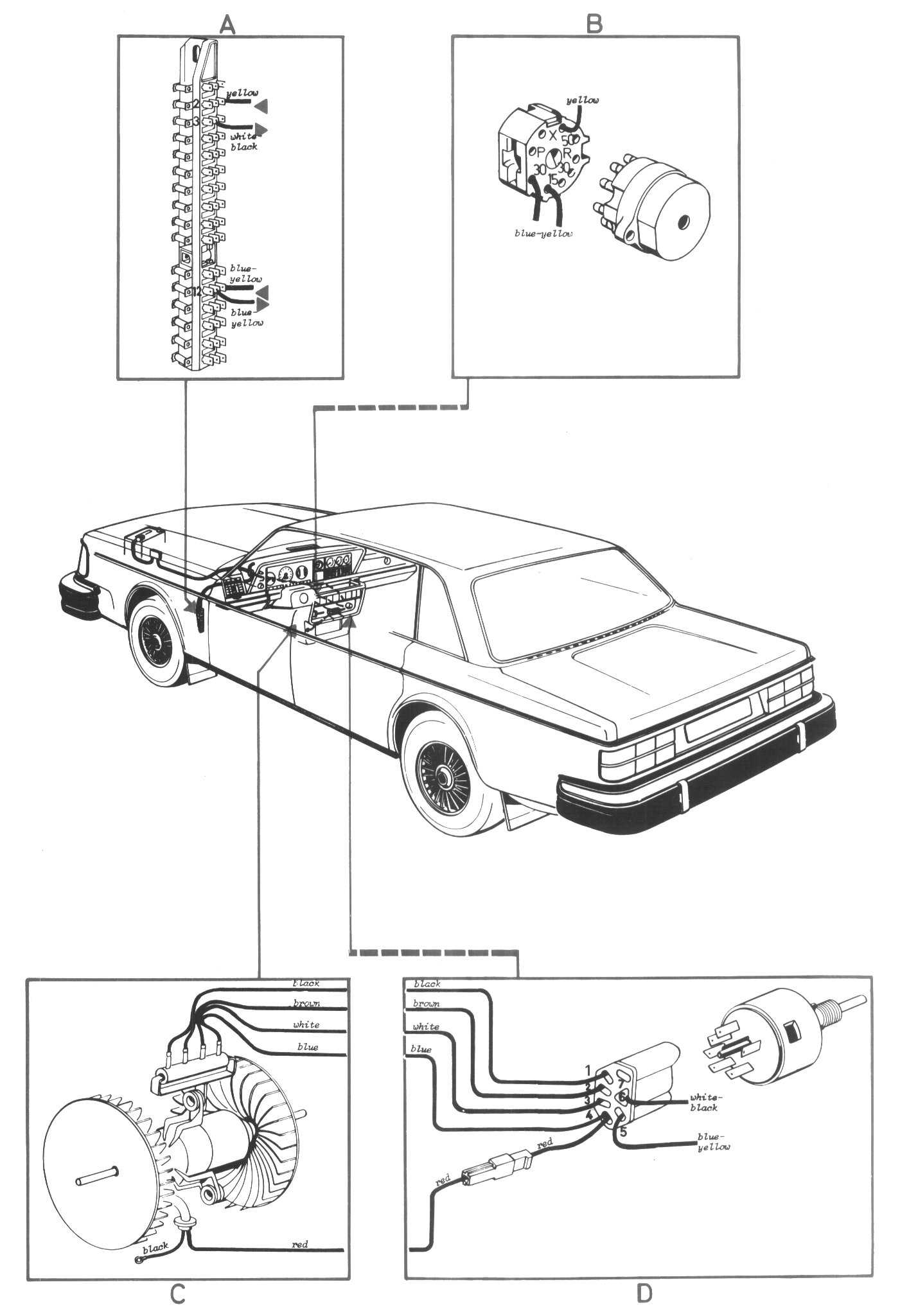

Locations/Connector Views:

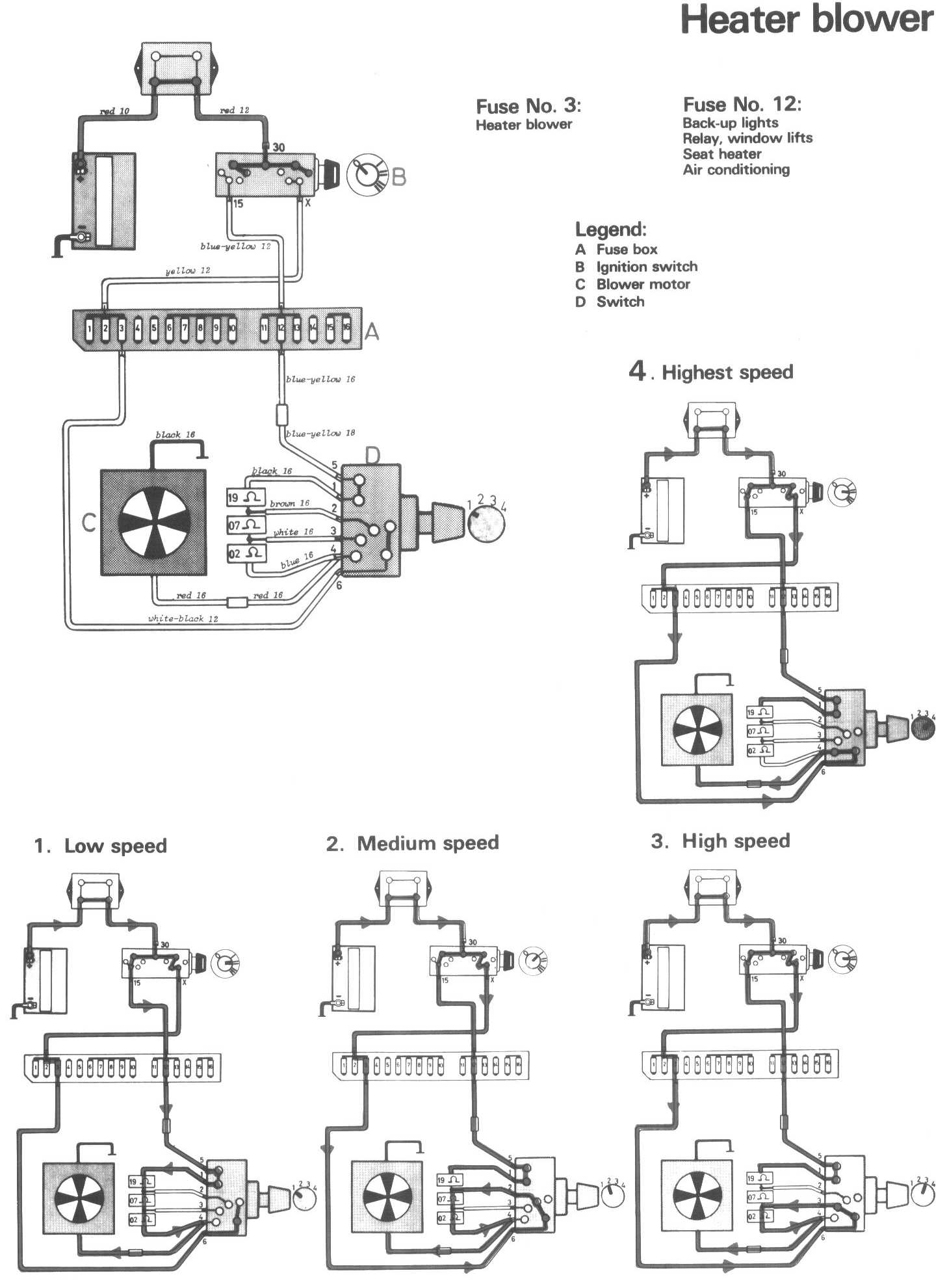

Diagrams:




Legend:
A Fuse box
B Ignition switch
C Blower motor
D Switch
